Antenna Testing Capabilities

In-House RF, Mechanical & Environmental Testing

Validating a new design or checking how an antenna performs with your modem? Our Engineering Technical Center has the RF, mechanical, and environmental testing to verify it against your specifications.

Discuss Testing Needs
Characterization reports with 2D and 3D patterns
Custom testing to your required specifications
Antenna-to-modem performance matching
Third-party certification support

Engineering Technical Center

Electrical, Mechanical, and Environmental Testing

Get Started

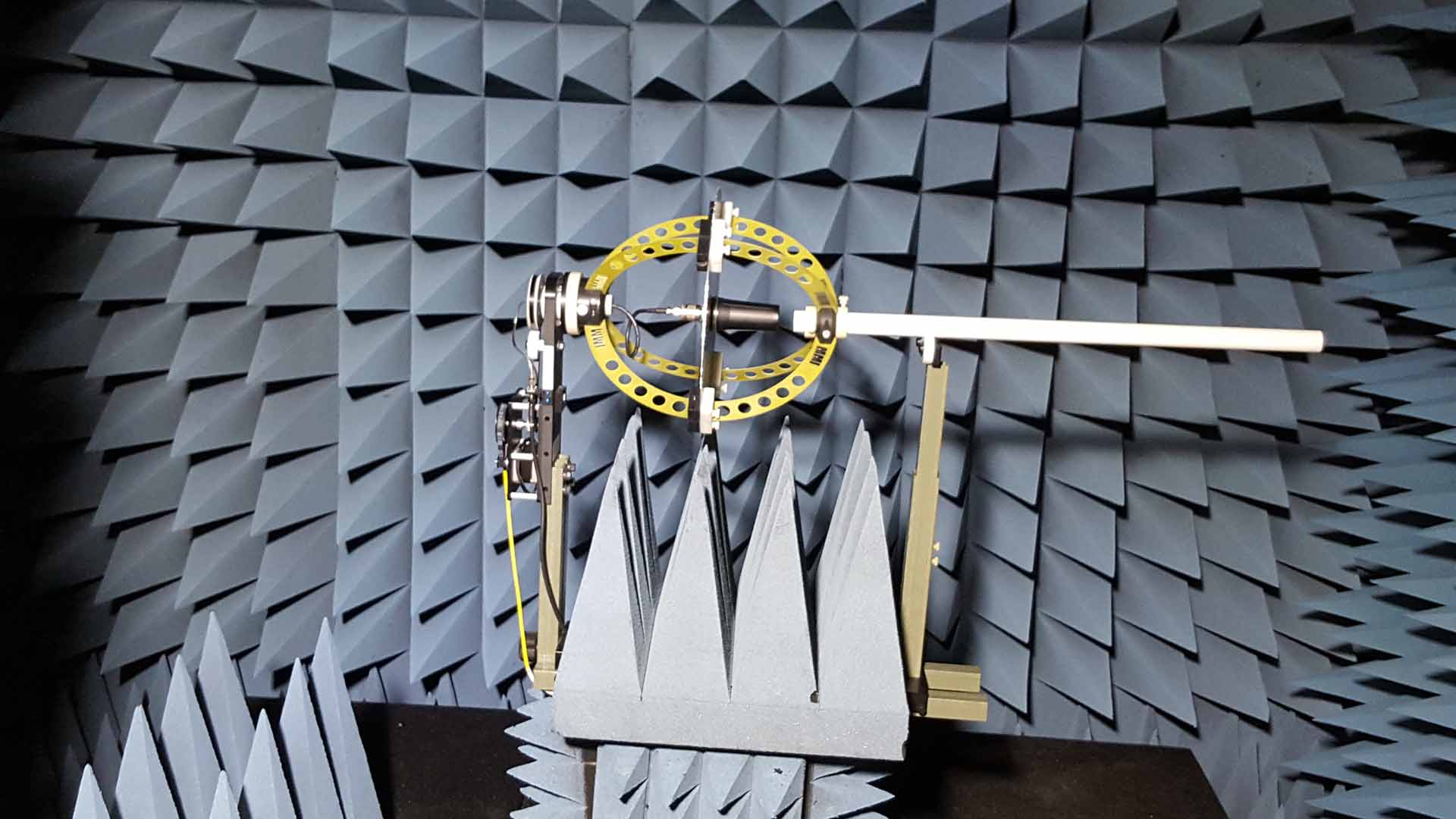

Radiation Patterns and Gain, Measured In-House

Get radiation pattern and gain measurements from 450 MHz to 7.2 GHz, including 2D and 3D elevation and azimuth plots. The chamber’s rotator handles up to 250 lb and antennas up to 6 ft long, with custom fixtures for unusual or oversize designs.

Feature Specification
Frequency 450 MHz–7.2 GHz
Rotator Capacity Up to 250 lb (113.4 kg)
Antenna Length Up to 6 ft (1.83 m)
Fixtures Custom-built for oversized antenna designs

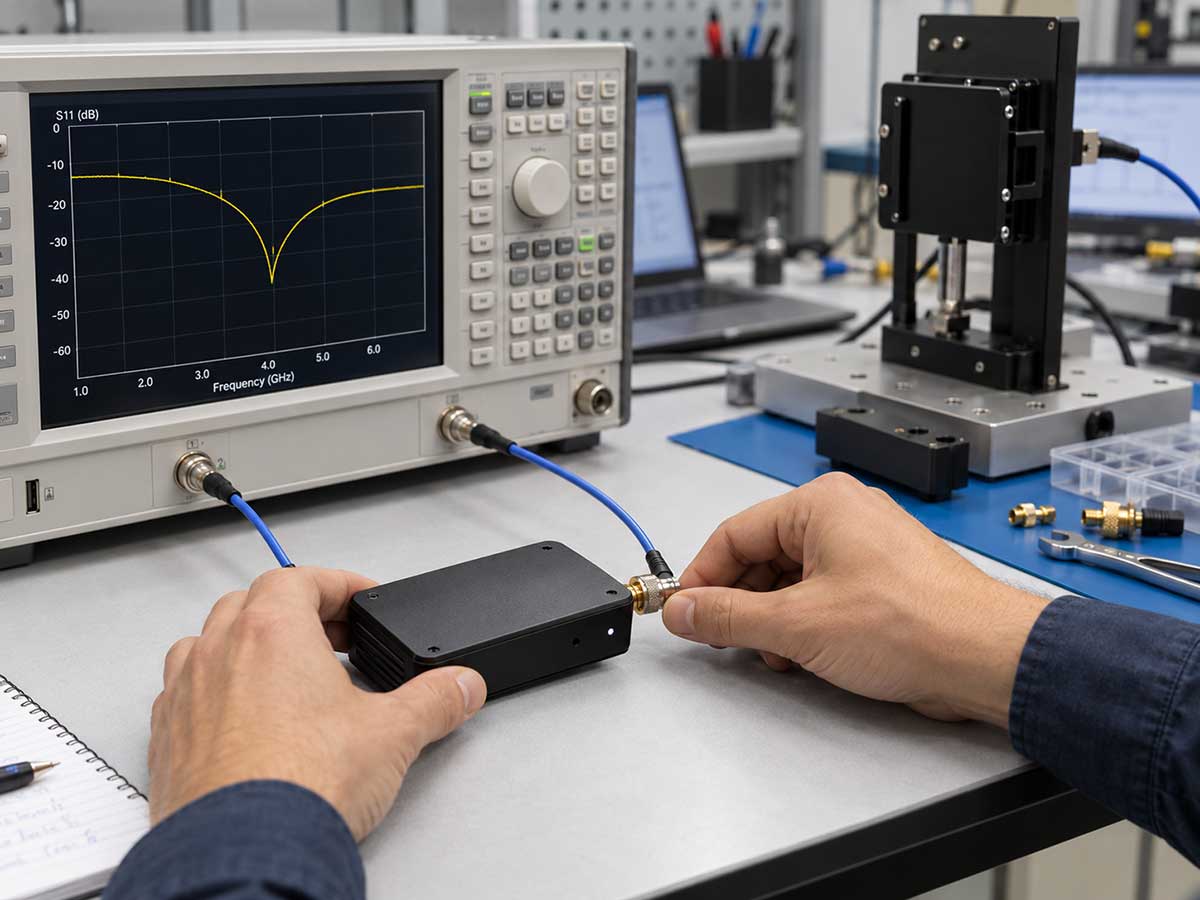

RF & Electrical Testing

Characterization Reports for Your Antenna

Get the documentation your team needs to evaluate a design. Depending on the testing required, characterization reports include:

  • Impedance measurements
  • VSWR and return loss charts
  • Gain-over-frequency plots
  • 2D and 3D radiation patterns

Mechanical & Environmental Testing

Durability Testing for Real-World Conditions

Confirm your antenna can handle its installation before it ships, with in-house shock and vibration, hot and cold cycling, and water, salt fog, and dust ingress testing, including IP67 and IPX7.

Shock & Vibration

Mechanical stress testing

Shock & Vibration

Mechanical stress testing

Water & Dust Ingress

Test dust and water penetration

Salt Fog

Corrosive exposure testing



Get Started

Discuss Your Testing Requirements

Tell us what you need to verify, from radiation performance to environmental durability, and our engineers will help identify the right tests for your project.
