LTMWG 900 Series

Dual Carrier MIMO Multi-Band Antenna

Global 5G/LTE, WiFi 6E & GNSS

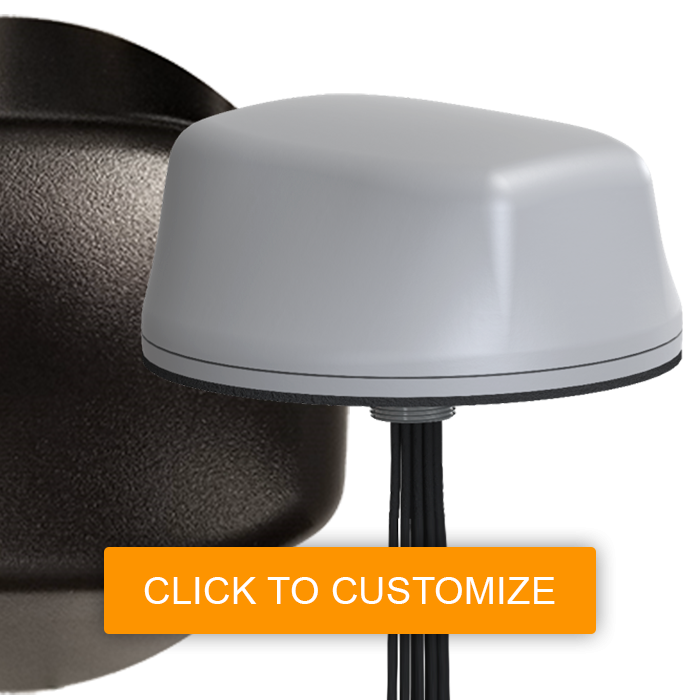

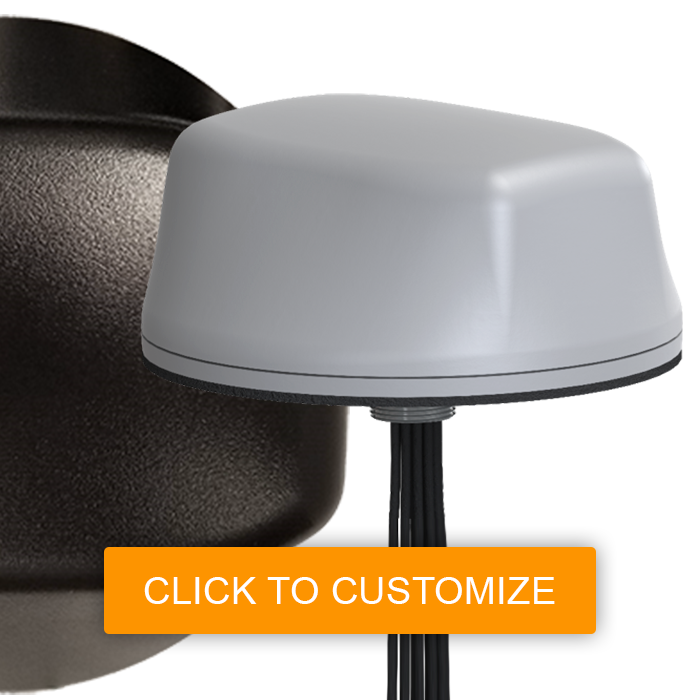

Mobile Mark’s LTMWG 900 Series Dual Carrier Multiband Antenna responds to the growing interest in antenna solutions for fleet management that cover the entire frequency band from 600-7200 MHz. These antennas make it possible to connect to any of the current or planned cellular frequency bands that reside at or below 7.2 GHz.

The LTMWG900 Series contains up to 11-cables and provides a good match for the dual-carrier modems that contain two pairs of LTE MIMO elements, one pair for each carrier.  These fleet management systems offer Cellular carrier backup.  There are Up to 6x WiFi 6E elements that provide faster throughput for advanced WiFi processors.

Furthermore, it covers all Cellular bands, worldwide.  In the US, this includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.

Measuring 5.5″ (140 mm) in diameter with a low profile of 2.38″ (60.4 mm), these series take up significantly less space than multiple antennas.

The LTMWG 900 Series always contains 4x 5G Cellular for dual-carrier coverage, but it can also be configured with fewer WiFi 6E elements. The model numbers will change as follows:

LTMWG946:  4x 5G/LTE, 6x WiFi 6E, 1x GNSS
LTMWG945: 4x 5G/LTE, 5x WiFi 6E, 1x GNSS
LTMWG944:  4x 5G/LTE, 4x WiFi 6E, 1x GNSS
LTMWG943: 4x 5G/LTE, 3x WiFi 6E, 1x GNSS
LTMWG942: 4x 5G/LTE, 2x WiFi 6E, 1x GNSS
LTMWG941: 4x 5G/LTE, 1x WiFi 6E, 1x GNSS
LTMWG940: 4x 5G/LTE, 1x GNSS
