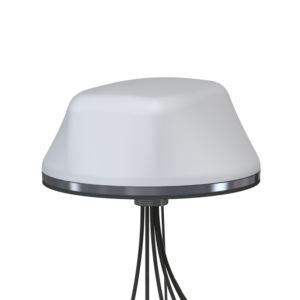

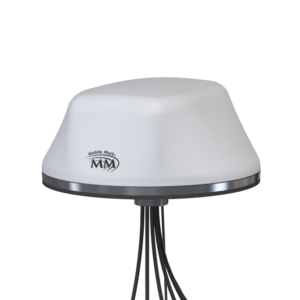

LTMW942 (4x 5G/LTE, 2x WiFi 6E, GPS)

LTMW942 (4x 5G/LTE, 2x WiFi 6E, GPS)

5G/LTE, Wi-Fi 6E, and GPS Antenna

The LTMW942 is a wideband vehicle antenna with four 5G/LTE paths, two Wi-Fi 6E paths, and a dedicated GPS connection in one low-profile roof-mounted housing.

Key Features

  • Accommodates one 4×4 5G/LTE radio or two independent 2×2 radios.
  • Covers low-band through upper Sub-6 frequencies from each cellular element.
  • Expands onboard Wi-Fi capacity with a separate 2×2 Wi-Fi 6E connection.
  • Adds GPS positioning without another roof-mounted antenna.
  • Rugged housing protects cellular, Wi-Fi, and GPS connections in harsh conditions.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

Wideband 4×4 Cellular, Wi-Fi 6E, and GPS.

The LTMW942 is the GPS version of the wideband LTMWG942 platform, bringing four 5G/LTE paths, two Wi-Fi 6E paths, and one GPS connection into a low-profile vehicle antenna. The seven-element housing supports multiple wireless systems and positioning from one roof-mounted unit.

Flexible 4×4 Cellular: Four independently cabled elements cover 617–960 and 1710–7200 MHz and support one compatible 4×4 radio or two separate 2×2 cellular groups.

2×2 Wi-Fi 6E Support: Two Wi-Fi elements cover 2.4–2.5 and 4.9–7.2 GHz for compatible onboard 2×2 wireless equipment.

Dedicated GPS Connection: The GPS path adds vehicle positioning within the same housing without requiring another exterior antenna.

Rugged Multi-System Protection: The IP69K-rated stud mount helps keep dust and high-pressure water from reaching internal components. UV-inhibitive ASA, corrosion-resistant aluminum, and a −40 °C to +80 °C operating range protect against sun, moisture, extreme heat, and cold.

The LTMW942 provides flexible wideband cellular, Wi-Fi 6E, and GPS connectivity through one compact mounting point.

Ideal Applications

  • 4×4 5G/LTE vehicle routers
  • Dual 2×2 cellular radio installations
  • 2×2 onboard Wi-Fi 6E networks
  • GPS-enabled fleet and transportation vehicles

Example Model Configurations: LTMW942A3CB3CW3J00WHT48SP739

Key Specifications

Feature Specification
Technology 4G LTE, 5G NR, GPS, Wi-Fi 6E
Frequency

Cellular: 617–960 MHz; 1710–7200 MHz

Wi-Fi: 2.4–2.5 GHz; 4.9–7.2 GHz
Gain

Cellular: 2 dBi low band; 5 dBi high band

Wi-Fi: 5 dBi
Configuration 4 × cellular; 2 × Wi-Fi; 1 × GPS
Bands

5G NR: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n68, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n96, n97, n98, n100, n101, n102, n104, n106

LTE: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106, 111
Connector / Cable

Length: Cellular/Wi-Fi: 1 ft pigtails plus 14 ft jumpers
Mounting 7/8 in (22 mm) feed-through; 3/4 in (19 mm) thread for surfaces up to 1/2 in (13 mm); 1 sq ft ground plane recommended for stud mount
Dimensions 5.50 in diameter × 2.38 in high (139 × 60 mm)
Material

Housing: ASA UV-inhibitive plastic

Base: Corrosion-resistant aluminum

Models & Configurations

Model / Configuration Configuration Details
LTMW942A3CB3CW3J00WHT48SP739 4× 5G/LTE elements; 2× Wi-Fi elements; Stud / through-hole; White radome; Cellular/Wi-Fi: 2 ft LMR-100 pigtails + 2 ft LL-195 jumpers; Cellular: SMA plugs; Wi-Fi: RP-SMA plugs; 2 ft pigtails + 2 ft jumpers (4 ft total); Jumpers included; SP739: 2 ft antenna pigtails; no GPS
