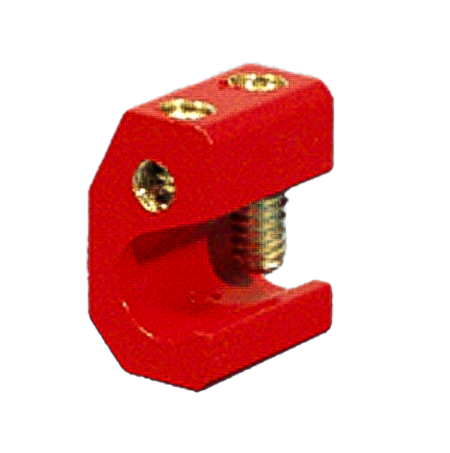

A1001 Heavy-Duty Battery Tap

Heavy-Duty Battery Tap for 12 V Accessories


Connect accessory power to a 12 V battery cable without soldering with the A1001 heavy-duty battery tap. It attaches directly to the cable using set screws, providing a connection for applications such as two-way radios, emergency lighting, alarms, trailer lights, boats, and recreational vehicles.

The epoxy coating provides electrical isolation. A1001A contains five individually packaged connectors, while A1001B is a bulk pack of 25. Set screws are included.

Follow the installation instructions and fit a correctly rated fuse on the accessory line as close to the battery tap as possible.

Key Specs

Feature Specification
Application Accessory power connection to a 12 V battery cable
Material Extruded aluminum
Finish Red insulating epoxy coating
Dimensions 1.12 in H × 0.825 in W × 0.63 in thick
Maximum battery cable 3/0 AWG
Maximum accessory cable 6 AWG
Connection Included stainless steel set screws; no soldering required

Tech Documents

A1001 Battery Tap Spec Sheet

Battery-Tap-Installation-Manual_UPDATED
