BSLL220U

BSLL-150/450/800 (Tri-Band LMR / P25)

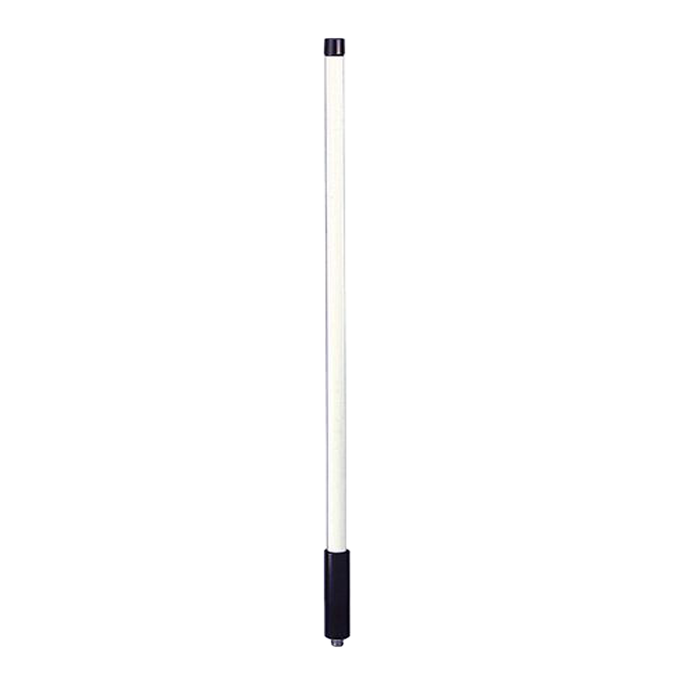

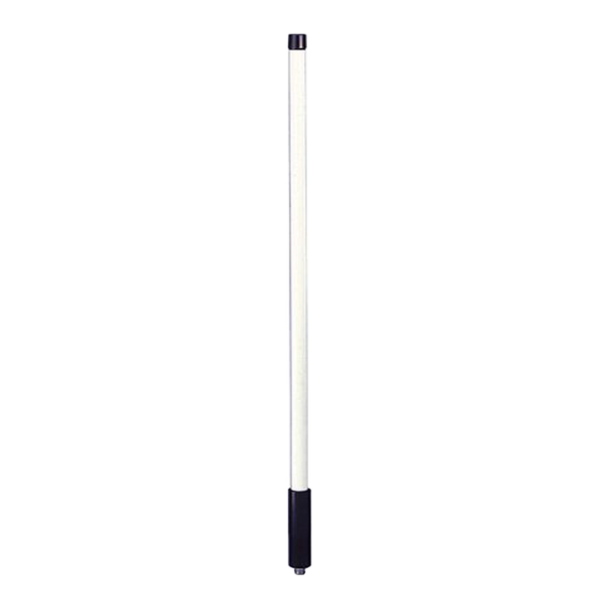

Tri-Band LMR / P25 Base Station Antenna

The BSLL-150/450/800 is a single-feed omnidirectional base station antenna covering VHF, UHF, and 700/800/900 MHz public-safety radio ranges.

Key Features

  • Consolidates VHF, UHF, and 700–960 MHz LMR coverage in one antenna.
  • Uses one N-female connection for compatible tri-band radio equipment.
  • Handles up to 200 W for public-safety base stations and repeaters.
  • Serves police, fire, ambulance, and other public-safety infrastructure.
  • Offers two mounting options for pipes up to 2.5 inches.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

Three Public-Safety Bands. One RF Connection.

The BSLL-150/450/800 brings VHF, UHF, and 700/800/900 MHz coverage together in one heavy-duty omnidirectional antenna for public-safety and fixed LMR sites.

Tri-Band Radio Coverage: A single N female connection covers 138–174, 380–512, and 700–960 MHz, keeping three public-safety ranges on one RF path.

Omnidirectional Site Pattern: The antenna provides 2 dBi gain around the site for compatible multiband base station and repeater equipment.

Heavy-Duty Fixed Installation: The fiberglass assembly measures 50.5 in (128.3 cm) high and carries a 125 mph (201 km/h) minimum wind-survival rating.

Flexible Mounting: BSLLUMNT1-2 and BSLMNT2 mount options support pipes up to 2.5 in (6.35 cm) outside diameter. External lightning protection is recommended.

Ideal Applications

  • Public-safety base stations
  • VHF/UHF/700/800/900 MHz repeater sites
  • Fixed multiband LMR infrastructure

Example Model Configurations: BSLL-150/450/800

Key Specifications

Feature Specification
Technology LMR; P25; TETRA; public safety
Frequency

LMR: 138-174 MHz; 380-512 MHz; 700-960 MHz
Gain

LMR: 2 dBi
Configuration 1 RF feed
Connector / Cable

LMR connector: N jack (female)
Mounting Vertical pole or mast installation with a bracket kit
Dimensions 50.5 in high; 2.00 in radome diameter; 2.50 in base-body diameter
Material

Housing: White fiberglass radome

Base: Black base/body with black top cap
VSWR

LMR: <2:1 typical; 2.5:1 maximum
Maximum Input Power

LMR: 200 W
Environmental Rating / Qualifications

Wind rating: 125 mph minimum
Operating Temperature -40 to 80 °C

Models & Configurations

Model / Configuration Configuration Details
BSLL-150/450/800 138-174/380-512/700-960 MHZ; Unity gain; N-JACK

Tech Documents & Resources

BSLL-150 450 800 Spec Sheet

File size: 104.13 KB
Created: 05-08-2025
Updated: 16-10-2026
Hits: 739
Download Preview

BSLLUMNT 1 & 2 Installation Manual

File size: 0.98 MB
Created: 30-10-2024
Updated: 16-10-2026
Hits: 582
Download Preview

BSLL-150-450-800-TECH-SHEET

File size: 209.79 KB
Created: 16-10-2026
Updated: 16-10-2026
Hits: 34
Download Preview

BSLL-150450800-VSWR-REVB_F

File size: 181.83 KB
Created: 16-10-2026
Updated: 16-10-2026
Hits: 36
Download Preview
