CVL-WLF

Compact Water Proof 4G LTE Antenna

Frequency: 694-960 & 1700-2700 MHz
Gain: 2 dBi

The CVL-WLF covert antenna covers Cellular and LTE networks from 694 MHz – 2.7 GHz, including 3G/4G, AWS, UMTS and LTE.

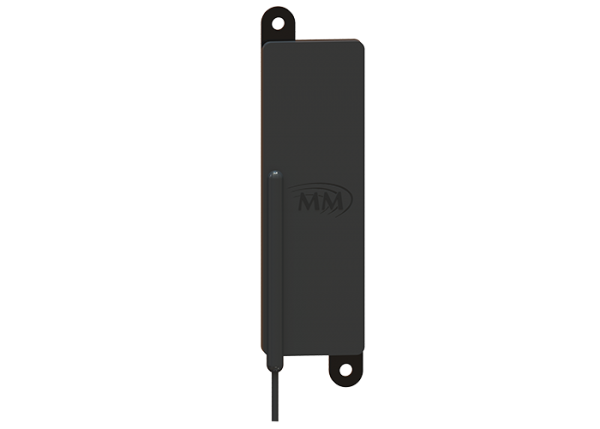

The CVL-WLF has a very slim profile; the depth of the antenna is less than 1/4″ (6 mm).  The overall dimensions are also small.

The antenna is approximately 5 3/4″ long, including the mounting holes, and 1 1/2″” wide (146 mm x 38 mm).

The antenna features an over-molded plastic radome made from UV stable polyamide that allows some flexing of the antenna case to meet IP69 water ingress.

Visit our eStore to customize this antenna online. Otherwise, read more about our other Compact Antennas.

Cvl-wlf Spec Sheet (254.1 KiB, 294 downloads)
