CVL-WLF (Multiband LTE)

Multiband LTE Covert Antenna

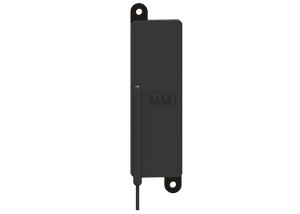

The CVL-WLF delivers 694–960 and 1700–2700 MHz cellular coverage from a slim black overmold strip.

BUY ONLINE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

The CVL-WLF delivers 694–960 and 1700–2700 MHz cellular coverage from a slim black overmold strip.

The 5.75-inch strip provides 2 dBi gain across common low- and high-band LTE ranges.

Ideal applications:

Example Model Configurations: CVL-WLF-2C-BLK-36, CVL-WLF-2C-BLK-96

Key Specifications

Feature	Specification
Technology	3G; 4G LTE; AWS; UMTS; cellular
Frequency	Cellular: 694-960 MHz and 1700-2700 MHz
Gain	Cellular: 2 dBi
Configuration	1 RF feed
Connector / Cable	Cellular connector: SMA plug (male) Cellular cable: RG-174 Cellular cable length: 8 ft / 96 in standard; 3 ft / 36 in option
Mounting	Two 0.19 in mounting holes or double-sided tape; mounting tabs may be cut off when not used.
Dimensions	5.75 in length x 1.5 in width x 0.25 in height (14.6 x 3.8 x 0.6 cm)
Material	Housing: UV-stable polyamide overmold
VSWR	Cellular: 2:1
Maximum Input Power	Cellular: 10 W
Environmental Rating / Qualifications	Ingress: IP69 Qualifications: IEEE 1478; EN 61373; MIL-STD-810G
Operating Temperature	-40 to 85 °C

Models & Configurations

Model / Configuration	Configuration Details
CVL-WLF-2C-BLK-36	Black; Cable: RG-174; SMA Plug; Cable length: 3 ft
CVL-WLF-2C-BLK-96	Black; Cable: RG-174; SMA Plug; Cable length: 8 feet
