CVWG-WB2 5G LTE GNSS

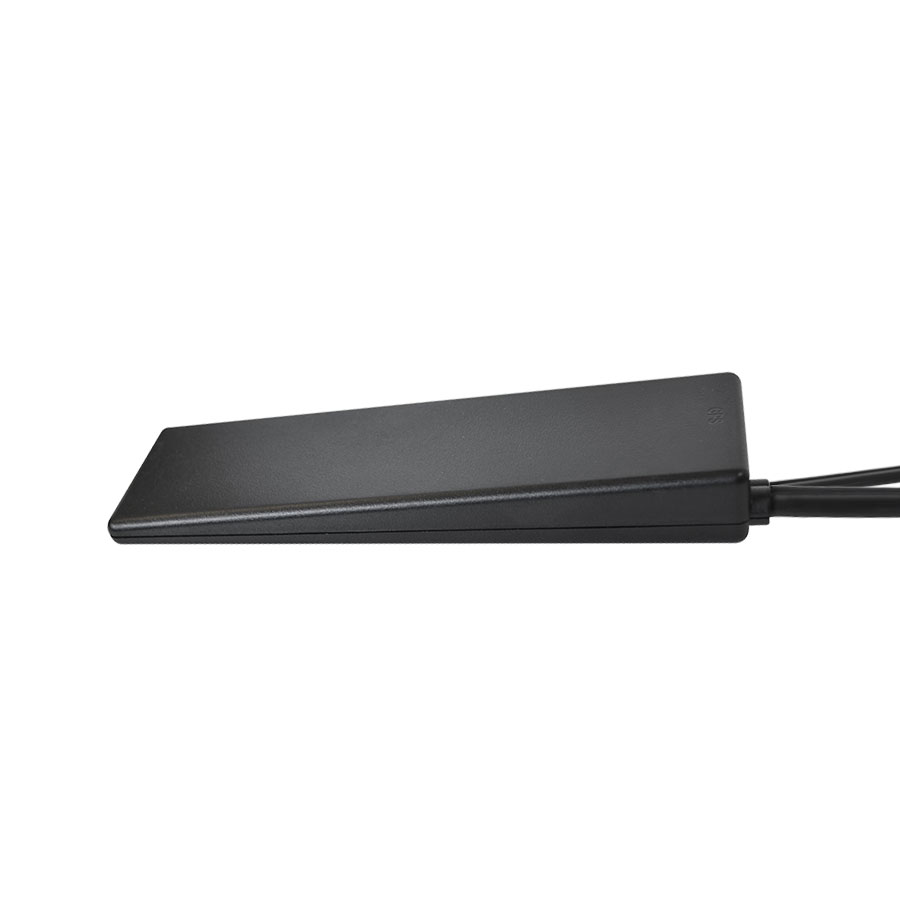

CVWG-WB2 (5G/LTE, GNSS)

Covert Wideband Cellular + GNSS Antenna

The CVWG-WB2 is a compact two-cable antenna with one 5G/LTE path through 7.2 GHz and one active GNSS path for mobile or fixed equipment.

  • Covers 617–960 MHz and 1700–7200 MHz on the cellular connection.
  • Supports five GNSS constellations through a dedicated active element.
  • Fits vehicles, NEMA boxes, and outside sensing equipment.
  • Uses separate 15-foot cellular and GNSS cables.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

The CVWG-WB2 provides cellular and positioning connections for equipment that has room for only a narrow, low-profile antenna. It can mount outside a metal enclosure or on either side of a compatible plastic or fiberglass enclosure.

The cellular element extends through 7.2 GHz, while the active GNSS element supports GPS, Galileo, GLONASS, QZSS, and BeiDou. The two signals remain separate on LL-195 and RG-174 cables.

Ideal applications:

  • Industrial IoT sensing
  • Vehicle and mobile hotspots
  • Utility and fixed-site enclosures

Example Model Configurations: CVWG-WB2-3C2C-BLK-180

Key Specifications

Feature Specification
Technology 5G/LTE; 4G LTE; GNSS; Wi-Fi 6E compatibility through the cellular element
Frequency

Cellular: 617-960 MHz; 1700-7200 MHz

GNSS: 1561 MHz; 1575 MHz; 1602 MHz
Gain

Cellular: 2.5 dBi

GNSS: 5 dBi RHCP antenna gain
Configuration 2 RF feeds: 1 cellular, 1 GNSS
Polarization

GNSS: RHCP
Connector / Cable

Cellular connector: SMA plug (male) standard

GNSS connector: SMA plug (male) standard; reverse-polarity SMA option

Cellular cable: LL-195

GNSS cable: RG-174

Cellular / GNSS cable length: 15 ft (4.5 m) standard; other lengths by request
Mounting Double-sided 3M VHB tape; indoors or outdoors; outside a metallic container or inside/outside a non-metallic container; non-metallic surface recommended
GPS / GNSS Receiver

Systems: GPS; Galileo; GLONASS; QZSS; BeiDou

Type: Active

LNA gain: 26 dB ± 3 dB

Bias supply: 2.7-5 VDC; 10 mA typical, 20 mA max
Dimensions 5.50 in L x 1.59 in W x 0.71 in H (140 x 40 x 18 mm)
Material

Housing: ASA plastic
VSWR

Cellular / GNSS: 2:1 typical; 3:1 max
Maximum Input Power

Cellular: 10 W max
Environmental Rating / Qualifications

Ingress: IPX7 when properly mounted

Qualifications: IEEE 1478; EN 61373; MIL-810G shock and vibration
Operating Temperature -40 to 80 °C

Models & Configurations

Model / Configuration Configuration Details
CVWG-WB2-3C2C-BLK-180 GNSS; Black; Cable: LL-195; RG-174; SMA Plug; Cable length: 15 feet

Tech Documents & Resources

CVWG-WB2 Spec Sheet

File size: 395.18 KB
Created: 10-06-2022
Updated: 10-06-2022
Hits: 1645
