DM2-2400

DM2-2400 (2.4 GHz Wi-Fi)

2.4 GHz WiFi Dome Antenna

The DM2-2400 is a ground-plane-independent 2.4 GHz WiFi antenna in a low-profile, gasketed surface-mount dome.

  • Covers 2.4–2.5 GHz with 2.5 dBi peak gain.
  • Mounts through a 5/8-inch hole on metal, fiberglass, or plastic surfaces.
  • Uses a UV-resistant ASA radome with an IPX7-rated mounted seal.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

The DM2-2400 brings 2.4 GHz WiFi connectivity to vehicles and equipment where a conventional rod antenna would be exposed. Its omnidirectional element operates without a ground plane, allowing installation on both conductive and nonconductive panels.

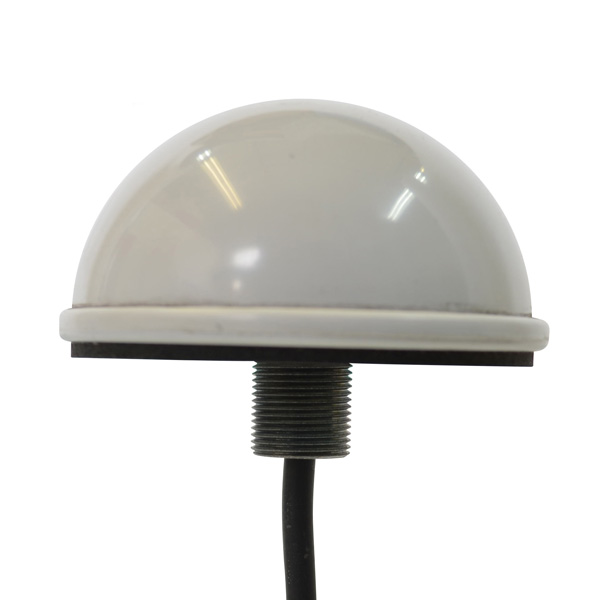

The 3-inch dome stands 1.5 inches high. A threaded feed-through, lockwasher, nut, and gasket secure the antenna and seal the mounting point.

Example Model Configurations: DM2-2400-1C-WHT-12, DM2-2400-3C-WHT-12, DM2-2400/1575-3C2C-WHT-180

Key Specifications

Feature Specification
Technology Wi-Fi / WLAN
Frequency

Wi-Fi: 2.4-2.5 GHz
Gain

Wi-Fi: 2.5 dBi peak
Configuration 1 RF feed
Connector / Cable

Wi-Fi connector: SMA plug (male)

Wi-Fi cable: RG-58

Wi-Fi cable length: 1 ft (305 mm)
Mounting 3/4 in long threaded stud with 5/8 in feed-through for surfaces up to 1/2 in thick; nut, lockwasher, and gasket supplied. Optional NT-MK pole/wall adapter.
Dimensions 3 in diameter x 1.5 in high
Material

Housing: UV-resistant ASA plastic
VSWR

Wi-Fi: 2:1 maximum
Maximum Input Power

Wi-Fi: 10 W maximum
Environmental Rating / Qualifications

Ingress: IPX7

Qualifications: EN 61373; IEEE 1478; MIL-810G; TIA-329.2-C
Operating Temperature -40 to 85 °C

Models & Configurations

Model / Configuration Configuration Details
DM2-2400-1C-WHT-12 White; Cable: RG-58; SMA Plug
DM2-2400-3C-WHT-12 2.4-2.485 GHz; 2 dBi gain; White; Cable: LL-195; SMA Plug; Cable length: 1 foot
DM2-2400/1575-3C2C-WHT-180 GPS; White; Cable: LL-195; RG-174; SMA Plug; Cable length: 15 feet; 15Ft

Tech Documents & Resources

dm2-2400-dm2-2400-5500-mgd-2400-5500-spec-sheet

File size: 288.50 KB
Created: 11-06-2020
Updated: 11-06-2020
Hits: 1911
