ECOM5-2400

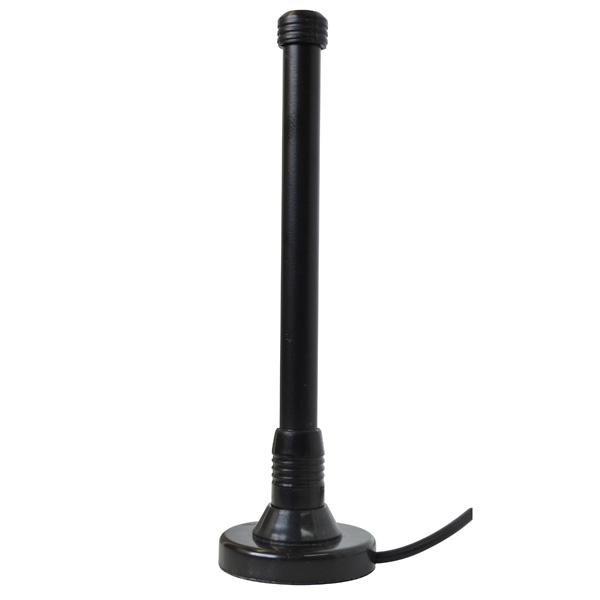

ECOM5-2400 (Magnetic-Mount 2.4 GHz WiFi)

Magnetic-Mount 2.4 GHz Wi-Fi Antenna

The ECOM5-2400 is a 5 dBi magnetic-mount antenna for temporary 2.4 GHz Wi-Fi installations on vehicles and mobile equipment. Its attached 10-foot cable and scratch-resistant base keep the antenna portable without requiring a permanent mounting hole.

Key Features

  • Delivers 5 dBi omnidirectional coverage across the 2.4 GHz band.
  • Moves between compatible vehicles without permanent mounting holes.
  • Protects painted surfaces with a scratch-resistant magnetic base.
  • Operates without requiring a metal surface as an RF ground plane.
  • Keeps setups portable with an attached 10-foot LL-195 cable.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

Portable 2.4 GHz Wi-Fi Without Drilling.

The ECOM5-2400 is a magnetic-mount vehicle antenna for temporary 2.4 GHz Wi-Fi and mobile-network installations. It attaches to suitable metal surfaces and moves with the radio equipment without drilling a permanent mounting hole.

Balanced 2.4 GHz Coverage: The antenna provides 5 dBi omnidirectional gain across 2.4–2.5 GHz for compatible vehicle, field, and temporary WLAN equipment.

Relocatable Without Drilling: The commercial magnetic base attaches to suitable metal surfaces and can move between compatible vehicles or equipment platforms.

Protects Painted Surfaces: Scratch-resistant material beneath the 2.6-inch magnetic base helps protect the mounting surface during installation and repositioning.

Portable Radio Connection: The attached 10-foot LL-195 cable with an SMA plug keeps the antenna and feed line together as the installation moves.

The ECOM5-2400 provides a reusable external 2.4 GHz antenna for temporary mobile installations.

Ideal Applications

  • Temporary vehicle Wi-Fi
  • Fleet radio trials
  • Mobile field equipment
  • Relocatable WLAN systems
  • Compatible metal mounting surfaces

Example Model Configurations: ECOM5-2400-3C-BLK-120

Key Specifications

Feature Specification
Technology Wi-Fi / WLAN
Frequency

Wi-Fi: 2.4–2.5 GHz
Gain

Wi-Fi: 5 dBi
Connector / Cable

Wi-Fi connector: SMA plug (male)

Wi-Fi cable: LL-195

Wi-Fi cable length: 10 ft (3 m)
Mounting 2.6 in (66 mm) commercial magnetic base with scratch-resistant covering; side cable exit; ground-plane independent
Ground Plane Ground-plane independent
Dimensions 2.60 in magnetic-base diameter × 10.00 in high (66 × 250 mm)
Material

Housing: Black fiberglass

Base: ASA plastic and steel
Wind Rating 100 mph (161 kph) with 1/2 in (1.3 cm) radial ice
Operating Temperature -40°C to +80°C

Models & Configurations

Model / Configuration Configuration Details
ECOM5-2400-3C-BLK-120 2.4-2.485 GHz; 5 dBi gain; 195 cables; Magnetic mount; Black; Cable: LL-195; SMA Plug; Cable length: 10 ft

Tech Documents & Resources

ecom5-2400-ecom6-5500-ecom9-5500-spec-sheet

File size: 305.41 KB
Created: 11-06-2020
Updated: 11-06-2020
Hits: 2168
Download Preview

ECOM5-2400 Radiation Pattern

File size: 161.83 KB
Created: 22-05-2020
Updated: 22-05-2020
Hits: 1599
Download Preview
