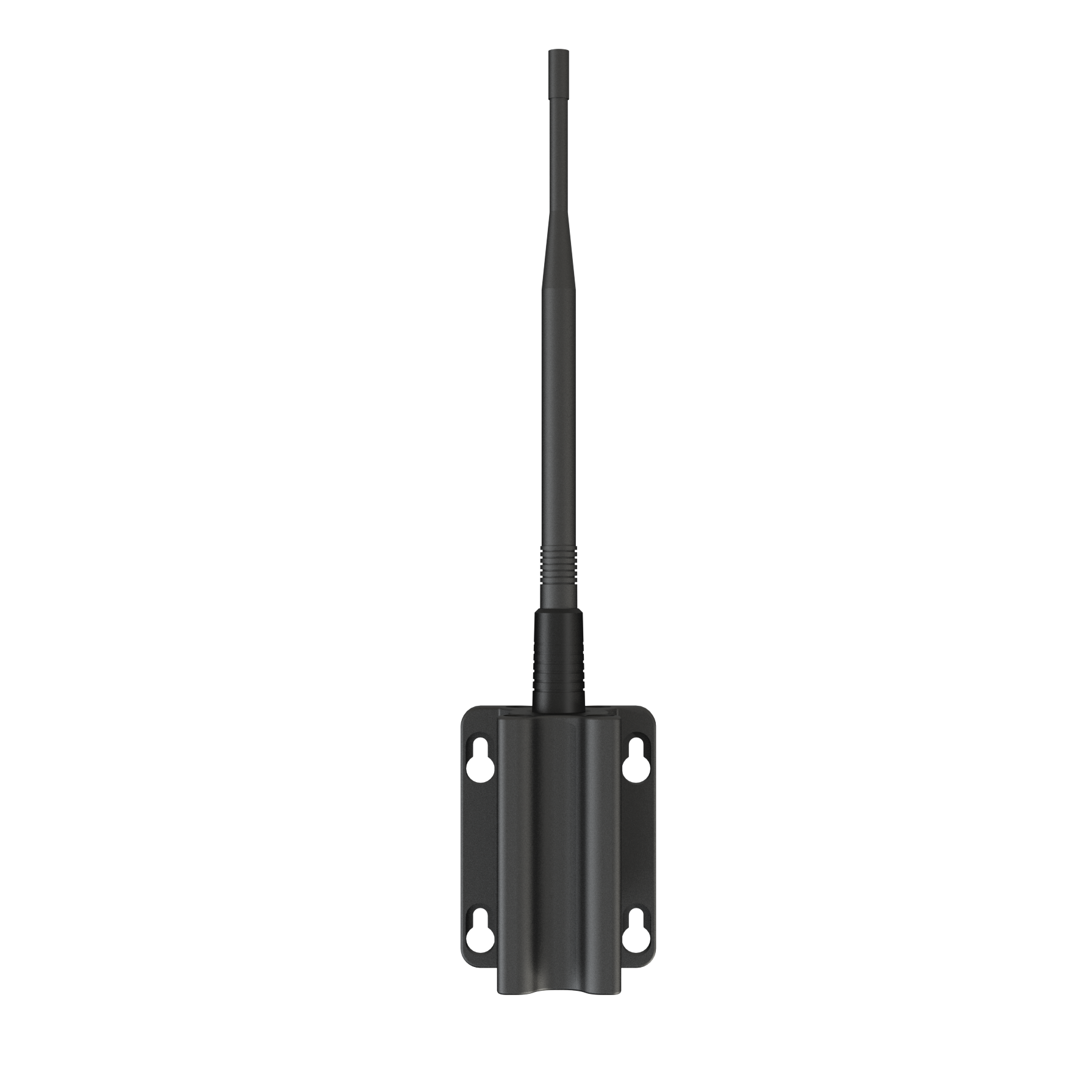

EOD925 + UMK

EOD925 + UMK

Rugged Sub-GHz Connectivity with Flexible Universal Mounting

  • 870–960 MHz Coverage: Omnidirectional performance across the specified frequency range with 2.5 dBi gain.
  • Rugged Outdoor Construction: IP67-rated, overmolded construction provides protection against dust and water.
  • Flexible Universal Mounting: Supports desk, wall, ceiling, and window/glass installation using screws and anchors, double-sided tape, or a suction cup.
  • Integration-Ready Configuration: Includes 10 feet of LL-195 cable with a reverse-polarity SMA plug; alternate pigtail lengths and connector options are configurable.
  • Wide Operating Temperature: Designed for operation from -40°C to +80°C.

Primary Applications

  • Private LTE and sub-GHz IoT deployments
  • K-12 education and school safety systems
  • Commercial real estate and building automation
  • Utilities, oil and gas, and critical infrastructure
  • Manufacturing and warehouse automation
Categories:
, ,

Description

The EOD925-K-120 is a rugged, omnidirectional device antenna designed for reliable connectivity across 870–960 MHz. It delivers 2.5 dBi gain with 50-ohm impedance, a V.S.W.R. below 2:1, and a maximum power rating of 10 watts. Its IP67-rated, overmolded construction helps protect the antenna against dust and water, while its -40°C to +80°C operating temperature supports demanding outdoor and industrial installations.

The EOD-UMK universal mounting bracket supports desk, wall, ceiling, and window or glass installations. It can be installed using screws and plastic drywall anchors, double-sided mounting tape, or a suction cup, providing options for permanent and temporary placement. This configuration includes 10 feet of LL-195 cable terminated with a reverse-polarity SMA plug. Alternate pigtail lengths and connector options are configurable.

Feature Specification
Frequency & Gain 870–960 MHz; 2.5 dBi
Radiation Pattern Omnidirectional
Impedance 50 Ohms
V.S.W.R. < 2:1
Maximum Power 10 Watts
Cable LL-195, 10 ft
Connector Reverse-polarity SMA plug (configurable)
Antenna Dimensions 10.59″ × 0.67″ (26.90 cm × 1.70 cm)
Overall Dimensions 10.7″ H × 2″ W (27.18 cm × 5.08 cm)
Mount Dimensions 3.34″ × 2″ (8.48 cm × 5.08 cm)
Mounting Desk, wall, ceiling, and window/glass mounting
Mounting Hardware Two screws with plastic drywall anchors, double-sided mounting tape, and suction cup
Mount Material Plastic
Ingress Protection IP67
Operating Temperature -40°C to +80°C

Compatible Gateways

  • Conduit® AP 300 Series Cellular Gateways
  • MultiTech Conduit® Cellular Gateways

Specifications

EOD925-K-120 Spec Sheet

File size: 613.98 KB
Created: 17-08-2026
Updated: 17-08-2026
Hits: 17
Download Preview
