GNSS Glass Mount Antenna

Frequency: 1561, 1575, & 1602 MHz
Gain: 26 dB LNA, 5 dBi

Mounts inside the vehicle, on the front or rear window

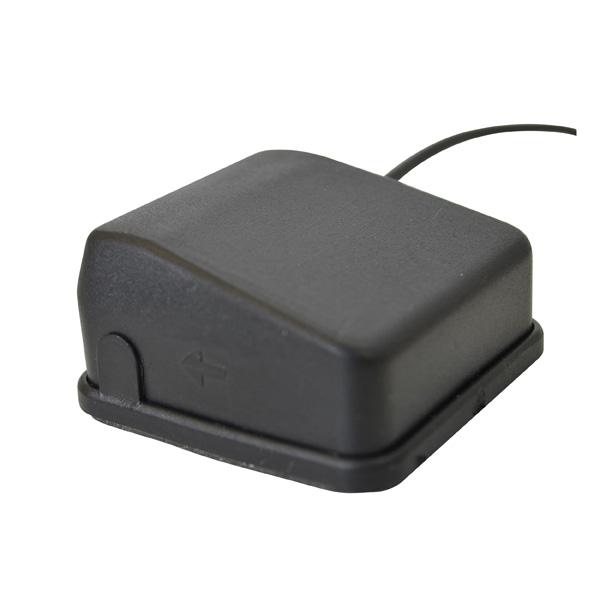

The IWG-1575 compact glass mount antenna mounts inside the vehicle and attached with strong double sided bonding tape.

The GNSS element mounts directly against the glass of the vehicle, oriented up towards the satellites. The cable exits near the top side allowing direct entry into the vehicle headliner. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.

The IWG-1575 measures: 1 5/8″ H x 1 5/8″ W x 7/8″ D (41 mm x 41 mm x 22 mm).

Please specify IW-1575 for the GPS version of this models.

Visit our eStore to Purchase the IWG -1575 Antenna Online.  Otherwise, check out our other GPS/GNSS Only Models.
