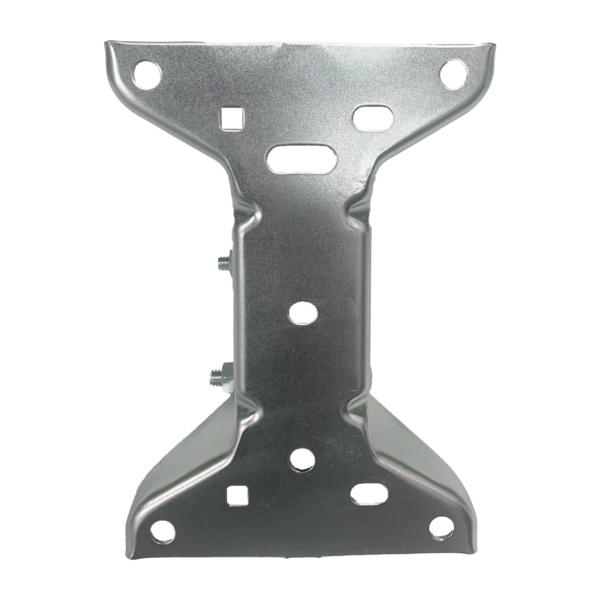

J-WMK BPN Mounting Kit

Adjustable Wall Mount for BPN Series Antennas


Position a BPN series base station antenna on a wall with the J-WMK. This heavy duty mount is suitable for indoor or outdoor installations and also accommodates other fixtures designed for a 1.5-inch mounting tube.

Galvanized steel construction supports loads up to 30 lb, while the ±45° adjustment helps set the mounting angle. Wall mounting hardware is not included and must be selected for the installation surface.

Key Specs

Feature Specification
Product type Adjustable universal wall mount
Compatibility BPN series antennas and fixtures accepting a 1.5 in tube
Material Galvanized steel
Maximum supported load 30 lb
Tube diameter 1.5 in
Overall height 16.47 in
Angle adjustment ±45°
Mounting holes Four holes, 0.30 in diameter
Hole spacing 3.70 in × 6.00 in
Weight 2.2 lb
Wall mounting hardware Not included

Tech Documents

J-WMK Spec Sheet
