LLPG602, LLPG408

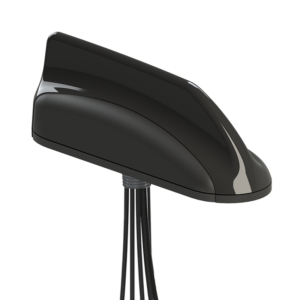

LLPG608 (2× 5G/LTE, 3× Wi-Fi 6E, GNSS)

5G/LTE MIMO and 3× Wi-Fi 6E Surface-Mount Antenna

The LLPG608 combines 2×2 5G/LTE, three Wi-Fi 6E paths, and active GNSS in one low-profile six-cable antenna.

  • Provides two wideband paths for compatible 2×2 cellular MIMO.
  • Expands WLAN connectivity with three Wi-Fi 6E connections.
  • Adds multi-constellation GNSS without another roof-mounted unit.
  • Consolidates six cables within one 1.25-inch-high enclosure.
  • Sealed stud mounting protects internal components in harsh conditions.

Config test: LLPG608-a3a3a212-blk-180

BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

Six Connections. Wi-Fi 6E Included.

The LLPG608 integrates two wideband cellular paths, three Wi-Fi 6E paths, and active GNSS in one low-profile antenna for multiradio vehicle and fixed installations.

Reliable 2×2 Cellular MIMO: Two independently cabled elements cover 617–960 and 1710–6000 MHz for compatible 5G/LTE radios.

Three Wi-Fi 6E Paths: Three WLAN elements cover 2.4–2.5 and 4.9–7.2 GHz, extending compatible equipment into the 6 GHz band.

Multi-Constellation GNSS: The sixth connection accesses GPS, Galileo, GLONASS, QZSS, and BeiDou.

Six Paths, One Footprint: All connections share one 9.00 × 3.50 × 1.25-inch housing, preserving room for other mounted equipment.

Protected Low-Profile Installation: The properly mounted stud configuration carries an IP69K rating and operates from −40 °C to +80 °C.

The LLPG608 adds a third Wi-Fi 6E path without expanding the LLP mounting footprint.

Ideal Applications

  • Advanced multiband modems
  • Tall vehicles with height restrictions
  • Fixed sites with vandalism risk

Example Model Configurations: LLPG608-3C3C3C3C3C2C-BLK-180, LLPG608-3C3C3J3J3J2C-BLK-180

Key Specifications

Feature Specification
Technology 5G Sub-6; 4G LTE; Wi-Fi 6E; 802.11ax; active GNSS; GPS; Galileo; GLONASS; QZSS; BeiDou
Frequency

Cellular: 617-960 MHz; 1710-6000 MHz

Wi-Fi: 2400-2500 MHz; 4900-7200 MHz

GNSS: 1561; 1575; 1602 MHz
Gain

Cellular: 1 dBi at 617-700 MHz; 3 dBi at 700-960 MHz; 4 dBi at 1700-2700 MHz; 6 dBi at 3400-4200 MHz; 6 dBi at 4900-6000 MHz

Wi-Fi: 4 dBi at 2400-2500 MHz; 5 dBi at 4900-7200 MHz

GNSS: 5 dBi RHCP
Configuration 2× Cellular, 3× Wi-Fi, 1× GNSS; 6 RF feeds total
MIMO

Cellular: 2×2

Wi-Fi: 3×3 MIMO-capable
Polarization

GNSS: RHCP
Connector / Cable

Cellular / GNSS connector: SMA plug (male)

Wi-Fi connector: reverse-polarity SMA plug (male)

Cellular / Wi-Fi cable: LL-195

GNSS cable: RG-174

All paths cable length: 15 ft (4.5 m)
GNSS

Systems: GPS; Galileo; GLONASS; QZSS; BeiDou

Type: Active

LNA gain: 26 dB

Bias: 2.7-5 VDC; 10 mA typical / 20 mA max
Mounting Through-hole; ground-plane dependent
Ground Plane Required; family manual recommends a 1 sq ft ground plane
Dimensions 9.00 in long × 3.50 in wide × 1.25 in high (228 × 89 × 31.8 mm)
Material

Housing: ASA UV-inhibitive plastic
Environmental Rating IP69K (stud mount, when properly mounted)
Environmental Qualifications IEEE 1478; EN 61373; MIL-810G; TIA 329.2-C
Compliance RoHS compliant
Operating Temperature -40°C to +80°C

Models & Configurations

Model / Configuration Configuration Details
LLPG608-3C3C3C3C3C2C-BLK-180 GLONASS/GPS; 617-960/1710-6000 MHz; 2.4-2.5/4.9-7.2 GHz; 6 cables; Black; Cable: LL-195; RG-174; SMA Plug; Cable length: 15 ft
LLPG608-3C3C3J3J3J2C-BLK-180 2× 5G/LTE; 3× Wi-Fi 6E; Black; Cable: LL-195; RG-174; SMA Plug; Rev Pol SMA Plug; Cable length: 15 ft
