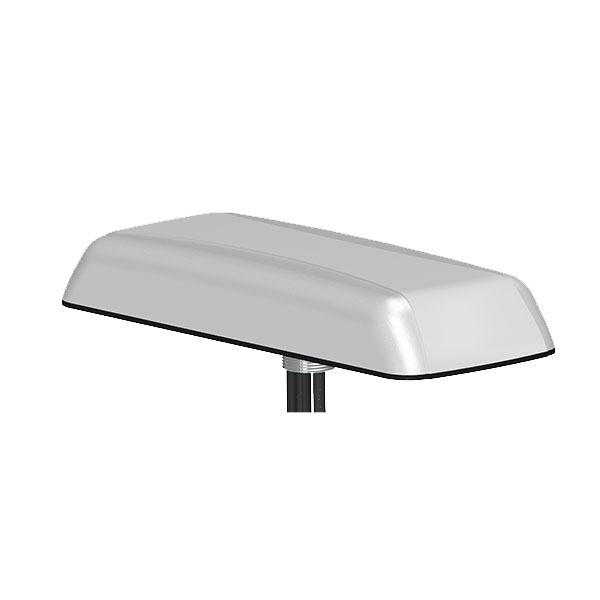

LLPG709 (2x Global 5G LTE, 4x WiFi 6E, GNSS)

GNSS Multiband Surface Mount Antenna

7 cables: two Global 5G Sub-6 Cellular LTE, four WiFi 6E, one GNSS

Cables 1 & 2 ( 5G LTE ): 617-960 MHz, 3 dBi & 1710-6000 MHz, 4 dBi
Cables 3 – 6 ( WiFi 6E ): 2.4-2.5 & 4.9-7.2 GHz, 5 dBi
Cable 7 ( GNSS ): 1561, 1575, & 1602 MHz, LNA 26 dB, 5 dBi

Specify LLP709  for GPS only models.

The 7-cable LLPG709 (2x Global 5G LTE, 4x WiFi 6E, 1x GNSS) antennas include two Global 5G LTE antennas, four WiFi6e antennas and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for both Cellular and WiFi 6E. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.

The Global LTE 5G-ready antenna element covers: 617-960 & 1710-6000 MHz.  Furthermore, it covers all Cellular bands, worldwide.  In the US, this includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.

Measuring 9” ( 22.8cm ) x 3.5” ( 8.9cm ) with low profile height of 1.25” ( 3.18cm ), the LLPG709 series antennas take up significantly less space than multiple antennas. Specify LLP709 for model configured with GPS only.

To customize an antenna configuration, visit our eStore.



LLPG709 Spec Sheet

LLPG709 TECH Sheet
