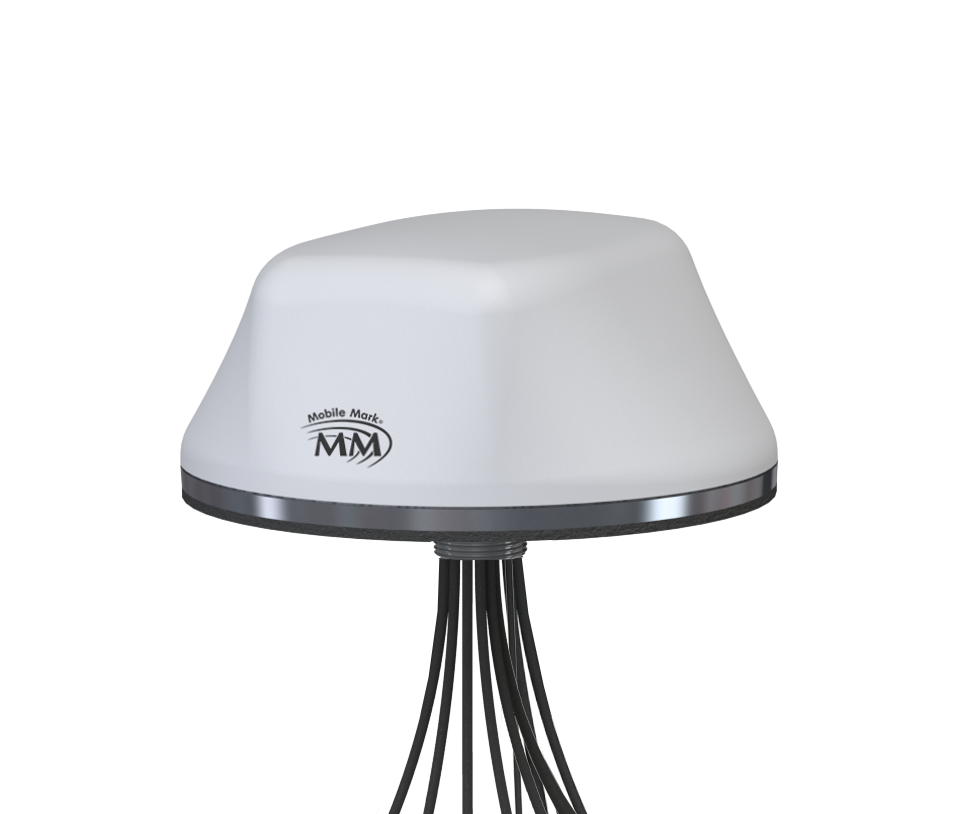

LTM944 (4x LTE, 4x WiFi, GPS)

LTM944 (4x LTE, 4x WiFi, GPS)

LTE, Wi-Fi, and GPS Vehicle Antenna

The LTM944 is a nine-element low-profile vehicle antenna that supports 4×4 LTE, 4×4 dual-band Wi-Fi, and GPS from one roof-mounted unit.

Key Features

  • Accommodates one 4×4 LTE radio or two independent 2×2 radios.
  • Expands onboard Wi-Fi capacity with four independently cabled dual-band elements.
  • Adds GPS navigation and tracking without another roof-mounted antenna.
  • Consolidates nine connections to preserve roof space for other equipment.
  • IP67-rated construction protects multi-radio connectivity in exposed vehicle environments.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

Nine Connections. One Compact Vehicle Antenna.

The LTM944 brings LTE, onboard Wi-Fi, and GPS into one low-profile roof-mounted antenna for fleet and transportation vehicles. Its nine-element architecture supports multiple vehicle systems while preserving space for other roof-mounted equipment.

Flexible LTE Connectivity: Four independently cabled LTE elements support one 4×4 MIMO radio or two separate 2×2 radio groups for single- or dual-radio cellular architectures.

4×4 Dual-Band Wi-Fi: Four Wi-Fi elements cover 2.4–2.5 and 5–6 GHz with 5 dBi gain for compatible onboard 4×4 Wi-Fi systems.

Integrated GPS: A dedicated GPS element supports vehicle navigation and tracking without adding another antenna housing to the roof. A GPS/GLONASS option is also available for the platform.

Rugged Multi-System Protection: IP67-rated construction helps keep dust and water away from internal components. UV-stable ASA and a −40 °C to +80 °C operating range protect the antenna across exposed vehicle conditions.

The LTM944 balances multi-radio capacity, roof-space efficiency, and environmental protection for connected fleet platforms.

Ideal Applications

  • Fleet and transportation vehicles
  • 4×4 LTE vehicle routers
  • Dual-radio cellular installations
  • 4×4 onboard Wi-Fi networks
  • GPS navigation and vehicle tracking

Example Model Configurations: LTMG944-A3CB3CW3JG2C-WHT-180, LTMG944-A3CB3CW3JG2C-BLK-180

Key Specifications

Feature Specification
Technology 4G LTE, GPS, Wi-Fi
Frequency

Cellular: 694–960 MHz; 1710–3700 MHz

Wi-Fi: 2.4–2.5 GHz; 5–6 GHz

GPS: 1575 MHz
Gain

Cellular: 2 dBi low band; 5 dBi high band

Wi-Fi: 5 dBi

GPS: 5 dBi; 26 dB LNA
Configuration 4 × cellular; 4 × Wi-Fi; 1 × GPS
Bands

LTE: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 85, 103, 106, 111
MIMO

Cellular: 4×4 or two 2×2 carrier groups

Wi-Fi: 4×4 MIMO
GPS Bias 3.3/5 VDC
Connector / Cable

Connectors: Cellular/GPS: SMA; Wi-Fi: reverse-polarity SMA on jumper ends

Cable: 1 ft LL-100 cellular/Wi-Fi and RG-174 GPS pigtails; 14 ft LL-195 cellular/Wi-Fi and RG-174 GPS jumpers

Length: 1 ft pigtails plus 14 ft jumpers
Mounting Stud mount, 5/8-24 thread; surfaces up to 0.20 in (5 mm); 1 sq ft ground plane recommended for stud mount
Dimensions 5.50 in diameter × 2.38 in high (140 × 60.4 mm)
Material

Housing: ASA UV-stable plastic
Environmental Rating / Qualifications

Ingress: IP67

Qualifications: EN 61373; IEEE 1478
Operating Temperature −40°C to +80°C

Models & Configurations

Model / Configuration Configuration Details
LTMG944-A3CB3CW3JG2C-WHT-180 4× LTE, 4× Wi‑Fi, GPS; White radome; 15 ft cable configuration (180 in).
LTMG944-A3CB3CW3JG2C-BLK-180 4× LTE, 4× Wi‑Fi, GPS; Black radome; 15 ft cable configuration (180 in).

Tech Documents & Resources

ltm944-spec-sheet

File size: 328.24 KB
Created: 10-06-2020
Updated: 23-07-2020
Hits: 2775
Download Preview

LTM944 WiFi Radiation Pattern

File size: 1.75 MB
Created: 22-05-2020
Updated: 22-05-2020
Hits: 2189
Download Preview

LTM944 694/960 Radiation Pattern

File size: 1.42 MB
Created: 22-05-2020
Updated: 22-05-2020
Hits: 2085
Download Preview

LTM944 1710/3700 Radiation Pattern

File size: 2.33 MB
Created: 22-05-2020
Updated: 22-05-2020
Hits: 2201
Download Preview
