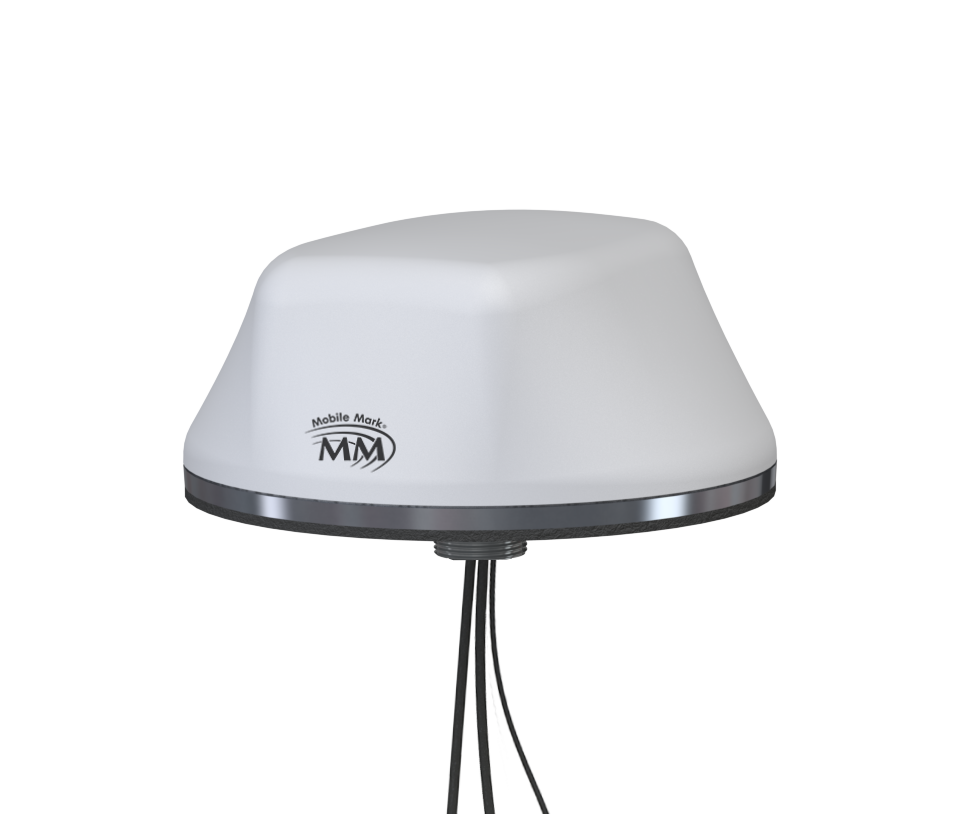

LTMG302 (2x 4G LTE, GNSS)

LTMG302 (2x 4G LTE, GNSS)

2×2 MIMO LTE and GNSS Antenna

The LTMG302 is a low-profile vehicle antenna that provides two LTE paths for 2×2 MIMO and active multi-constellation GNSS from one roof-mounted unit.

Key Features

  • Delivers two LTE paths for reliable 2×2 MIMO connectivity.
  • Covers low-band and higher-frequency LTE from each cellular element.
  • Adds multi-constellation navigation and tracking without another roof antenna.
  • Consolidates three RF connections at one low-profile mounting point.
  • IP69K-rated stud mount protects internal components from dust and water.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

2×2 LTE and GNSS. One Vehicle Mount.

The LTMG302 integrates two LTE elements and active GNSS in one low-profile roof-mounted antenna for fleet and transportation vehicles. It gives compatible vehicle routers a 2×2 cellular connection while keeping navigation and tracking within the same exterior housing.

2×2 LTE MIMO: Two independently cabled cellular elements cover 694–960 and 1710–3700 MHz for compatible 2×2 LTE routers and gateways.

Multi-Constellation GNSS: The active positioning element supports GPS, Galileo, GLONASS, QZSS, and BeiDou at 1561, 1575, and 1602 MHz.

Single Roof-Mounted Unit: Cellular and positioning connections share one 5.50-inch-diameter housing, reducing the number of separate antenna units required on the vehicle.

Rugged Multi-System Protection: The IP69K-rated stud mount helps keep dust and high-pressure water from reaching internal components. UV-inhibitive ASA, corrosion-resistant aluminum, and a −40 °C to +80 °C operating range protect against sun, moisture, extreme heat, and cold.

The LTMG302 provides a focused cellular-and-positioning solution for vehicles that require 2×2 LTE connectivity.

Ideal Applications

  • 2×2 LTE vehicle routers
  • Fleet-management systems
  • Transportation vehicles
  • Vehicle navigation and tracking

Example Model Configurations: LTM302-3C3C2C-WHT-180, LTMG302-3C3C2C-WHT-180, MLTM302-3C3C2C-BLK-180, MLTMG302-3C3C2C-BLK-180, LTMG302-3C3C2C-BLK-180

Key Specifications

Feature Specification
Technology 4G LTE, GNSS
Frequency

Cellular: 694–960 MHz; 1710–3700 MHz

GNSS: 1561, 1575, and 1602 MHz
Gain

Cellular: 3 dBi low band; 4 dBi high band

GNSS: 5 dBi RHCP; 26 dB ±3 dB LNA
Configuration 2 × cellular; 1 × GNSS
Bands

LTE: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 85, 103, 106, 111
MIMO

Cellular: 2×2 MIMO
Polarization

GNSS: RHCP
GNSS Bias 2.7–5 VDC; Current 20 mA max / 10 mA typical
Connector / Cable

Connectors: Cellular/GNSS: SMA plug

Cable: Cellular: LL-195; GNSS: RG-174

Length: All paths: 15 ft (4.5 m)
Mounting 7/8 in (22 mm) feed-through; 3/4 in (19 mm) thread for surfaces up to 1/2 in (13 mm); 1 sq ft ground plane recommended for stud mount
Dimensions 5.50 in diameter × 2.38 in high (139 × 60 mm)
Material

Housing: ASA UV-inhibitive plastic

Base: Corrosion-resistant aluminum
Environmental Rating / Qualifications

Ingress: IP69K (stud mount)

Qualifications: IEEE 1478; EN 61373; MIL-810G; TIA-329.2-C

Standards: RoHS compliant
Operating Temperature −40°C to +80°C

Models & Configurations

Model / Configuration Configuration Details
LTM302-3C3C2C-WHT-180 2× LTE elements; 1× GPS element; Stud / through-hole; White radome; 2× LL-195; 1× RG-174; 3× SMA Plug; All cables: 180 in (15 ft)
LTMG302-3C3C2C-WHT-180 2× LTE elements; 1× GLONASS/GPS element; Stud / through-hole; White radome; 2× LL-195; 1× RG-174; 3× SMA Plug; All cables: 180 in (15 ft)
MLTM302-3C3C2C-BLK-180 2× LTE elements; 1× GPS element; Magnetic mount; Black radome; 2× LL-195; 1× RG-174; 3× SMA Plug; All cables: 180 in (15 ft)
MLTMG302-3C3C2C-BLK-180 2× LTE elements; 1× GLONASS/GPS element; Magnetic mount; Black radome; 2× LL-195; 1× RG-174; 3× SMA Plug; All cables: 180 in (15 ft)
LTMG302-3C3C2C-BLK-180 2× LTE elements; 1× GLONASS/GPS element; Stud / through-hole; Black radome; 2× LL-195; 1× RG-174; 3× SMA Plug; All cables: 180 in (15 ft)
