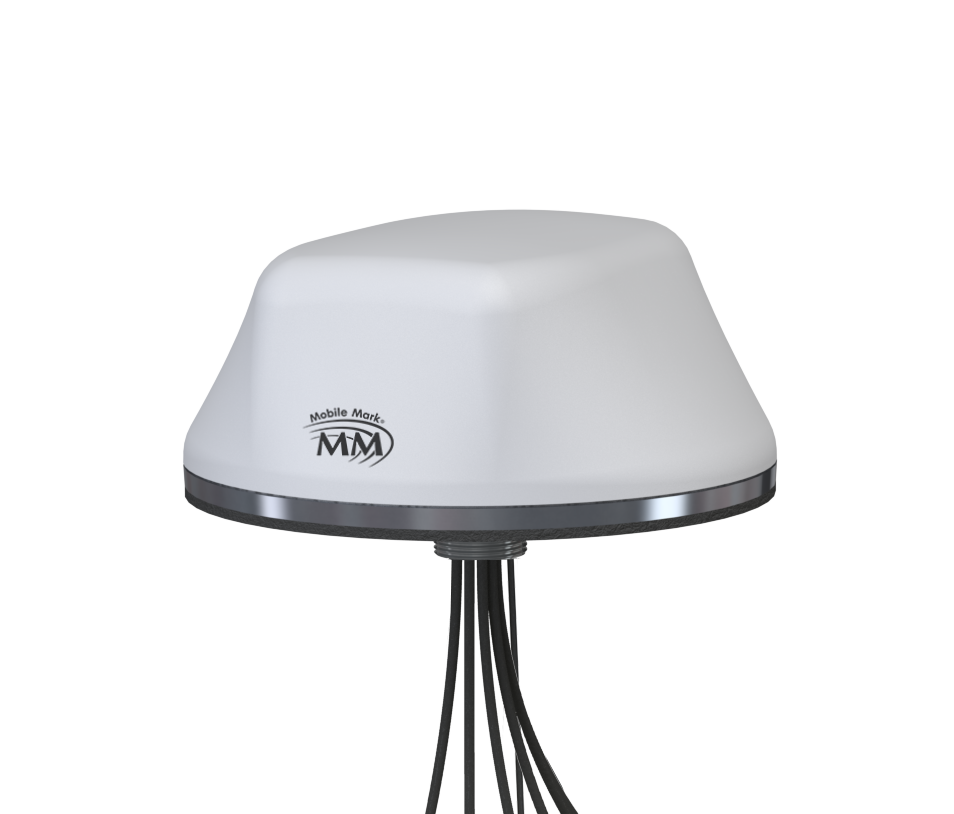

LTMG608 (2x 5G/LTE, 3x WiFi 6E, GNSS)

LTMG608 (2x 5G/LTE, 3x WiFi 6E, GNSS)

5G/LTE, Wi-Fi 6E, and GNSS Antenna

The LTMG608 is a six-element low-profile vehicle antenna that provides 2×2 5G/LTE, three independently fed Wi-Fi 6E paths, and active GNSS from one roof-mounted unit.

Key Features

  • Delivers reliable 2×2 5G/LTE connectivity across broad Sub-6 ranges.
  • Expands onboard wireless capacity with three Wi-Fi 6E connections.
  • Adds multi-constellation navigation and tracking without another roof antenna.
  • Consolidates six RF connections at one compact mounting point.
  • Rugged housing protects cellular, Wi-Fi, and GNSS connections in harsh conditions.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

Wideband Cellular, Three Wi-Fi Paths, and GNSS.

The LTMG608 supports connected fleet platforms with 2×2 5G/LTE, three separate Wi-Fi connections, and active GNSS in one compact roof-mounted antenna. Its six-element design keeps multiple radio paths organized within one low-profile exterior housing.

Wideband 2×2 Cellular: Two independently cabled elements cover 617–960 and 1710–6000 MHz for compatible 2×2 5G Sub-6 and LTE routers.

Three Wi-Fi 6E and Wi-Fi 7 Ready Paths: Each Wi-Fi element covers 2.4–2.5 and 4.9–7.2 GHz for compatible multi-radio arrangements using 2.4, 5, and 6 GHz spectrum.

Multi-Constellation GNSS: The active positioning element supports GPS, Galileo, GLONASS, QZSS, and BeiDou for navigation and vehicle tracking.

Rugged Multi-System Protection: The IP69K-rated stud mount helps keep dust and high-pressure water from reaching internal components. UV-inhibitive ASA, corrosion-resistant aluminum, and a −40 °C to +80 °C operating range protect against sun, moisture, extreme heat, and cold.

The LTMG608 provides a compact six-port option for vehicles that need wideband cellular, several Wi-Fi connections, and positioning.

Ideal Applications

  • 2×2 5G/LTE fleet routers
  • Vehicles with multiple Wi-Fi 6E connections
  • Connected transportation systems
  • Vehicle navigation and tracking

Example Model Configurations: LTMG608-3C3C3C3C3C2C-WHT-180, LTMG608-3C3C3J3J3J2C-WHT-180

Key Specifications

Feature Specification
Technology 4G LTE, 5G NR, GNSS, Wi-Fi 6E
Frequency

Cellular: 617–960 MHz; 1710–6000 MHz

Wi-Fi: 2.4–2.5 GHz; 4.9–7.2 GHz

GNSS: 1561, 1575, and 1602 MHz
Gain

Cellular: 3 dBi low band; 4 dBi high band

Wi-Fi: 5 dBi

GNSS: 5 dBi RHCP; 26 dB ±3 dB LNA
Configuration 2 × cellular; 3 × Wi-Fi; 1 × GNSS
Bands

5G NR: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n68, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106

LTE: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106, 111
MIMO

Cellular: 2×2 MIMO

Wi-Fi: MIMO
Polarization

GNSS: RHCP
GNSS Bias 2.7–5 VDC; Current 20 mA max / 10 mA typical
Connector / Cable

Connectors: Cellular/GNSS: SMA plug; Wi-Fi: reverse-polarity SMA plug

Cable: Cellular/Wi-Fi: LL-195; GNSS: RG-174

Length: All paths: 15 ft (4.5 m)
Mounting 7/8 in (22 mm) feed-through; 3/4 in (19 mm) thread for surfaces up to 1/2 in (13 mm); 1 sq ft ground plane recommended for stud mount
Dimensions 5.50 in diameter × 2.38 in high (139 × 60 mm)
Material

Housing: ASA UV-inhibitive plastic

Base: Corrosion-resistant aluminum
Environmental Rating / Qualifications

Ingress: IP69K (stud mount, when properly mounted)

Qualifications: IEEE 1478; EN 61373; MIL-810G; TIA-329.2-C

Standards: RoHS compliant
Operating Temperature −40°C to +80°C

Models & Configurations

Model / Configuration Configuration Details
LTMG608-3C3C3C3C3C2C-WHT-180 2× 5G/LTE elements; 3× Wi-Fi elements; 1× GLONASS/GPS element; Stud / through-hole; White radome; 5× LL-195; 1× RG-174; 6× SMA Plug; All cables: 180 in (15 ft)
LTMG608-3C3C3J3J3J2C-WHT-180 2× 5G/LTE elements; 3× Wi-Fi elements; 1× GLONASS/GPS element; Stud / through-hole; White radome; 5× LL-195; 1× RG-174; 3× SMA Plug; 3× Rev Pol SMA Plug; All cables: 180 in (15 ft)
