LTMG931 (3x LTE, WiFi, GNSS)

LTMG931 (3x LTE, WiFi, GNSS)

Zebra L10 LTE, Wi-Fi, and GNSS Antenna

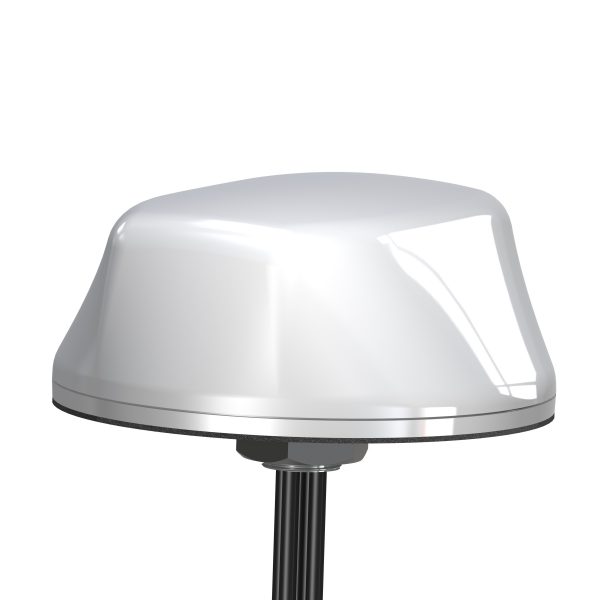

The LTMG931 is a five-cable surface-mount antenna for the Android version of the Zebra L10, providing three LTE paths, one Wi-Fi path, and a low-voltage GNSS connection matched to the device.

Key Features

  • Connects the Android Zebra L10 through three independent LTE paths.
  • Adds a dedicated dual-band Wi-Fi connection for the device.
  • Matches the Zebra L10 with a specialized 1.8 V GNSS module.
  • Consolidates five RF connections at one compact mounting point.
  • IP67-rated construction protects internal components when properly mounted.

Available exclusively through our distributor partners


Tessco Technologies

Tessco Technologies
SKU: 215399

View product at Tessco →


SYNNEX

TD SYNNEX
SKU: 5924989

Visit TD SYNNEX →

Zebra dealers in EMEA:
This model is also available through Mobile Mark Europe Ltd.

european_enquiries@mobilemark.com.

REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

Purpose-Built Connectivity for the Zebra L10.

The LTMG931 is a surface-mount antenna designed for the Android version of the Zebra L10. It places three LTE paths, one dual-band Wi-Fi path, and a specialized low-voltage GNSS connection in one compact five-cable housing.

Three LTE Connections: Three independently cabled cellular elements cover 694–960 and 1710–3700 MHz for the compatible Zebra mobile-computing installation.

Dedicated Dual-Band Wi-Fi: A separate Wi-Fi element covers 2.4–2.5 and 4.9–6.0 GHz for the device’s wireless connection.

Matched Low-Voltage GNSS: The active GNSS module operates at 1.8 VDC and supports positioning at 1561, 1575, and 1602 MHz for the Android Zebra L10 configuration.

Protected Vehicle Installation: When properly mounted, IP67-rated construction helps keep dust and water from reaching internal components. UV-inhibitive ASA, corrosion-resistant aluminum, and a −40 °C to +80 °C operating range protect the antenna across exposed vehicle conditions.

The LTMG931 keeps the Zebra L10’s cellular, Wi-Fi, and positioning connections within one purpose-matched vehicle antenna.

Ideal Applications

  • Android Zebra L10 vehicle installations
  • Zebra L10 cellular connectivity
  • Zebra L10 Wi-Fi connectivity
  • Zebra L10 navigation and positioning

Example Model Configurations: LTMG931-3C3C3CW3JG2C-WHT-180-SP529, LTMG9313C3C3CW3CG2CWHT180SP580

Key Specifications

Feature Specification
Technology 4G LTE, GNSS, Wi-Fi
Frequency

Cellular: 694–960 MHz; 1710–3700 MHz

Wi-Fi: 2.4–2.5 GHz; 4.9–6.0 GHz

GNSS: 1561, 1575, and 1602 MHz
Gain

Cellular: 2 dBi low band; 5 dBi high band

Wi-Fi: 5 dBi

GNSS: 1.5 dBi RHCP; 16 dB LNA
Configuration 3 × cellular; 1 × Wi-Fi; 1 × GNSS
Bands

LTE: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 85, 103, 106, 111
MIMO

Cellular: MIMO configuration
Polarization

GNSS: RHCP
GNSS Bias 1.8 VDC ±0.2 V; Current 3.2 mA max
Connector / Cable

Connectors: Cellular/GNSS: SMA plug; Wi-Fi: reverse-polarity SMA

Cable: Cellular/Wi-Fi: LL-195; GNSS: RG-174

Length: All paths: 15 ft (4.5 m)
Mounting 7/8 in (22 mm) feed-through; 3/4 in (19 mm) thread for surfaces up to 1/2 in (13 mm); 1 sq ft ground plane recommended for stud mount
Dimensions 5.50 in diameter × 2.38 in high (139 × 60 mm)
Material

Housing: ASA UV-inhibitive plastic

Base: Corrosion-resistant aluminum
Environmental Rating / Qualifications

Ingress: IP67 (when properly mounted)

Qualifications: IEEE 1478; EN 61373; MIL-810G; TIA-329.2-C

Standards: RoHS compliant
Operating Temperature −40°C to +80°C

Models & Configurations

Model / Configuration Configuration Details
LTMG931-3C3C3CW3JG2C-WHT-180-SP529 3× LTE elements; 1× Wi-Fi element; 1× GLONASS/GPS element; Stud / through-hole; White radome; Cellular/Wi-Fi: LL-195; GNSS: RG-174; Cellular/GNSS: SMA plugs; Wi-Fi: RP-SMA plug; All cables: 180 in (15 ft); Jumpers not included; SP529 (no jumpers)
LTMG9313C3C3CW3CG2CWHT180SP580 3× LTE elements; 1× Wi-Fi element; 1× GLONASS/GPS element; Stud / through-hole; White radome; Cellular/Wi-Fi: LL-195; GNSS: RG-174; SMA plug on each cable; All cables: 180 in (15 ft); SP580: customer-specific 1.8 V GNSS
