LTMG942 (4x LTE, 2x WiFi 6E, GNSS)

LTMG942 (4x LTE, 2x WiFi 6E, GNSS)

LTE, Wi-Fi 6E, and GNSS Antenna

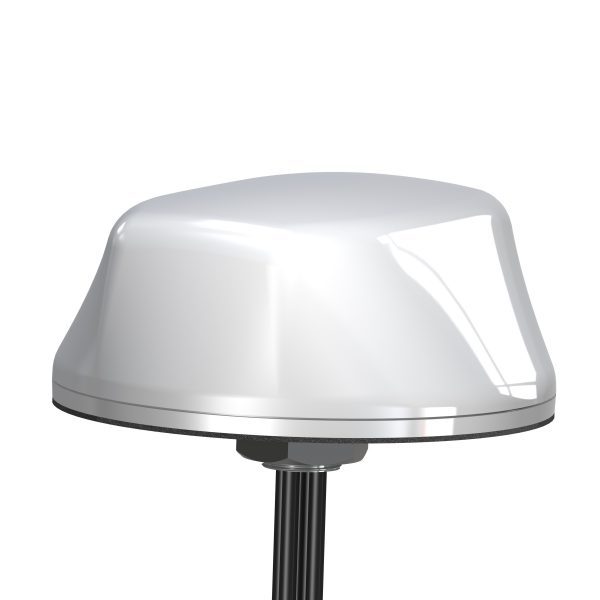

The LTMG942 is a seven-element low-profile vehicle antenna that supports flexible four-path LTE, 2×2 Wi-Fi 6E, and active GNSS from one roof-mounted unit.

Key Features

  • Accommodates one 4×4 LTE radio or two independent 2×2 radios.
  • Expands onboard Wi-Fi capacity with a separate 2×2 Wi-Fi 6E connection.
  • Adds multi-constellation navigation and tracking without another roof antenna.
  • Consolidates seven RF connections to preserve roof space for other equipment.
  • Rugged housing protects cellular, Wi-Fi, and GNSS connections in harsh conditions.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

Seven Connections. LTE, Wi-Fi 6E, and GNSS.

The LTMG942 combines four LTE paths, two Wi-Fi 6E paths, and active GNSS in one low-profile roof-mounted antenna for fleet and transportation vehicles. Its seven-element architecture supports flexible cellular, onboard wireless, and positioning connections while preserving roof space for other equipment.

Flexible LTE Connectivity: Four independently cabled LTE elements support one compatible 4×4 radio or two separate 2×2 radio groups.

2×2 Wi-Fi 6E Support: Two Wi-Fi elements cover 2.4–2.5 and 4.9–7.2 GHz with 5 dBi gain for compatible onboard 2×2 equipment.

Integrated Multi-Constellation GNSS: The active positioning element supports GPS, Galileo, GLONASS, QZSS, and BeiDou without another roof-mounted antenna.

Rugged Multi-System Protection: The IP69K-rated stud mount helps keep dust and high-pressure water from reaching internal components. UV-inhibitive ASA, corrosion-resistant aluminum, and a −40 °C to +80 °C operating range protect against sun, moisture, extreme heat, and cold.

The LTMG942 provides flexible cellular capacity, 2×2 Wi-Fi 6E, and positioning in one compact vehicle antenna.

Ideal Applications

  • 4×4 LTE vehicle routers
  • Dual 2×2 cellular radio installations
  • 2×2 onboard Wi-Fi 6E networks
  • Vehicle navigation and tracking

Example Model Configurations: LTMG942-A3CB3CW3JG2C-WHT-180, LTMG942-A7CB7CW7CG2C-WHT-12-SP529

Key Specifications

Feature Specification
Technology 4G LTE, GNSS, Wi-Fi 6E
Frequency

Cellular: 694–960 MHz; 1710–3700 MHz

Wi-Fi: 2.4–2.5 GHz; 4.9–7.2 GHz

GNSS: 1561, 1575, and 1602 MHz
Gain

Cellular: 2 dBi low band; 5 dBi high band

Wi-Fi: 5 dBi

GNSS: 5 dBi RHCP; 26 dB ±3 dB LNA
Configuration 4 × cellular; 2 × Wi-Fi; 1 × GNSS
Bands

LTE: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 85, 103, 106, 111
MIMO

Cellular: Single-carrier 4×4 MIMO or dual-carrier 2×2 MIMO
Polarization

GNSS: RHCP
GNSS Bias 2.7–5 VDC; Current 20 mA max / 10 mA typical
Connector / Cable

Connectors: Cellular/GNSS: SMA; Wi-Fi: reverse-polarity SMA

Cable: 1 ft LMR-100 cellular/Wi-Fi pigtails and RG-174 GNSS pigtail; 14 ft LL-195 cellular/Wi-Fi and RG-174 GNSS jumpers

Length: 1 ft pigtails plus 14 ft jumpers
Mounting 7/8 in (22 mm) feed-through; 3/4 in (19 mm) thread for surfaces up to 1/2 in (13 mm); 1 sq ft ground plane recommended for stud mount
Dimensions 5.50 in diameter × 2.38 in high (139 × 60 mm)
Material

Housing: ASA UV-inhibitive plastic

Base: Corrosion-resistant aluminum
Environmental Rating / Qualifications

Ingress: IP69K (stud mount)

Qualifications: IEEE 1478; EN 61373; MIL-810G; TIA-329.2-C

Standards: RoHS compliant
Operating Temperature −40°C to +80°C

Models & Configurations

Model / Configuration Configuration Details
LTMG942-A3CB3CW3JG2C-WHT-180 4× LTE elements; 2× Wi-Fi elements; 1× GLONASS/GPS element; Stud / through-hole; White radome; Cellular/Wi-Fi: LL-195; GNSS: RG-174; Cellular/GNSS: SMA plugs; Wi-Fi: RP-SMA plugs; All paths: 180 in (15 ft); Jumpers included
LTMG942-A7CB7CW7CG2C-WHT-12-SP529 4× LTE elements; 2× Wi-Fi elements; 1× GLONASS/GPS element; Stud / through-hole; White radome; GNSS: RG-174; Cellular/Wi-Fi: SMA plugs; GNSS: SMA plug; All cables: 12 in (1 ft); Jumpers not included; SP529 (no jumpers)

Tech Documents & Resources

LTMG942 Spec Sheet


File size: 509.72 KB
Created: 08-12-2020
Updated: 02-12-2024
Hits: 2952
Download Preview
