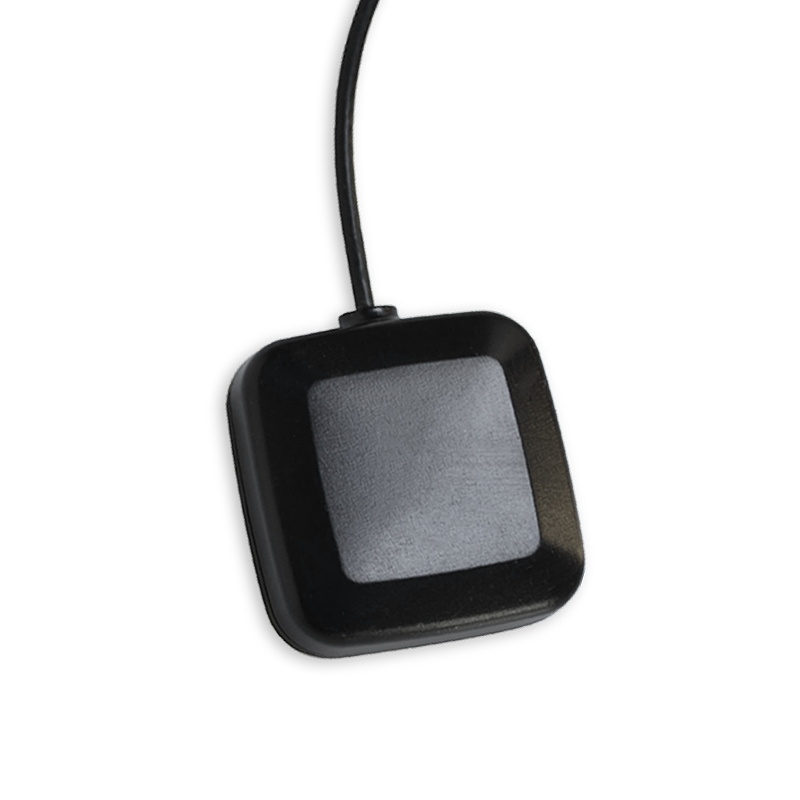

MAG-NAV (GPS/GLONASS, Magnetic-Mount)

Legacy GPS/GLONASS Magnetic Antenna

Discontinued

This product has been discontinued.
View MTB-GNSS

The discontinued MAG-NAV configuration combines active GPS/GLONASS reception with a portable magnetic mount and ten-foot cable.

REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

The discontinued MAG-NAV configuration combines active GPS/GLONASS reception with a portable magnetic mount and ten-foot cable.

The black magnetic-mount configuration includes ten feet of RG-174 cable and an SMA plug.

Ideal applications:

Example Model Configurations: MAG-NAV-2C-BLK-120

Key Specifications

Feature	Specification
Technology	GNSS
Frequency	GNSS: 1561, 1575 and 1602 MHz
Gain	GNSS: 5 dBi nominal RHCP antenna; 26 dB LNA
Polarization	GNSS: RHCP
Connector / Cable	Configuration scope: Listed MAG-NAV-2C-BLK-120 configuration Connectors: GNSS: SMA plug (male) Cable: GNSS: RG-174 Length: GNSS: 10 ft / 120 in
Mounting	Magnetic attachment to a flat metal surface; generic magnet-mount routing and placement guidance applies.
Dimensions	2.0 in long x 1.75 in wide x 0.56 in high
Environmental Rating / Qualifications	Ingress: IPX5

Models & Configurations

Model / Configuration	Configuration Details
MAG-NAV-2C-BLK-120	GLONASS/GPS; Magnetic mount; Black; Cable: RG-174; SMA Plug; Cable length: 10 feet
