MXFG408, MXFG402

MXFG402 (2× LTE, Wi-Fi, GNSS)

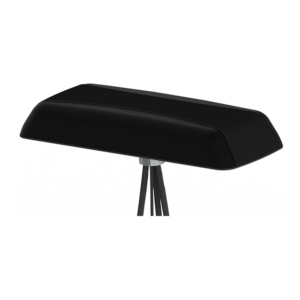

4-in-1 LTE, Dual-Band WiFi and GNSS MaxFin Antenna

The MXFG402 adds dual-band WiFi and GNSS to a two-feed LTE platform for fleet and roadside systems.

  • Supports 2×2 LTE through two broadband cellular elements.
  • Adds one 2.4/5 GHz WiFi connection.
  • Provides active GNSS across five satellite constellations.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

The MXFG402 brings LTE diversity, dual-band WiFi and GNSS together in a four-cable MaxFin antenna. It fits systems that need a single local WiFi connection alongside two cellular feeds and positioning.

Three radio functions: Two LTE elements, one WiFi element and one active GNSS element share the same 7.5-inch housing.

Fleet and roadside fit: The through-hole mount and 15-foot cables support vehicle roofs, roadside units and traffic-management enclosures.

Example Model Configurations: MXFG402-3C3C3C2C-BLK-180

Key Specifications

Feature Specification
Technology LTE, Wi-Fi, GNSS
Frequency

Cellular: 694-960 MHz; 1710-3700 MHz

Wi-Fi: 2400-2500 MHz; 4900-6000 MHz

GNSS: 1561 MHz; 1575 MHz; 1602 MHz
Gain

Cellular: 0-3 dBi at 694-960 MHz; 4 dBi at 1710-3700 MHz

Wi-Fi: 5 dBi

GNSS: 5 dBi; 26 dB LNA
Configuration 2 × cellular; 1 × Wi-Fi; 1 × GNSS
MIMO

Cellular: 2×2 MIMO-capable
GNSS Bias 3-5 VDC; 20 mA max, 10 mA typical
Connector / Cable

Connectors: Cellular: 2 x SMA plug (male); Wi-Fi: 1 x SMA plug (male); GNSS: 1 x SMA plug (male)

Cable: Cellular / Wi-Fi: LL-195; GNSS: RG-174

Length: All RF groups: 15 ft (4.5 m)
Mounting Stud feedthrough mount; magnetic-mount variant is documented for the family; Ground-plane dependent; 1 sq ft ground plane recommended
Dimensions 7.50 in L x 2.25 in W x 2.50 in H (190×57×64 mm); magnetic-mount height 2.95 in (75 mm)
Material

Housing: ASA UV-stable / UV-inhibitive plastic
Environmental Rating / Qualifications

Ingress: IP69K stud mount; IP67 magnetic mount, when properly mounted

Qualifications: IEEE 1478; EN 61373; MIL-STD-810G; TIA-329.2-C shock and vibration
Operating Temperature −40°C to +80°C

Models & Configurations

Model / Configuration Configuration Details
MXFG402-3C3C3C2C-BLK-180 GLONASS/GPS; 694-960/1710-3700 MHz; 2.4-2.5/4.9-6 GHz; 4 cables; Black; Cable: LL-195; RG-174; SMA Plug; Cable length: 15 ft
