PNMG944 (4× 5G/LTE, 4× Wi-Fi 6E/7, GNSS)

Nine-Feed 5G, Wi-Fi 6E/7 and GNSS Antenna

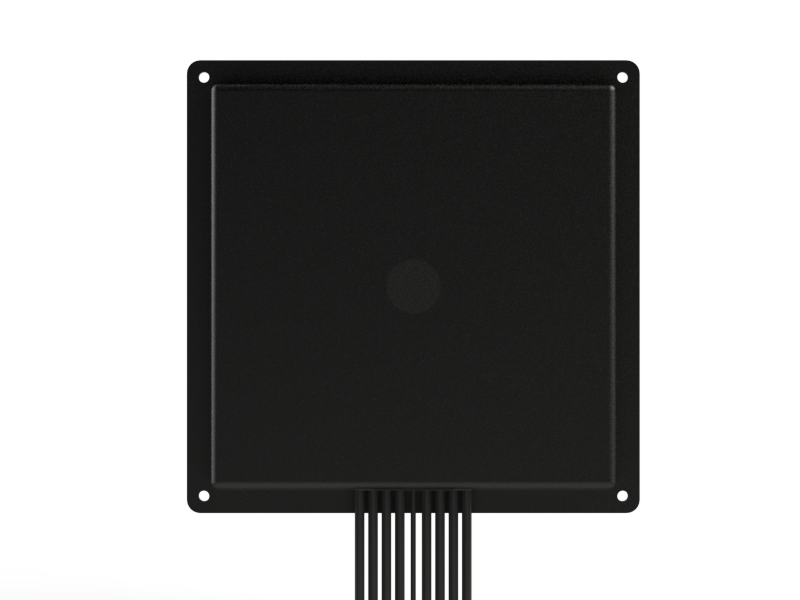

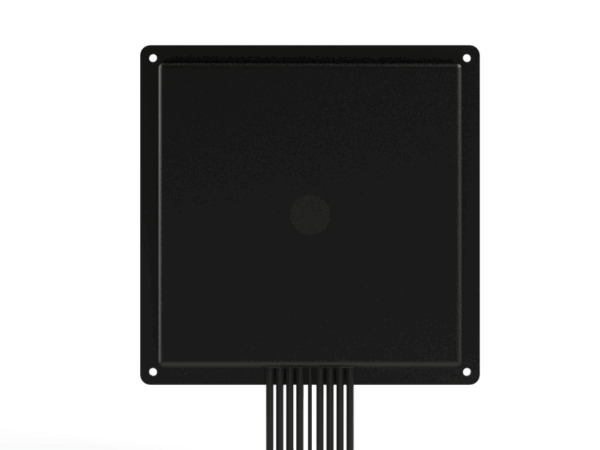

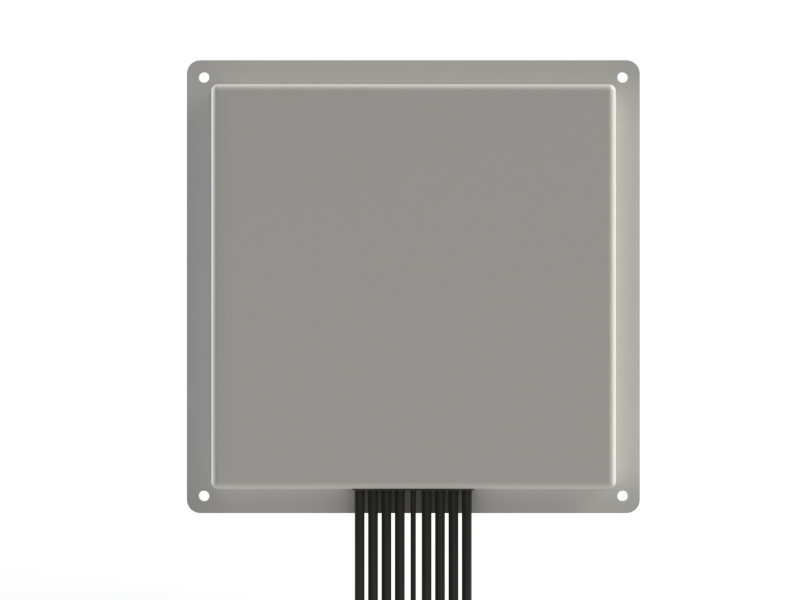

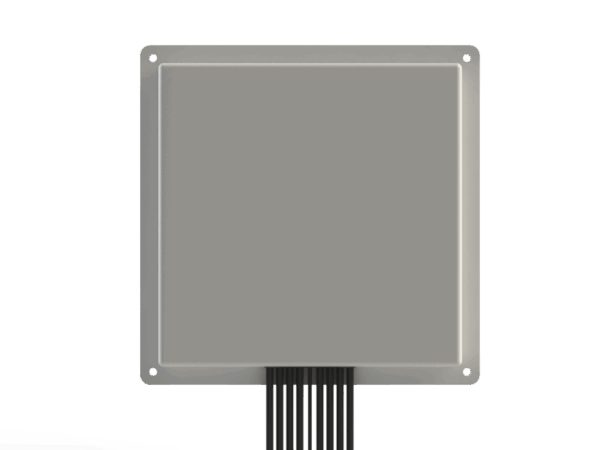

The PNMG944 combines four cellular, four Wi-Fi 6E/7, and one GNSS feed in a covert wall-mount panel.

BUY ONLINE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

The PNMG944 combines four cellular, four Wi-Fi 6E/7, and one GNSS feed in a covert wall-mount panel.

Four cellular feeds, four Wi-Fi feeds, and one GNSS feed fit inside an 8.5-inch square panel.

Ideal applications:

Example Model Configurations: PNMG944-CJC-BLK-120

Key Specifications

Feature	Specification
Technology	5G NR; 4G LTE; Wi-Fi 6E/7; GNSS; GPS; Galileo; GLONASS; BeiDou; QZSS
Frequency	Cellular: 617-960 MHz and 1710-7200 MHz Wi-Fi: 2.4-2.5 GHz and 4.9-7.2 GHz GNSS: 1561, 1575, and 1602 MHz
Gain	Cellular: 2 dBi at 617-960 MHz and 5 dBi at 1710-7200 MHz Wi-Fi: 5 dBi GNSS antenna: 4 dBiC
Configuration	9 independent RF feeds: 4 cellular, 4 Wi-Fi, 1 GNSS
MIMO	Cellular: 4×4 MIMO Wi-Fi: 4×4 MIMO
Connector	All paths: SMA plugs (male)
Cable	Cellular/Wi-Fi: LL-195 GNSS: RG-174 All paths: 10 ft / 120 in
Mounting	Mounting holes or industrial adhesive
Dimensions	8.5 in length x 8.5 in width x 0.75 in height (216 x 216 x 19 mm)
Material	Housing: UV-stable ASA plastic
Maximum Input Power	Cellular/Wi-Fi: 10 W maximum
Active GNSS	Type: Active LNA gain: 26 dB ±3 dB Bias: 3-5 VDC; 20 mA maximum, 10 mA typical
Operating Temperature	-40 °C to +80 °C

Models & Configurations

Model / Configuration	Configuration Details
PNMG944-CJC-BLK-120	4x5G LTE; 4xWIFI 6E; 1xGNSS; 617-960/1710-7200 MHz; 2.4-2.5/4.9-7.2 GHz; Wall mount; Black; Cable: LL-195; RG-174; SMA-plug; Rev. Pol. SMA-plug
