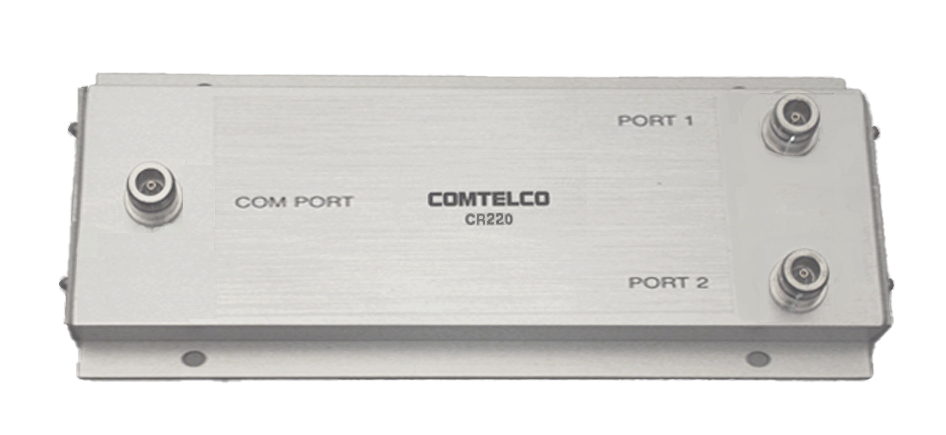

RC220-2 (Wide Band Coupler/Stacker)

Custom Couplers

Frequency Ranges: 200 – 400MHz
Construction: Anodized Aluminum (sealed element structure)
Termination: Type “N” Female
Mounting: Mounting Flange

Categories:

Description

The RC220-2 is a wideband power divider type coupler. It can be used to combine two antennas with minimum system loss. It is rated at 125 Watts and weighs less than 2 lbs. This model’s Frequency coverage is 200-400 MHz. The Radome for this product is 5″ x 11.5″. As a splitter, this unit provides maximum signal transfer between any combination of omni-directional or directional antennas.


Specifications

RC220-2mm
