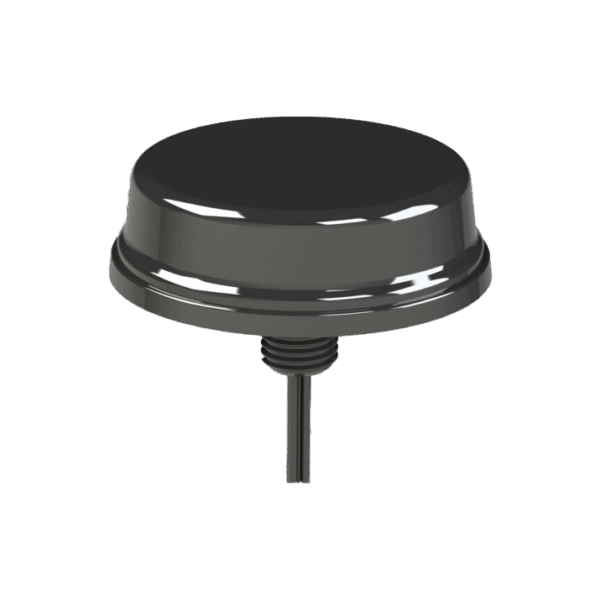

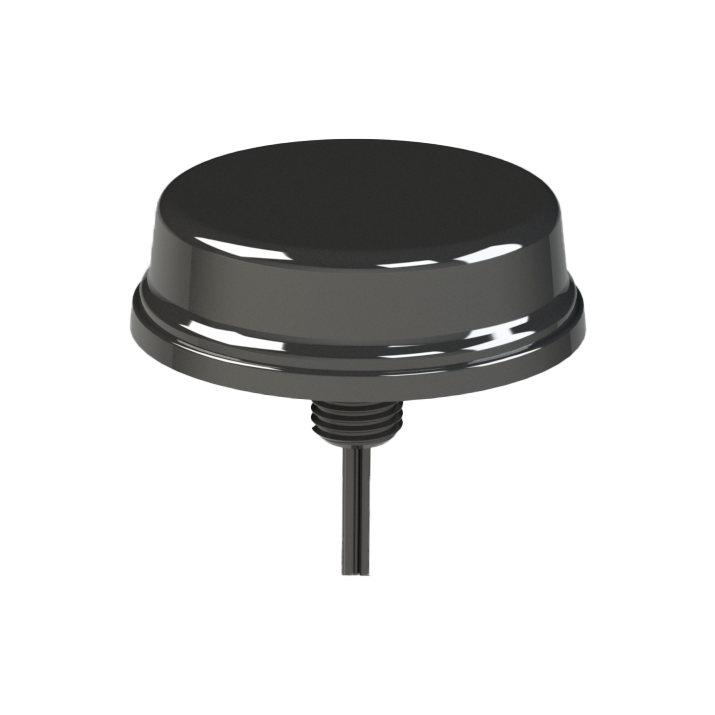

SMHG-W5 (4x WiFi 6E/7, 1x GNSS)

Low Profile WiFi 6E MIMO Antenna w/ GNSS

5 cables: four WiFi 6E/7 & one GNSS

Cable 1 – 5: 2.4-2.5 & 4.9-7.2 GHz, 4 dBi
Cable 5 (GNSS): 1561, 1575, & 1602 MHz, LNA 26 dB ±3 dB, 4 dBiC
Bands: GPS: L1
Galileo: E1
GLONASS: L1
Biedou: B1C
QZSS: L1C

Categories:

GPS GNSS Multiband by Model, SMH Series

Description

The SMHG-W5 is a 5-cable antenna with four WiFi 6e/7 and one GNSS. It is a low profile, surface mount, and MIMO antenna that supports the WiFi 6e/7 bands, along with three GNSS bands. This SMH model is ideal for High-Speed WiFi hotspot communication systems.

With a rugged UV rated ASA radome, the SMHG-W5 is water resistant, vibration and shock resistant, making it easy to mount to a roof, truck or bulkhead.

This antenna is ideal for applications such as Medical IoT, Industrial IoT, Wi-Fi Hotspot, Remote Monitoring, and Smart Cities.

A model without GNSS (SMH-W4) is available as well.

Order Restrictions apply.
