TMA-49-5VT

TMA-49-5VT (4.4–5.0 GHz Tactical Mesh)

5 dBi Tactical Mesh Antenna for 4.4–5.0 GHz

The TMA-49-5VT covers 4400–5000 MHz with 5 dBi gain in a compact, water-resistant surface-mount housing for rugged military mobile networks.

  • Covers 4400–5000 MHz with 5 dBi gain.
  • Provides a 360-degree azimuth pattern with vertical polarization.
  • Uses an N-female connection in a compact, water-resistant radome.
  • Available for United States military or export use only.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

The TMA-49-5VT provides omnidirectional 4400–5000 MHz coverage for rugged and mobile tactical mesh networks. Its vertically polarized element delivers 5 dBi gain with a 360-degree azimuth pattern.

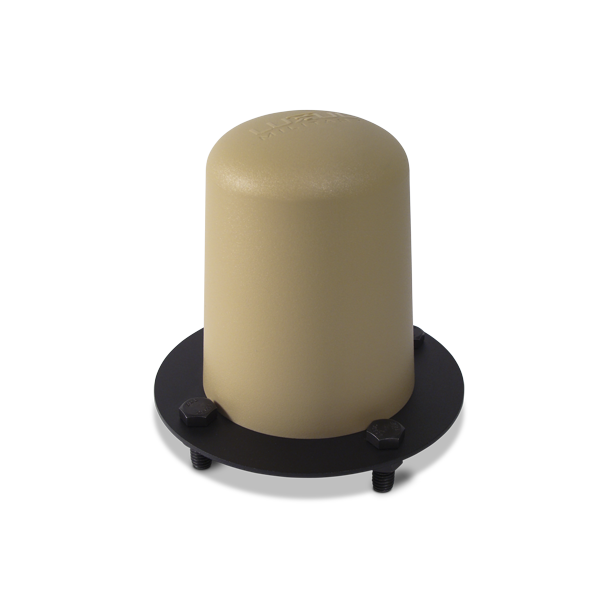

The 4.4-inch-diameter, 5.5-inch-high radome is molded from impact-resistant, UV-stabilized polycarbonate and connects through an N-female interface. Its compact, water-resistant construction suits vehicle and other space-constrained installations.

Availability: This model is available for United States military or export use only.

Example Model Configurations: TMA-49-5VT

Key Specifications

Feature Specification
Technology Tactical mesh / wireless networking
Frequency

Tactical RF: 4400-5000 MHz
Gain

Tactical RF: 5 dBi
Configuration Tactical RF (feeds 1)
Polarization

Tactical RF: Linear vertical
Connector

Tactical RF connector: N female
Mounting Surface mount
Dimensions 5.5 in high x 4.4 in diameter (14 cm x 11.2 cm)
Material Impact-resistant, UV-stabilized polycarbonate
Environmental Rating / Qualifications

Construction: Water-resistant construction
Operating Temperature -40 to 70 °C

Models & Configurations

Model / Configuration Configuration Details
TMA-49-5VT 4.4-5 GHz; 5 dBic gain; n-; N-Jack
