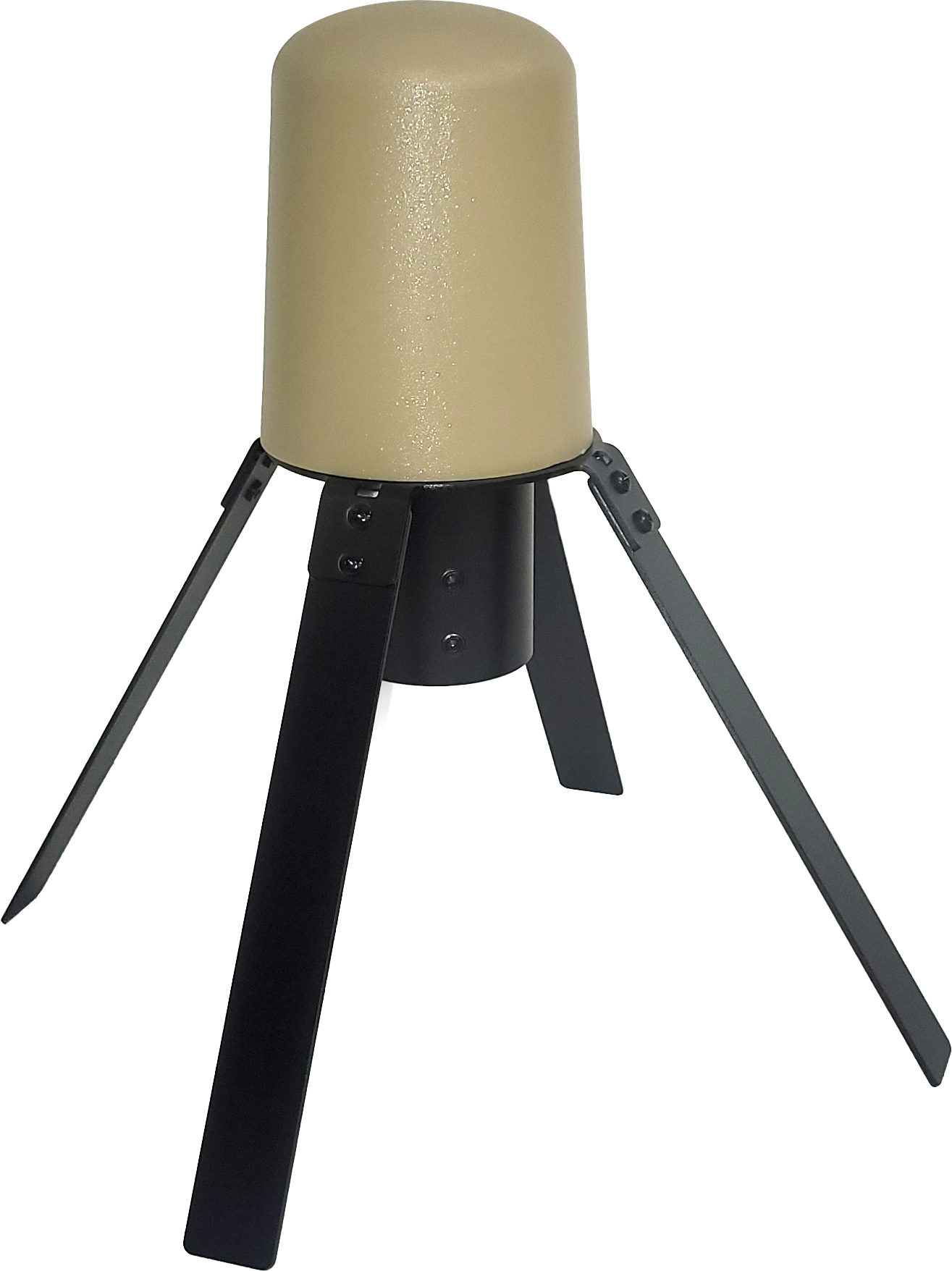

TMA-GPK Ground Plane Kit

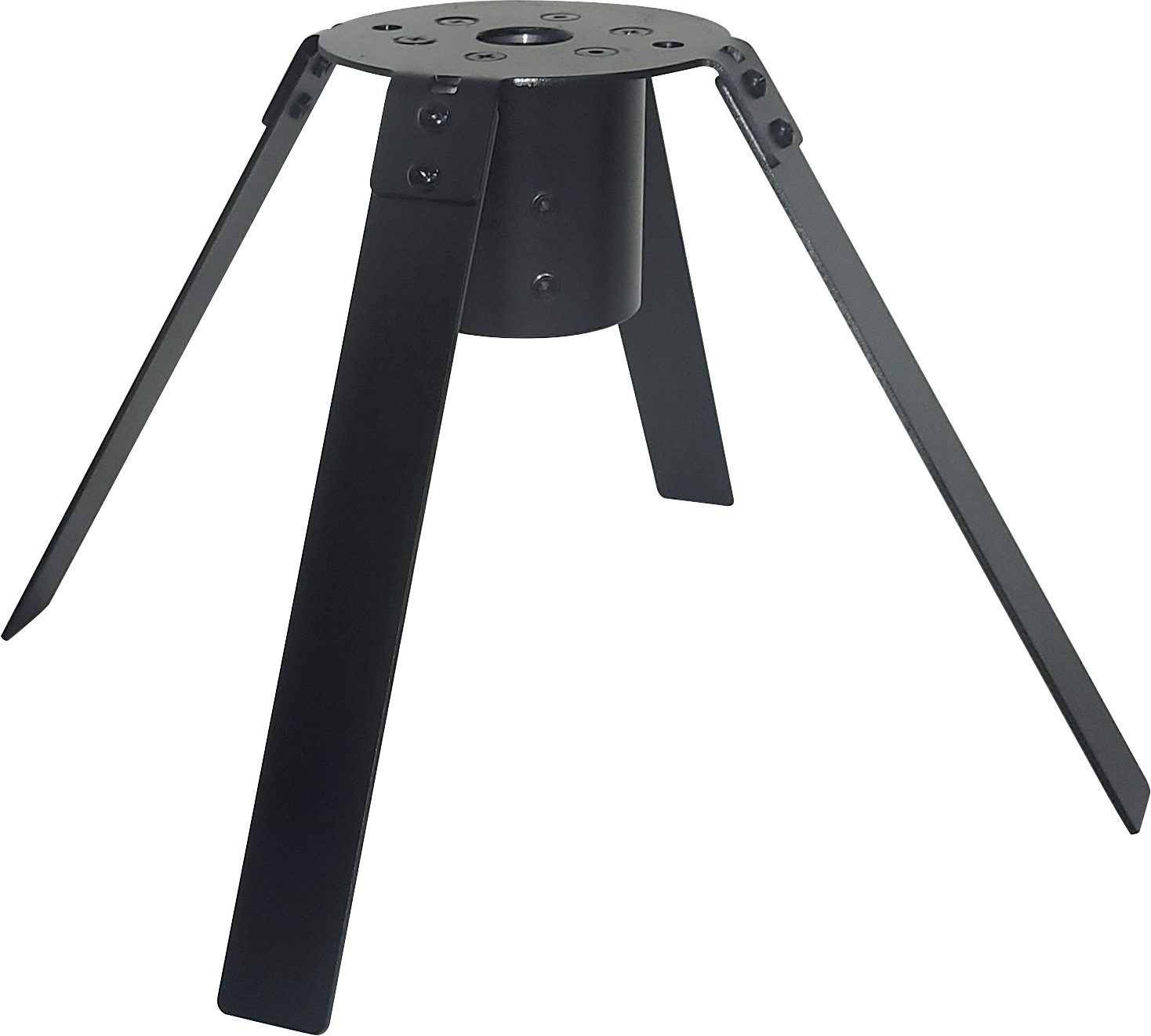

TMA-GPK Ground Plane Kit - Image 2

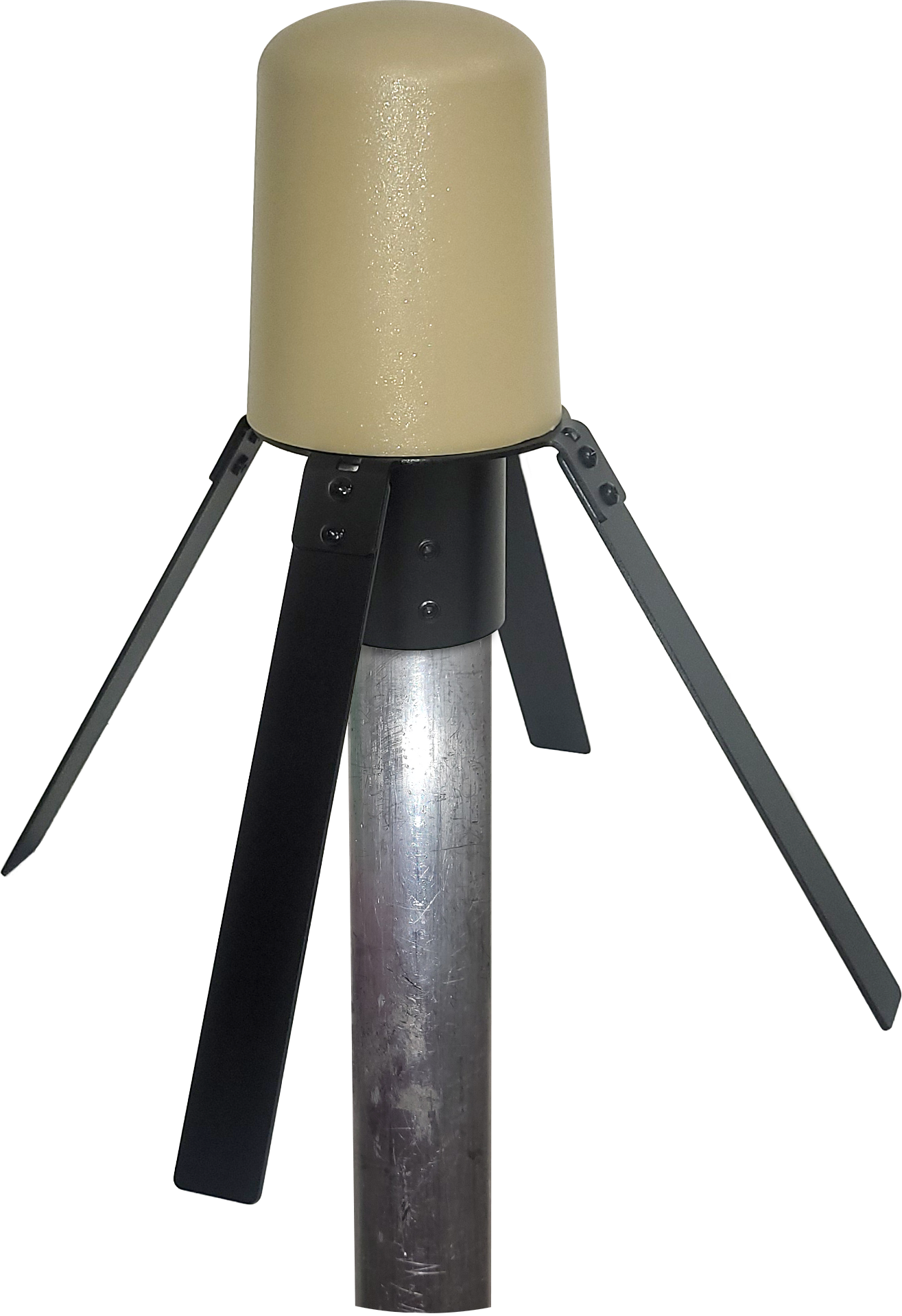

TMA-GPK Ground Plane Kit - Image 3

TMA-GPK Ground Plane Kit

Ground Plane Kit for the TMA-WB1

  • Complete System Conversion: Seamlessly transforms the TMA-WB1 into a full ground-plane antenna system to maximize performance.

  • Superior Signal Coverage: Maintains a horizon-level radiation pattern, ensuring wide-area monitoring without signal degradation.

  • Ultra-Wideband Ready: Fully supports monitoring and detection across a massive range from 300 MHz to 7200 MHz.

  • High Power Capacity: Robust electrical design handles up to 300 Watts, suitable for intensive transmission and defense applications.

  • Rugged Versatility: Constructed from black powder-coated aluminum for weather resistance and compatible with various mounting hardware for tower or wall setups.

Primary Applications

  • Drone Detection & Jamming: Reliable signal interruption and defense against unauthorized aerial systems.

  • Spectrum Surveillance: High-fidelity RF monitoring and situational awareness for threat detection.

  • Electronic Countermeasures: Crucial for wideband RF disruption and defensive signal analysis.

Categories:
, ,

Description

The TMA-GPK Ground Plane Kit is a professional-grade bracket designed to convert the TMA-WB1 antenna into a complete ground-plane system. Engineered for high-stakes environments like drone detection and RF monitoring, this kit ensures your equipment maintains a consistent horizon-level radiation pattern, preventing signal drop-off and providing wider, more reliable coverage across the 300–7200 MHz spectrum.

Built from powder-coated aluminum, the kit is designed for durability in permanent outdoor installations, whether mounted on a tower, pole, or wall. By providing a stable electrical foundation, it allows the antenna to operate at peak efficiency, supporting up to 300 Watts of RF power. This is a field-tested solution for teams requiring precision in signal analysis and electronic countermeasures where blind spots are not an option.

Feature Specification
Frequency Range 350 MHz – 7200 MHz
Power Handling 300 Watts
V.S.W.R. <2:1 typ., <3:1 max
Dimensions 12.1″ H x 11.9″ W (30.7cm x 30.2cm) w/ antenna and pole adapter
Material Powder-coated Aluminum
Color Black
Mounting Options Tower, Wall, or Pole (up to 1.65″ diameter)

Specifications

TMA-GPK Spec Sheet Rev 2

File size: 1.08 MB
Created: 07-05-2026
Updated: 07-05-2026
Hits: 5
Download Preview
