XW-4XO-FP14

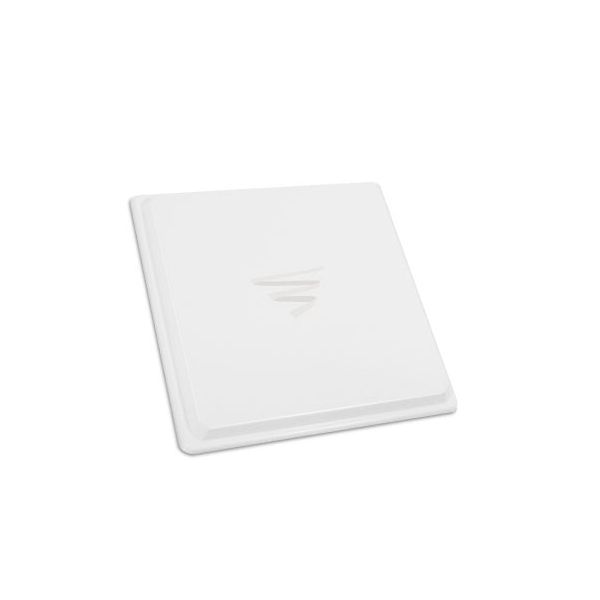

XW-4XO-FP14 (14 dBi 4.4–4.6 GHz)

14 dBi 4.4–4.6 GHz Military-Band Panel Antenna

The XW-4XO-FP14 provides 14 dBi RHCP gain across 4.4–4.6 GHz for fixed military-band point-to-point and multipoint links.

  • Covers the 4.4–4.6 GHz military communications range.
  • Produces a focused 35° × 33° RHCP beam.
  • Provides 29 dB front-to-back ratio for directional path control.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

The XW-4XO-FP14 is a purpose-built 4.4–4.6 GHz panel for secure military-band fixed wireless systems. Its 14 dBi RHCP pattern supports focused point-to-point and point-to-multipoint paths.

Directional control: A 35° azimuth by 33° elevation beam and 29 dB front-to-back ratio concentrate coverage toward the intended endpoint.

Mounting choice: The XO configuration includes outdoor mounting hardware; the XI companion version is intended for indoor placement.

Ideal applications:

  • Military fixed wireless links
  • Secure point-to-point paths
  • Military-band multipoint networks

Example Model Configurations: XW-4XO-FP14

Key Specifications

Feature Specification
Technology Secure military-band communications
Frequency

Military / government: 4400-4600 MHz
Gain

Military / government: 14 dBi
Polarization

Military / government: RHCP
Connector

Military / government connector: 1 x N jack (female)
Mounting Two 1/4-20 × 1/2 in studs; HDW-AM-UOD outdoor mounting bracket is supplied
Dimensions 8 × 8 × 1.6 in (203.2 × 203.2 × 40.64 mm)

Models & Configurations

Model / Configuration Configuration Details
XW-4XO-FP14 4.4-4.6 GHz; 14 dBic gain; White; N-Jack
