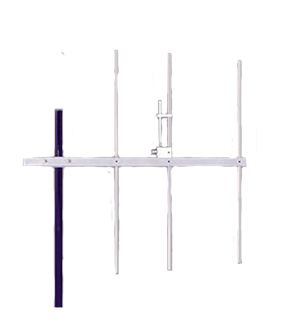

Y3313C & Y3323C Series (3-Element VHF/200–220 MHz Yagi)

The Y3313C and Y3323C Series give fixed radio systems a common three-element Yagi platform across two different operating regions. Y3313C variants cover 144–174 MHz, while Y3323C variants extend the family into 200–250 MHz.

Shared performance: Both families provide 6 dBd gain, 18 dB front-to-back ratio, and 300 W power handling.

Band selection: Choose the suffix whose tuned sub-band contains the operating channels rather than treating either antenna as continuous across the full family range.

The C termination denotes an SO-239 feed connection, and the antenna may be oriented for vertical or horizontal polarization.

Example Model Configurations: Y3313C-A, Y3313C-B, Y3313C-C, Y3313C-D, Y3313C-E, Y3323C-B
