LLPG 02 Series

Low Profile Multi-Band Antenna

Cellular LTE, WiFi & GNSS

The LLPG 02 Series antennas always includes two Cellular antennas, up to four WiFi antennas and one GNSS antenna.

The Cellular LTE ready elements cover the frequency range of 694-960 & 1710-3700 MHz. This includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.

The  GNSS element  operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz. This provides MIMO (multiple-input-multiple-output) coverage for both Cellular and WiFi.

The LLPG 02 Series is ideal for fleet management systems that combine GNSS with a broadband cellular modem as well as a WiFi MIMO modem. The antennas can be mounted in a fixed location, or they can be mounted on any mobile vehicle including car, truck, or bus.

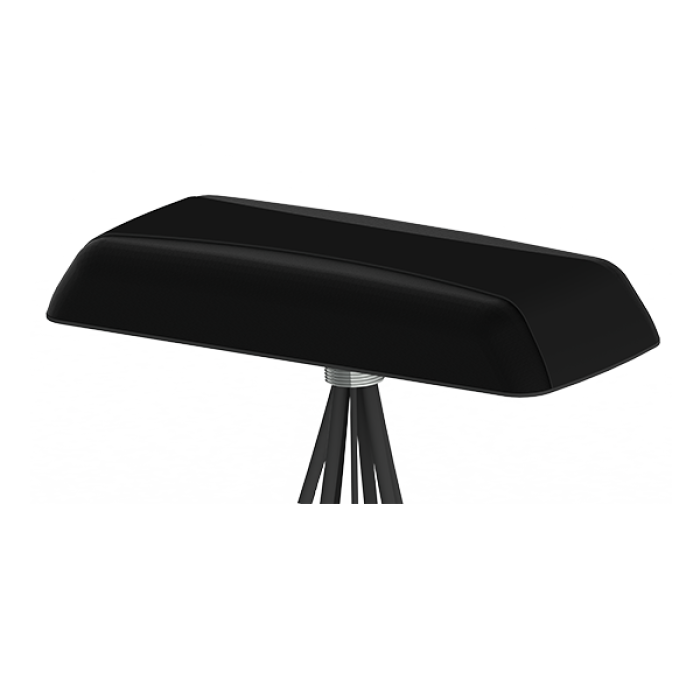

This extremely low profile antenna measures at just 9 inches (22.8 cm) by 3.5 inches (8.9 cm) with a low profile of 1.25 inches (31.8 mm). It can be manufactured in either black or white depending on the preference of the customer. Customers will find that one LLPG 02 series takes up significantly less space than multiple antennas, giving it a distinct advantage for mobile applications.

All of the wideband antennas presented here offer coverage up to 3.7 GHz, but a full line of antenna covering 600 MHz – 6000 MHz can be found on our Sub-6 5G-ready 6-2-6 industry section.

The LLPG02 Series always contains 2x Cellular LTE elements, but it can also be configured with up to 4 WiFi elements. The model numbers will change as follows:

LLPG302: 2x5G, 1xGNSS
LLPG402: 2x5G, 1xWiFi, 1xGNSS
LLPG502: 2x5G, 2xWiFi, 1xGNSS
LLPG602: 2x5G, 3xWiFi, 1xGNSS
LLPG702: 2X5G, 4xWiFi, 1xGNSS
