LLPG502

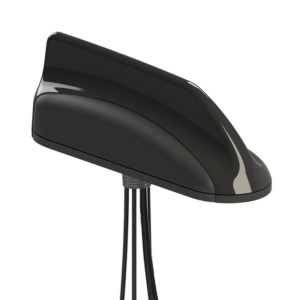

LLPG502 (2× LTE, 2× Wi-Fi, GNSS)

LTE/Wi-Fi MIMO and GNSS Surface-Mount Antenna

The LLPG502 combines 2×2 LTE, 2×2 Wi-Fi, and active GNSS in a balanced five-cable antenna for connected mobile and fixed systems.

  • Delivers independent 2×2 MIMO paths for LTE and Wi-Fi.
  • Adds active GNSS without another positioning antenna.
  • Consolidates five connections to preserve usable mounting space.
  • Covers CBRS-range cellular and dual-band WLAN frequencies.
  • IP69K stud mounting protects internal components from dust and water.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

Two MIMO Systems. One Positioning Feed.

The LLPG502 brings two LTE paths, two Wi-Fi paths, and active GNSS together in one low-profile antenna for fleet and fixed multiband systems.

Balanced Cellular and Wi-Fi MIMO: Two LTE elements and two Wi-Fi elements provide separate 2×2 paths for compatible cellular and WLAN radios.

Multi-Constellation GNSS: The fifth connection accesses GPS, Galileo, GLONASS, QZSS, and BeiDou without another roof-mounted unit.

Five Paths, One Footprint: All functions share one 9.00 × 3.50 × 1.25-inch enclosure, preserving mounting space for other equipment.

Protected Surface Mount: IP69K protection at the properly mounted stud, UV-inhibitive ASA, and a −40 °C to +80 °C range support exposed installations.

The LLPG502 balances cellular, Wi-Fi, and positioning requirements in one compact mounting location.

Ideal Applications

  • Advanced multiband modems
  • Tall vehicles with height restrictions
  • Fixed sites with vandalism risk

Example Model Configurations: LLPG502-3C3C3C3C2C-BLK-180

Key Specifications

Feature Specification
Technology 4G LTE; Wi-Fi / WLAN; active GNSS; GPS; Galileo; GLONASS; QZSS; BeiDou
Frequency

Cellular: 694-960 MHz; 1710-3700 MHz

Wi-Fi: 2400-2500 MHz; 4900-6000 MHz

GNSS: 1561; 1575; 1602 MHz
Gain

Cellular: -1 dBi at 694-700 MHz; 1 dBi at 700-730 MHz; 2 dBi at 730-800 MHz; 3 dBi at 800-960 MHz; 4 dBi at 1710-3700 MHz

Wi-Fi: 4 dBi at 2400-2500 MHz; 5 dBi at 4900-6000 MHz

GNSS: 5 dBi RHCP
Configuration 2× Cellular, 2× Wi-Fi, 1× GNSS; 5 RF feeds total
MIMO

Cellular: 2×2

Wi-Fi: 2×2
Polarization

Cellular: Vertical

GNSS: RHCP
Connector / Cable

Cellular / Wi-Fi / GNSS connector: SMA plug (male)

Cellular / Wi-Fi cable: LL-195

GNSS cable: RG-174

All paths cable length: 15 ft (4.5 m)
GNSS

Systems: GPS; Galileo; GLONASS; QZSS; BeiDou

Type: Active

LNA gain: 26 dB

Bias: 2.7-5 VDC; 10 mA typical / 20 mA max
Mounting Through-hole; ground-plane dependent
Ground Plane Required; family manual recommends a 1 sq ft ground plane
Dimensions 9.00 in long × 3.50 in wide × 1.25 in high (228 × 89 × 31.8 mm)
Material

Housing: ASA UV-inhibitive plastic
Environmental Rating IP69K (stud mount, when properly mounted)
Environmental Qualifications IEEE 1478; EN 61373; MIL-810G; TIA 329.2-C
Compliance RoHS compliant
Operating Temperature -40°C to +80°C

Models & Configurations

Model / Configuration Configuration Details
LLPG502-3C3C3C3C2C-BLK-180 GLONASS/GPS; 694-960/1710-3700 MHz; 2.4-2.5/4.9-6 GHz; 5 cables; Black; Cable: LL-195; RG-174; SMA Plug; Cable length: 15 ft
