  • Antenna Solutions for Industrial IoT

Flexible Network Solutions

The Industrial IoT Antenna Solutions different from consumer IoT solutions in three keyways:

  • Flexible enough to accommodate different wireless technologies
  • Dependable enough to offer continuous coverage and real-time data
  • Tough enough to withstand harsh weather or rough treatment

While many Industrial IoT antenna solutions will rely solely on Cellular transmissions, starting with 4G LTE and migrating to 5G.  Some IIoT applications will bring in multiple technologies such as WiFi, GPS, GNSS, ISM, LoRaWAN, or Sigfox.

While we are featuring some of our newer 4G LTE and 5G-ready antennas here, Mobile Mark also offers a large number of antennas dedicated to non-Cellular frequency coverage.  We offer many multi-band antennas that can be custom configured to meet the exact wireless requirements of your system.

Regardless of the operating frequency selected, all of our IIoT antenna solutions are designed to offer dependable coverage.  Our antennas are designed in-house in our Engineering Technical Center to ensure optimum efficiency and high-performance.

These antennas are rugged and able to perform in difficult operating environments.  From our overmolded embedded antennas to our vibration-resistant foam-filed antennas, we offer antennas that will stand up to commercial, industrial, and military requirements.



Infrastructure Antennas

OD3-600/6000

OD Site Antenna
Sub-6 & 5G Ready
No Ground plane Required

DOD7-700/2700

Heavy Duty MIMO Omni
Dual Mounting Brackets
5 dBi low band, 7dBi upper

Y42700WB-2x

Dual Log Periodic
5 dBi Gain, Only 8 1/4″ Tall
Bracket Mount Included

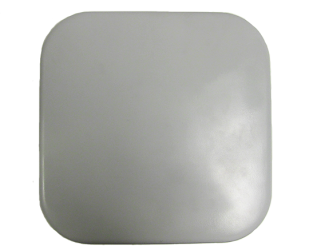

PND10-700/2700

Corner Reflector Antenna
High Gain, Compact Size
Broad Beamwidth Coverage

Fixed Site & Compact Antennas

RM-WB1

Heavy Duty Cabinet Mount
Sub-6 & 5G Ready
Direct N option Avail

EM-LTE

EM-LTE

Flexible LTE Board
695-960 & 1710-2700 MHz
Bend Radius of 2.5 Inches

CVL-WLF

Compact & Slim
Over Molded Board
4G compatible

PSKN3-700/2700

Broadband Device
Knuckle Swivel
700-2700 MHz

Multiband Antennas

CVWG402

Covert or Embedded
2x LTE,  1x WiFi, 1x GNSS
694-2750 MHz, 4 dBi Gain

LLPG502

2x LTE, 2x WiFi, 1x GNSS
Mag Mount option avil.
Low Profile Design

LMWG203

Compact Surface Mount
Sub-6 & 5G ready
Low Profile Design

LTMWG944

Wideband 4×4 MIMO
Sub-6 & 5G Ready
Up to 9 Cables

Call Mobile Mark for the Most Advanced Industrial IoT Antenna Design

The “Internet of Things”…

For a while now, people in the wireless world, and beyond, has been abuzz with the possibilities of a connected world.  From Smart Home to Smart City, we will be connected to each other, and to our things. This need to connect, to have useful data and to be able to act upon it, is not new to the Industrial World.  What is new, are the tools that can be used.

Commercial, industrial and governmental entities understand the need to monitor situations so that they can react to changing situations.  The quicker the data can be received, and the more thorough the data, the better prepared the decision makers will be to respond.

The IIoT, or Industrial Internet of Things, builds on what is already in place by providing new tools.  Sometimes it is simply a matter of getting current data faster, but sometimes it changes what is possible by providing new information and control possibilities.

The opening of new frequency bands, and wider bandwidths, along with the continual advancement of wireless protocols, has allowed for additional applications. Video-stream monitoring will be smoother and easier to watch with faster protocols and wider bandwidths that are possible with 5G Wireless.

With the advent of 5G technologies, critical data can see sent faster and more reliably, so that real-time decisions are possible. Video-streaming is one example, made smother and easier to watch with faster protocols and wider bandwidths that are possible with 5G wireless transmissions.

In some cases, time and speed are not critical.  In these cases, other wireless protocols may be appropriate.  For example, small quantities of data to be sent periodically, might be better suited over a license free network such as ISM, LoRaWAN or Sigfox.  If the data needs to be transmitted over longer distances, an NB-IoT system might be more appropriate.

One thing that distinguishes Industrial IoT from Consumer IoT is the environment in which most IIoT applications are placed.  Rugged settings and harsh conditions place more demands on the types of equipment that can be used.

Sometimes the equipment will be placed outdoors and subjected to extreme variations in temperature and moisture.  Other time, the equipment will be placed in high vibration and high impact settings where product durability is essential.  Mobile Mark understands the demands of these environments and has developed Industrial IoT antenna solutions that can stand up to these requirements.

We also understand that mounting requirements vary with location.  A number of our mounts can be used to secure the antenna in an unusual setting or to adjust the antenna’s angle for optimum coverage.  Radiation patterns are available to help network designers optimize the coverage area.
