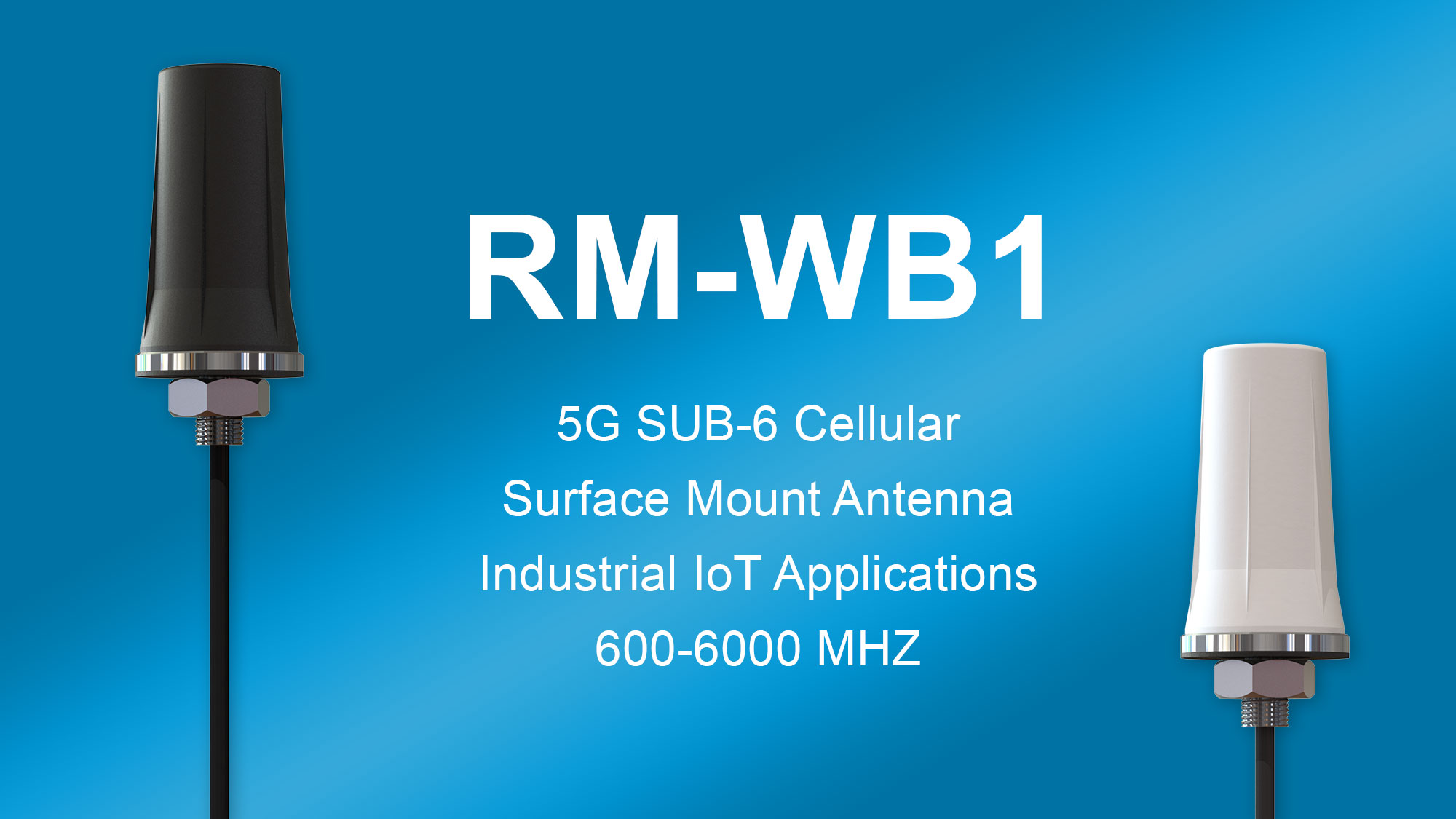

The RM-WB1 is a Superior Antenna for Industrial IoT Applications Requiring 5G Sub-6 Coverage.

Itasca, IL – September 7th, 2022 — This Omnidirectional surface mount antenna contains a single antenna element covering 617-960 MHz & 1700-6000 MHz. It is housed in a rugged, robust antenna radome made from ABS plastic. Coverage on other bands includes Band 71, starting at 617 MHz, CBRS at 3550-3700 MHz, and LAA at 5 GHz.

The antenna is well suited for Industrial IoT applications that capture relatively small quantities of data and can therefore rely on a single antenna element to transmit the data. Video streaming applications will be better suited for one of the Mobile Mark MIMO antennas, or two RM antennas can be combined to achieve 2xMIMO coverage. Smart City Lighting, Parking Controls, or Roadside Monitoring Boxes are ideal applications for this antenna.

Still Have Questions?

The RM-WB1 antenna is ground plane independent and was designed to be mounted on a metallic housing such as a Roadside cabinet or a CCTV camera. In additional to fixed installations, this antenna is often used as a mobile antenna, offering single-element coverage. The antenna has a slim profile, measuring only 3.1” tall x 1.7”in diameter, so it can fit into tight settings.

The antenna can be configured as either a surface-mount, mag-mount, or Direct N mount. The electrical performance of the antenna is identical, regardless of the mounting selection.

The RM Series antennas are Made-in-the-USA antenna solutions, designed and built in our Itasca, Illinois factory.

About Mobile Mark, Inc.

Mobile Mark, Inc. designs and manufactures infrastructure, vehicle, device, and embedded antennas for wireless antenna applications from 30 MHz to 7.2 GHz. Applications include Sub-6 5G ready, GPS Tracking & Fleet Management, Cellular 4G LTE, WiFi, M2M & Industrial IoT applications, Smart City Networks, and Autonomous & Connected Cars. Engineering and custom design services are available. Mobile Mark’s global headquarters, which include research facilities and manufacturing plant, are located near Chicago, IL. An additional manufacturing and sales facility is located near Birmingham, UK.
