Railway & Transit Antennas

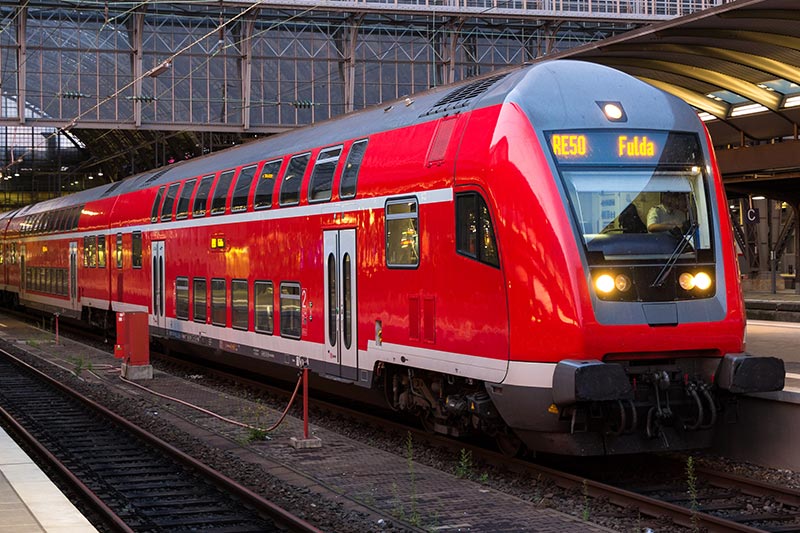

Passenger rail systems often require several wireless connections for train-to-ground communications, passenger Wi-Fi, operational networks, positioning, telematics, and other onboard systems. Multiband rail antennas can combine 5G/LTE, Wi-Fi, and GNSS within a single roof-mounted platform, reducing the need for separate antenna housings. Mobile Mark’s PR-LTMG508 and low-profile PR-LLPG508 are designed for these types of passenger-rail applications.

Selected Mobile Mark passenger rail antennas are designed to meet rail-specific environmental and fire-safety requirements. PR-LTMG508 and PR-LLPG508 meet both NFPA 130 and EN 50155 requirements, while PR-NXD-W and PR-LLP-W12/8 provide NFPA 130-rated options for onboard Wi-Fi applications.

Positive Train Control systems operating around 220 MHz may use different antenna types depending on the wayside installation and required coverage. Omnidirectional base-station antennas can provide coverage around a fixed site, while directional Yagi antennas concentrate coverage along a rail corridor or toward another communications point. Folded-dipole designs provide another option for fixed 220 MHz rail infrastructure.

Yes. Multiband rail antennas can integrate cellular, Wi-Fi, and GNSS elements into one housing, allowing several onboard communications systems to share a single antenna platform. These configurations can reduce roof penetrations, cabling, and the number of separate antennas required on locomotives, passenger cars, and other rolling stock.

Multiple-input multiple-output, or MIMO, uses multiple independent antenna paths to improve the capacity and connection stability of compatible cellular or Wi-Fi equipment. A 2×2 router generally requires two matched antenna connections, while a 4×4 router requires four. Every required port should connect to an element covering the equipment’s operating bands.

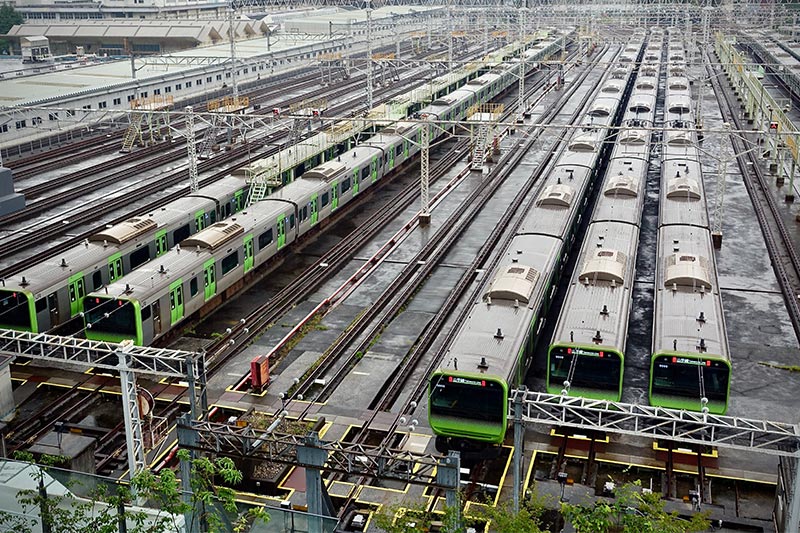

Rail yards and wayside networks can use cellular, private 5G, CBRS, UHF, 450 MHz, 800 MHz, and 900 MHz communications depending on the system. Fixed-site antennas support applications such as train-to-wayside communications, yard operations, remote monitoring, asset tracking, worker communications, and private wireless networks. Mobile Mark and Comtelco offer both broadband and narrowband options for these rail infrastructure applications.

Directional antennas concentrate RF coverage toward a particular area or endpoint, making them useful for defined rail corridors and point-to-point or point-to-multipoint links. Omnidirectional antennas provide coverage around the installation and are commonly used at yards, stations, wayside sites, and other fixed locations where communications may occur in several directions.

Yes. 450 MHz can support private wireless networks for rail and transportation applications where the spectrum is available. Its propagation characteristics make it useful for wide-area communications, monitoring, telemetry, automation, and other infrastructure applications, while dedicated 450 MHz base-station antennas can provide fixed-site coverage along rail networks.

LTE-R and FRMCS projects should be evaluated according to the actual radio bands, number of RF connections, installation location, and rail compliance requirements. As rail networks transition toward private LTE and 5G architectures, antenna platforms may need to support multiple cellular paths along with Wi-Fi, GNSS, or other onboard systems. Band compatibility should always be confirmed for the specific network rather than assuming any 5G antenna is automatically suitable for an FRMCS deployment.

Rail antennas may be exposed to continuous vibration and shock, extreme weather, debris, chemicals, high-pressure washdown, and other harsh operating conditions. Vehicle-mounted antennas may also need to meet rail-specific fire-safety and environmental requirements such as NFPA 130, EN 50155, or other specifications required by the project. The appropriate ratings depend on the antenna location and application.
