MXFG 08 Series

MaxFin Multiband Antenna

Global SUB-6 5G Cellular  LTE, WiFi & GNSS

Mobile Mark’s MXFG 08 Multiband Antenna responds to the growing interest in antenna solutions for fleet management that cover the entire sub-6 frequency band from 600-6000 MHz. These “6-2-6” antennas make it possible to connect to any of the current or planned cellular frequency bands that reside at or below 6 GHz.

The MXFG08 “MaxFin” series provides a sleek, high-tech look on the vehicle. This antenna series includes two Global 5G LTE antennas, up to four WiFi antennas and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for both Cellular and WiFi. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.

The Global LTE 5G-ready antenna element covers: 617-960 & 1710-6000 MHz.  Furthermore, it covers all Cellular bands, worldwide.  In the US, this includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.

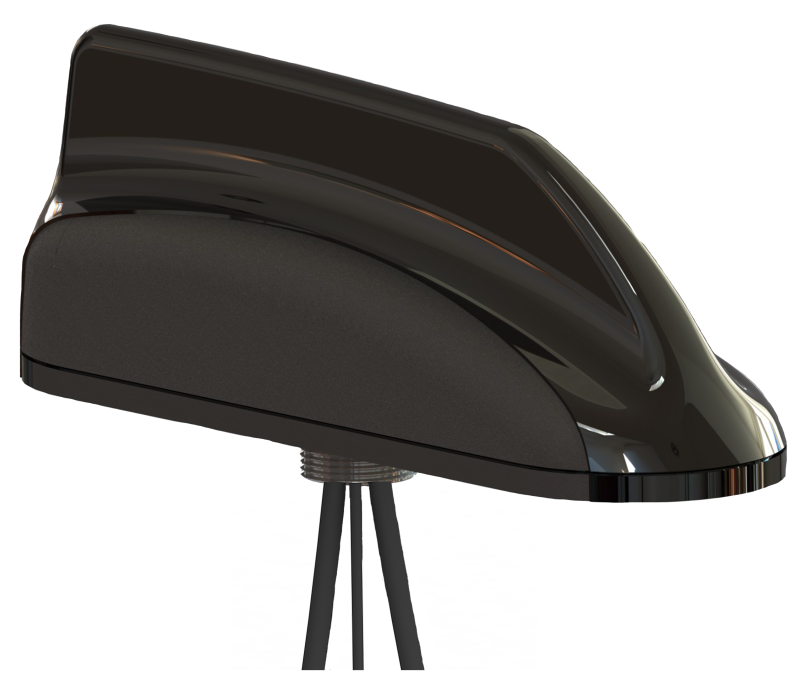

The antenna elements all fit in this slim tapered radome that mesaures only 7 1/2″ long x 2.25″ wide by 2.5″ tall (19 cm x 5.7 cm x 6.4 cm). The antenna housing contains a stylish combination of matte & polished finish, providing a sleek, high-tech look on the vehicle.

The MXFG08 Series always contains 2xSub-6 5G Cellular elements, but it can also be configured with fewer WiFi elements. The model numbers will change as follows:

MXFG308: 2x5G, 1xGNSS
MXFG408: 2x5G, 1xWiFi, 1xGNSS
MXFG508: 2x5G, 2xWiFi, 1xGNSS
MXFG608: 2x5G, 3xWiFi, 1xGNSS
MXFG708: 2X5G, 4xWiFi, 1xGNSS
