ED450-2 (5 dBd UHF Folded Dipole)

5 dBd UHF Folded Dipole

The ED450-2 adds 5 dBd gain and a narrower vertical pattern for 406–512 MHz fixed LMR systems.

BUY ONLINE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

The ED450-2 adds 5 dBd gain and a narrower vertical pattern for 406–512 MHz fixed LMR systems.

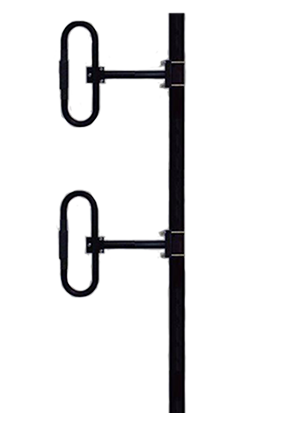

The antenna uses black anodized aluminum, a 1.9-inch mast, N-male interface, 50° vertical beamwidth, and DC grounding.

Ideal applications:

Example Model Configurations: ED450-2, ED450-2-1

Key Specifications

Feature	Specification
Technology	UHF land-mobile radio
Frequency	UHF: 406-512 MHz
Gain	UHF: 5 dBd
Connector / Cable	UHF connector: N male
Mounting	Integrated 1.9 in mast; tower standoffs and BSLMNT2 hardware available separately
Dimensions	60 in length × 22 in width; integrated mast diameter 1.9 in
Material	Base: Heavy-wall aluminum mast Elements: Black-anodized radiating elements
Wind Rating	150 mph; 50 lb wind load; 0.9 ft² flat-plate area

Models & Configurations

Model / Configuration	Configuration Details
ED450-2 (Extreme Shipping Charges Apply)	406-512 MHz; 5dBd gain; N MALE
ED450-2-1 (Extreme Shipping Charges Apply)	406-512 MHz; 2.5dBd gain; N MALE
