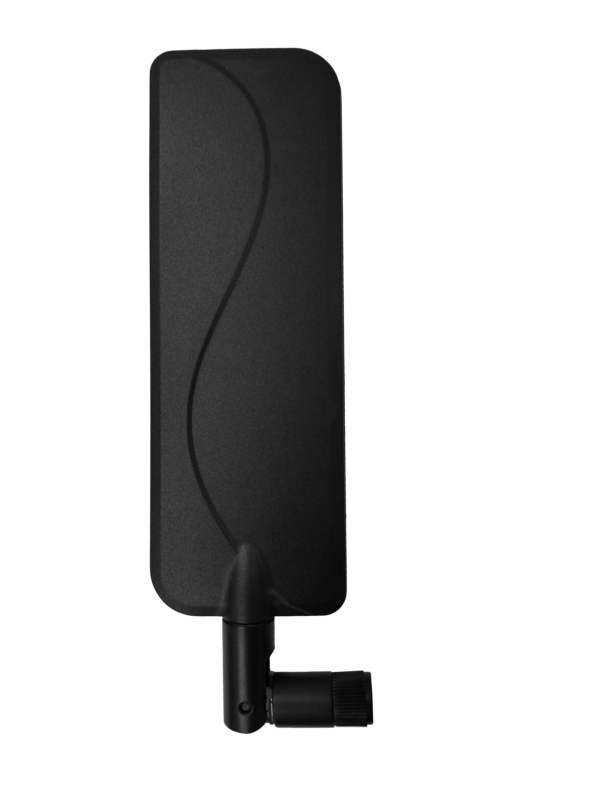

PSKN5-626 (617–6000 MHz 5G/LTE)

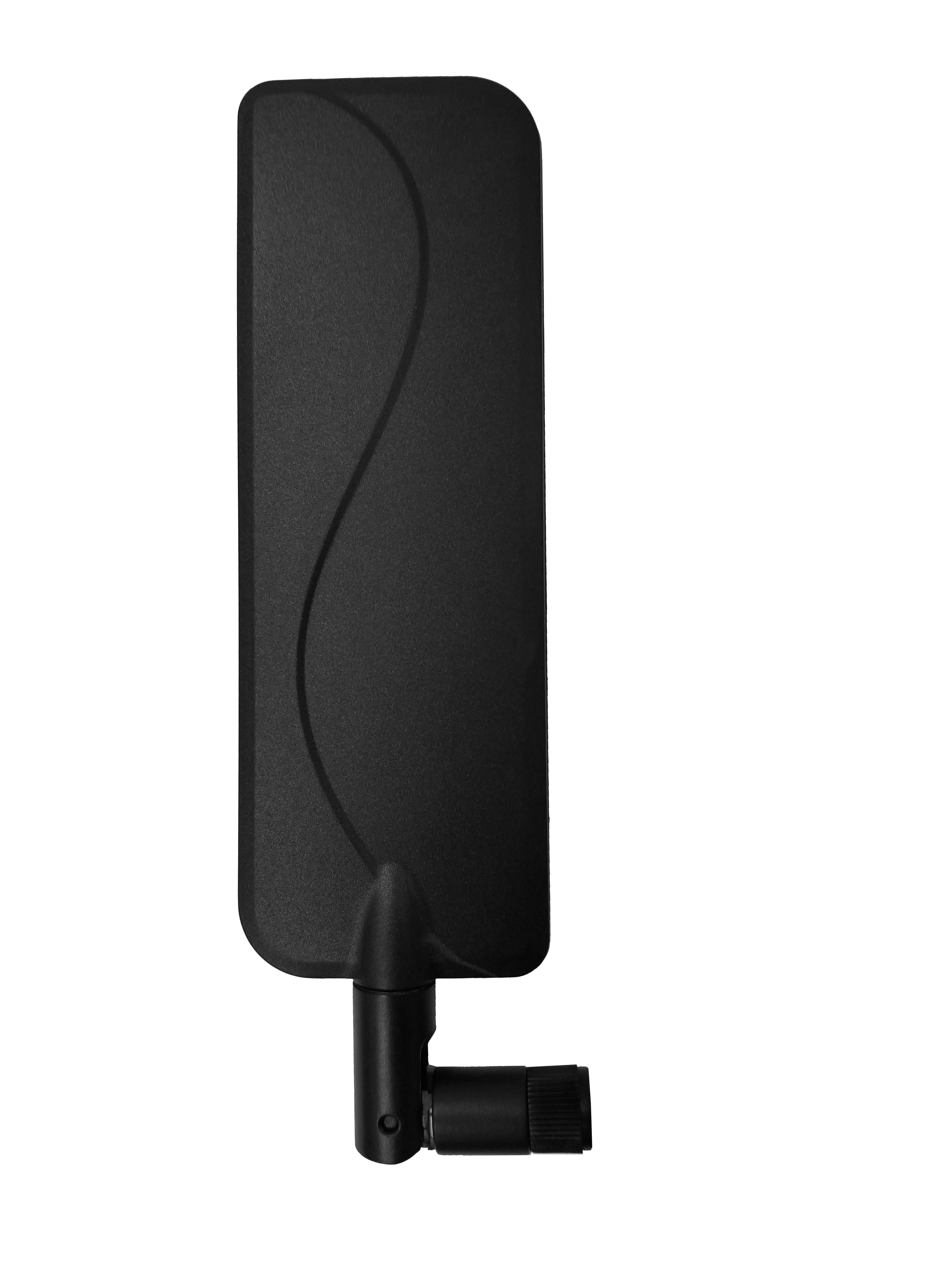

PSKN5-626 (617–6000 MHz 5G/LTE) - Image 2

PSKN5-626 (617–6000 MHz 5G/LTE)

617–6000 MHz 5G FR1 Blade Antenna

The PSKN5-626 covers 617–6000 MHz for Sub-6 5G, LTE and CBRS devices with a blade body that adjusts to 0°, 45° or 90°.

  • Spans 617–6000 MHz from Band 71 through CBRS and LAA ranges.
  • Adjusts to straight, 45-degree or right-angle installation.
  • Offers SMA and reverse-polarity SMA connections.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

The PSKN5-626 provides 617–6000 MHz coverage for Sub-6 5G, LTE and CBRS equipment in a direct-connect blade format. The broad range lets one antenna address multiple current and planned cellular bands below 6 GHz.

Its knuckle selects 0, 45 or 90 degrees to fit device ports on different enclosure faces. Choose an SMA or reverse-polarity SMA configuration to match the radio interface.

Ideal applications:

  • Industrial IoT gateways
  • Remote monitoring devices
  • Sub-6 5G equipment

Example Model Configurations: PSKN5-626-S, PSKN5-626-RS

Key Specifications

Feature Specification
Technology 5G FR1; cellular; CBRS; LAA
Frequency

Cellular / 5G FR1: 617-6000 MHz
Gain

Cellular / 5G FR1: 3 dBi peak
Configuration Single RF feed
Polarization

Cellular / 5G FR1: Vertical
Connector

Cellular / 5G FR1: SMA plug or reverse-polarity SMA plug, by variant
Mounting Direct SMA or reverse-polarity SMA plug, by variant; 0-, 45-, or 90-degree tilt
Dimensions 7.63 in full length x 1.92 in width x 0.38 in depth (193 x 49 x 9.8 mm)
Material

Housing: PC and ABS housing
Maximum Input Power

Cellular / 5G FR1: 2 W
Operating Temperature -40 °C to +80 °C

Models & Configurations

Model / Configuration Configuration Details
PSKN5-626-S 1× cellular element; Direct connector; adjustable knuckle; Black radome; SMA plug
PSKN5-626-RS 1× cellular element; Direct connector; adjustable knuckle; Black radome; RP-SMA plug; Jumpers n/a (direct connector)
