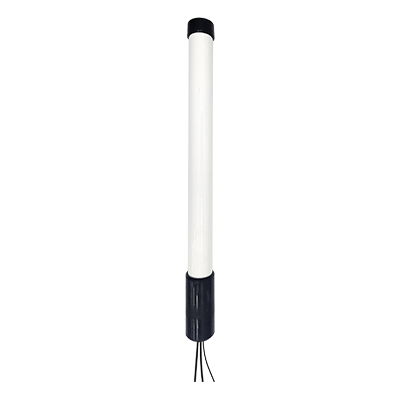

BSLLG3-600/7200 (2× 5G/LTE Cellular, GNSS)

The BSLLG3-600/7200 is a heavy-duty omnidirectional base station antenna designed for infrastructure deployments requiring reliable LTE and 5G connectivity. The antenna supports wideband cellular coverage from 617–7200 MHz and integrates 2× cellular MIMO to improve network throughput and reliability.

An integrated GNSS element supports positioning and timing synchronization, making the antenna suitable for infrastructure networks requiring precise location or timing reference.

The antenna is constructed with a rugged fiberglass radome and powder-coated aluminum base, engineered for long-term outdoor installations. The enclosure is wind-rated to 125 mph and operates across a temperature range of –40°C to +80°C.

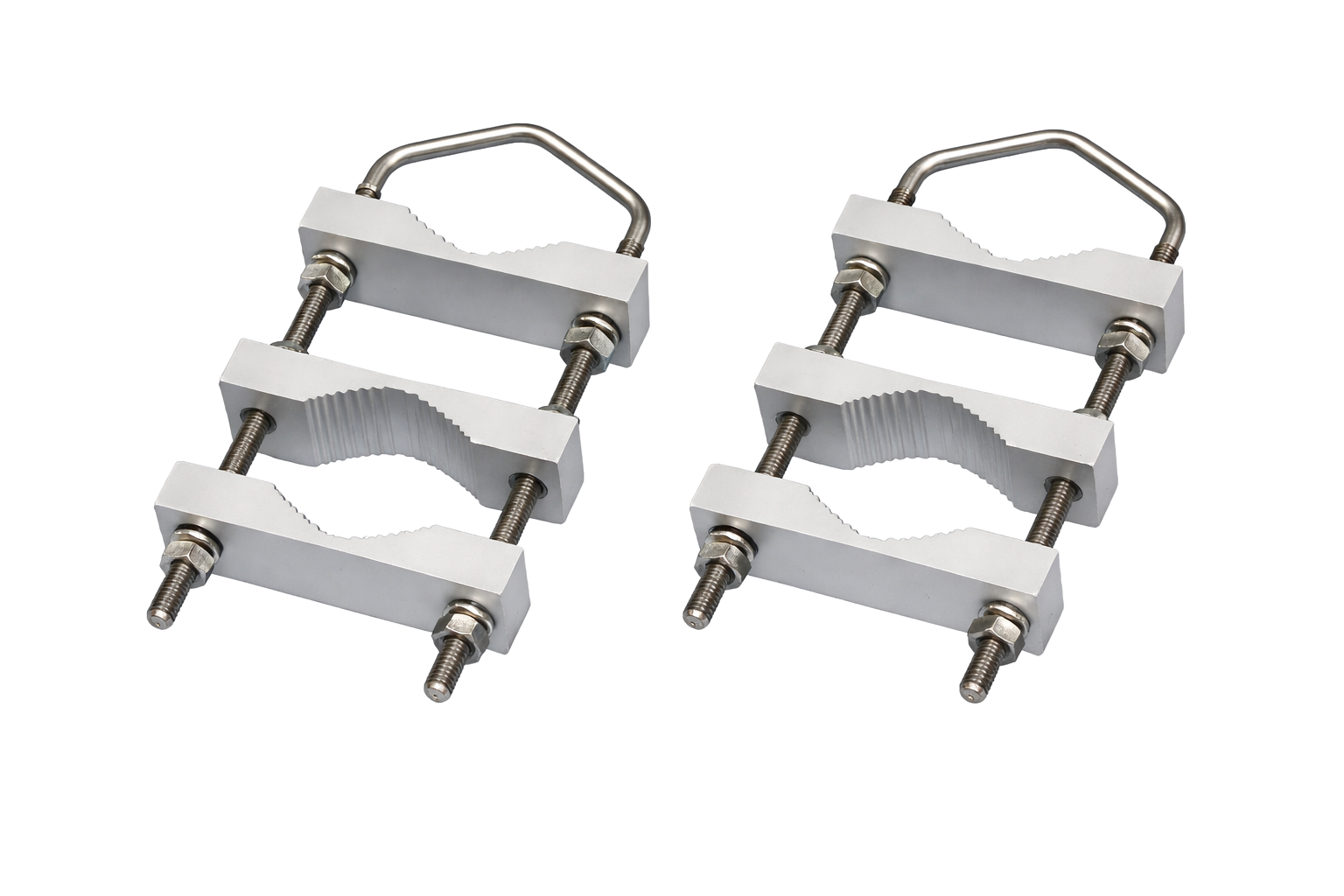

Installation is simplified with the included BSLMNT2 mounting bracket, while the antenna can also mount directly to a pole or J-mount, depending on site requirements.

Typical Applications:

• Utility substations
• Rail wayside communications
• Small cell networks
• Industrial and infrastructure wireless networks

Specifications
