CVL-2400/5500 (Dual-Band Wi-Fi)

Dual-Band Wi-Fi Covert Antenna

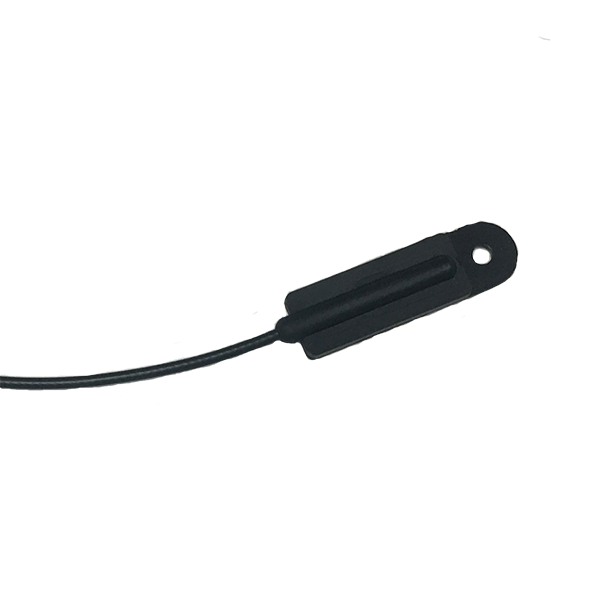

The CVL-2400/5500 provides 2.4 and 5 GHz Wi-Fi coverage in a slim overmold strip for concealed installations.

BUY ONLINE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

The CVL-2400/5500 provides 2.4 and 5 GHz Wi-Fi coverage in a slim overmold strip for concealed installations.

Its 2.41 × 0.65 × 0.08-inch overmold fits narrow installation spaces while providing 3 dBi gain.

Ideal applications:

Example Model Configurations: CVL-2400/5500-2C-BLK-96, CVL-2400/5500-2PA-BLK-96

Key Specifications

Feature	Specification
Technology	Wi-Fi 6; WLAN
Frequency	Wi-Fi: 2.4-2.5 GHz and 4.9-6.0 GHz
Gain	Wi-Fi: 3 dBi peak
Configuration	1 RF feed
Polarization	Wi-Fi: Vertical
Connector / Cable	Wi-Fi connector: SMA plug (male) standard; QMA male option Wi-Fi cable: RG-174 Wi-Fi cable length: 8 ft / 96 in (244 cm), configuration-dependent
Mounting	Two built-in grommet holes can be used for fasteners; the tabs may be removed and the antenna mounted with double-sided tape.
Dimensions	2.41 in length x 0.65 in width x less than 0.08 in depth
Material	Housing: UV-stable polyamide overmold
VSWR	Wi-Fi: <2:1
Maximum Input Power	Wi-Fi: 10 W maximum
Environmental Rating / Qualifications	Ingress: IP69 Qualifications: IEEE 1478; EN 61373; MIL-STD-810G
Operating Temperature	-40 to 80 °C

Models & Configurations

Model / Configuration	Configuration Details
CVL-2400/5500-2C-BLK-96	2.4-2.5/4.9-6 GHz; Black; Cable: RG-174; SMA Plug; Cable length: 8 feet
CVL-2400/5500-2PA-BLK-96	Black; Cable: RG-174; QMA Plug; Cable length: 8 ft
