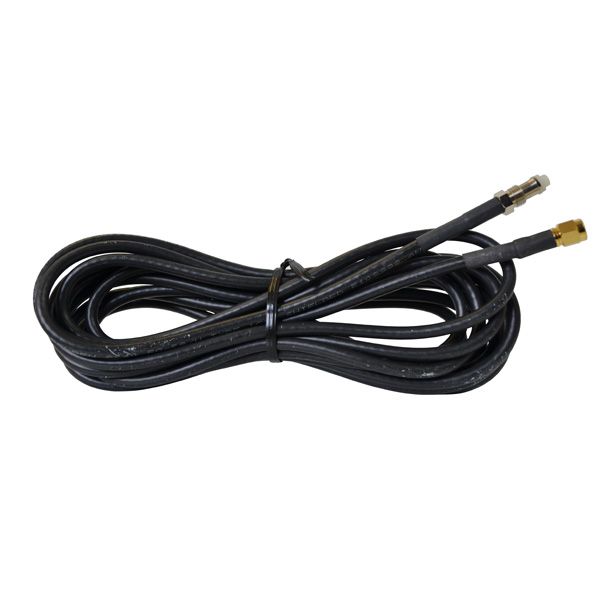

LL-195 Cable Assembly

Low-Loss Coaxial Cable for Custom Assemblies


LL-195 provides a lower-loss alternative to RG-58 while using the same cable diameter and connector sizes. Mobile Mark recommends it for cable runs over 15 feet and applications up to 6 GHz, and uses it as its standard cable above 2.5 GHz.

Custom assemblies can be specified with the length and end connectors needed for the installation. The 50-ohm cable supports connections to site antennas with integrated connectors and extensions to existing antenna cable runs.

Key Specs

Feature Specification
Product type Custom coaxial cable assembly
Cable type LL-195
Nominal impedance 50 ohms
Approximate cable diameter 0.20 in (5 mm)
Application guidance Cable runs over 15 ft; applications up to 6 GHz
Standard use Mobile Mark standard cable above 2.5 GHz
Length and connectors Specified to suit the installation
