LTMG506 (2x LTE, 2x CBRS, GNSS)

LTMG506 (2x LTE, 2x CBRS, GNSS)

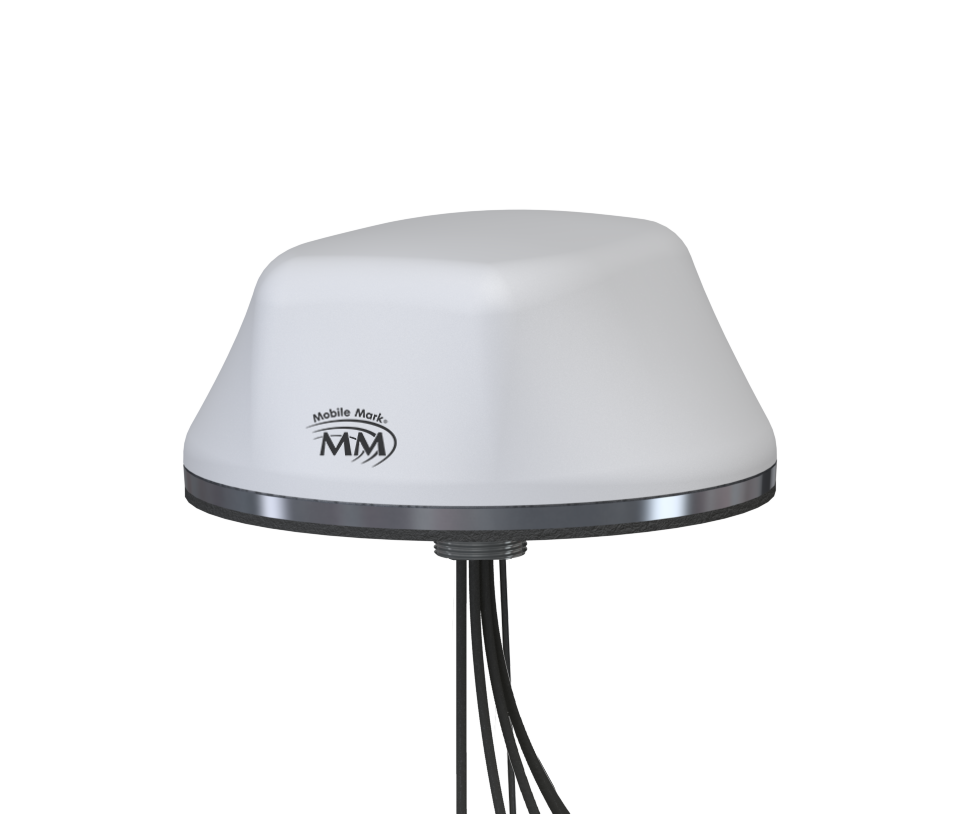

LTE, CBRS, and GNSS Vehicle Antenna

The LTMG506 is a five-element vehicle antenna that places two LTE paths, two 3300–3800 MHz CBRS paths, and GNSS in one low-profile surface-mounted housing.

Key Features

  • Delivers reliable 2×2 LTE connectivity across low-band and higher-frequency ranges.
  • Dedicates two 3300–3800 MHz paths to compatible CBRS equipment.
  • Adds GNSS positioning without another roof-mounted antenna.
  • Consolidates five RF connections at one compact mounting point.
  • IP67-rated construction protects internal components from dust and water.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

LTE, Mid-Band, and GNSS in One Vehicle Mount.

The LTMG506 integrates two LTE connections, two dedicated 3300–3800 MHz mid-band connections, and GNSS in one compact surface-mounted antenna. The five-element design supports mixed cellular and CBRS radio installations without adding separate antenna housings for each connection.

2×2 LTE Connectivity: Two cellular elements cover 694–960 and 1710–3700 MHz for compatible 2×2 LTE routers and gateways.

Dedicated Mid-Band Paths: Two separately cabled elements cover 3300–3800 MHz for compatible CBRS radio equipment.

Integrated GNSS: A dedicated positioning element covers 1561, 1575, and 1602 MHz for compatible navigation and tracking equipment.

Rugged Multi-System Protection: IP67-rated construction helps keep dust and water from reaching internal components. UV-stable ASA and a −40 °C to +80 °C operating range protect the antenna across exposed vehicle conditions.

The LTMG506 provides a compact way to place LTE, mid-band, and positioning connections at one vehicle mounting point.

Ideal Applications

  • Vehicles using LTE and CBRS radio equipment
  • 2×2 LTE fleet routers
  • Mid-band mobile communications
  • Vehicle navigation and tracking

Example Model Configurations: LTM506-3C3C3C3C2C-WHT-180, LTMG506-3C3C3C3C2C-WHT-180

Key Specifications

Feature Specification
Technology 4G LTE, GNSS, CBRS
Frequency

Cellular: 694–960 MHz; 1710–3700 MHz

CBRS / legacy WiMAX: 3300–3800 MHz

GNSS: 1561, 1575, and 1602 MHz
Gain

Cellular: 3 dBi low band; 4 dBi high band

High-frequency: 5 dBi

GNSS: 5 dBi
Configuration 2 × cellular; 1 × GNSS; 2 × CBRS
Bands

LTE: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 85, 103, 106, 111
Connector / Cable

Connectors: All paths: SMA plug (standard)

Cable: RF-195 paths 1–4; positioning path: RG-174

Length: All paths: 15 ft (4.5 m)
Mounting 7/8 in (22 mm) feed-through; 3/4 in (19 mm) thread for surfaces up to 1/2 in (13 mm); 1 sq ft ground plane recommended for stud mount
Dimensions 5.50 in diameter × 2.38 in high (140 × 60.4 mm)
Material

Housing: ASA UV-stable plastic
Environmental Rating / Qualifications

Ingress: IP67

Qualifications: IEEE 1478; EN 61373; MIL-810G; TIA-329.2-C
Operating Temperature −40°C to +80°C

Models & Configurations

Model / Configuration Configuration Details
LTM506-3C3C3C3C2C-WHT-180 2× LTE elements; 2× WiMAX elements; 1× GPS element; Stud / through-hole; White radome; 4× LL-195; 1× RG-174; 5× SMA Plug; All cables: 180 in (15 ft)
LTMG506-3C3C3C3C2C-WHT-180 2× LTE elements; 2× WiMAX elements; 1× GLONASS/GPS element; Stud / through-hole; White radome; 4× LL-195; 1× RG-174; 5× SMA Plug; All cables: 180 in (15 ft)
