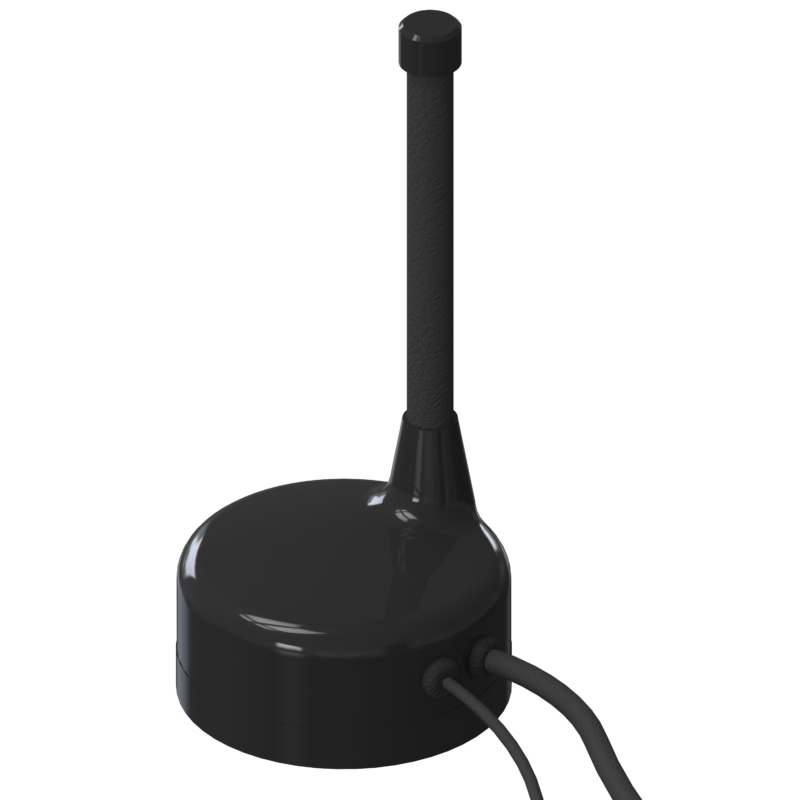

DSRC Omni Directional Magnet Mount

Frequency: 5850-5930 MHz (DSRC) & 1575/1612 MHz (GNSS)
Gain: 6 dBi for DSRC


Mobile Mark’s high gain DSRC antennas such as this MAG6-5900/1575, are designed for the following: ITS (Intelligent Transportation Systems), Smart Highway trials and Vehicle-to-Vehicle (V2V) in ITS trials.

This antennas operates on the DSRC (Dedicated Short Range Communications) band, with the frequency covering 5850-5930 MHz.

The MAG6-5900/1575 has two cables, Low Loss-195 for DSRC and RG-174 for GNSS. GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.

Visit our eStore to customize an antenna online. Otherwise, read more about our other Mobile Antennas.
