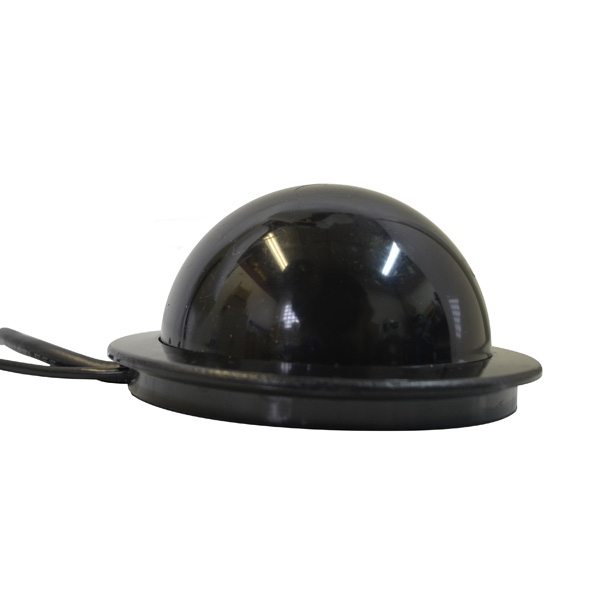

MGD-2400/5500

Mag-Mount Antenna

Frequency: 2.4-2.5 & 4.9-6.0 GHz
Gain: 2.5 GHz

The MGD-2400/5500 antenna operates on WiFi 2.4 & 5 GHz, for public safety at 4.9 GHz, and DSRC at 5.9 GHz. It has a SMA plug connector, but other connector types are available. A steel surface (not stainless steel) will provide the best contact with the powerful magnet. All units are supplied with a choice of RF connectors.

Visit our eStore to customize an antenna online. Otherwise, read more about our other Mobile Antennas.

mgd-2400-5500-imag5-2400-spec-sheet

MGD-2400/5500 Radiation Pattern
