Description

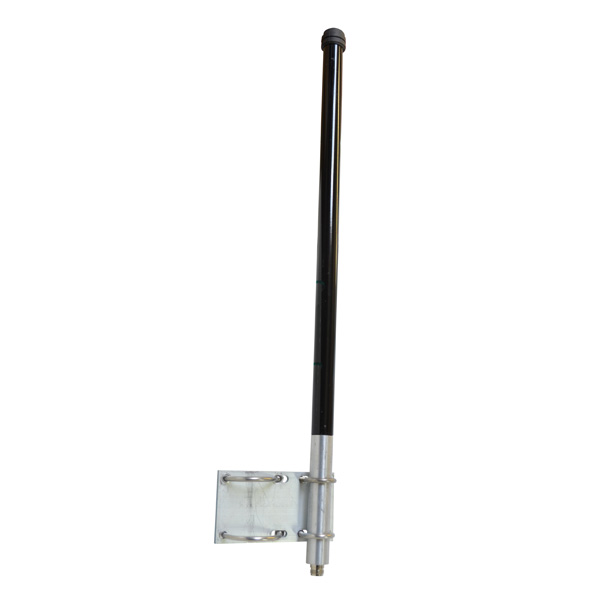

The OD9-2400 2.4 GHz Data Transfer Antenna is popular because of its high-performance and rugged construction. This antennas normally terminates with a Female “N”  Jack connector.

The OD Series antennas provide omni-directional coverage for WiFi 2.4 GHz applications. Four models are available from 3-12 dBi gain. The OD series are free space antennas; therefore no ground plane is needed.

An add-on Reflector Kit is available. This kit beam shape the omni pattern. In addition, reflector options are available to provide cardioid shape in 90 degree, 120 degree & 180 degree patterns. These result in improved directional gain and isolation for reduced interference.

The OD9-2400 can withstand harsh environments of snow, wind, rain and ice. In addition, the feed assembly is made of precision machined aluminum components. It is also irridited for weather protection.

These antennas come with all the hardware needed to install it to a mast. Please Specify OD-WMK for the Wall Mount Bracket.

For ISM, Part 15 compliant connectors (reverse polarized), please consult your sales representative.

Visit our eStore to customize an antenna online. Otherwise, check our our other Omni-Directional Antennas.


Specifications

od3-2400-od6-2400-od9-2400-od12-2400-odr9-2400-odr9-2400t120k-odr9-2400t180k-spec-sheet

OD9-2400 Radiation Pattern
