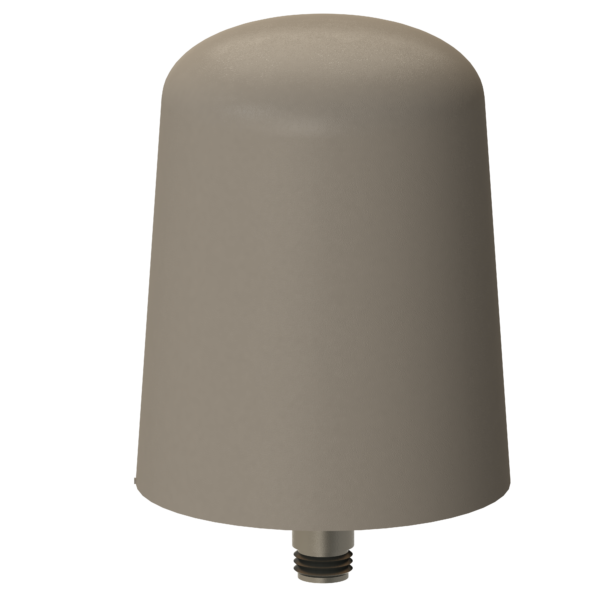

The TMA-WB1 is a heavy-duty, super-wideband antenna for fixed and mobile systems that must operate across diverse sub-6 GHz networks. Its single element covers 420–6000 MHz, giving system designers one platform for Band 71, CBRS, LAA, NB-IoT, and LTE-M applications.
That breadth is particularly useful when frequency requirements change from one project to the next. Instead of selecting an antenna around a single narrow band, integrators can use the TMA-WB1 across a wider range of current and planned wireless deployments. Gain rises across the upper portions of the spectrum, reaching 8 dBi from 4900–6000 MHz, and the N-female interface supports up to 300 watts of input power.
A UV-stabilized polycarbonate radome and an operating range of -40°C to +85°C support demanding installations. The compact 4.75-inch-high housing mounts with two tapped holes and fits fixed-site infrastructure, rugged mobile wireless networks, and space-constrained systems that need broad coverage from one antenna connection.
Example Model Configurations: TMA-WB1
