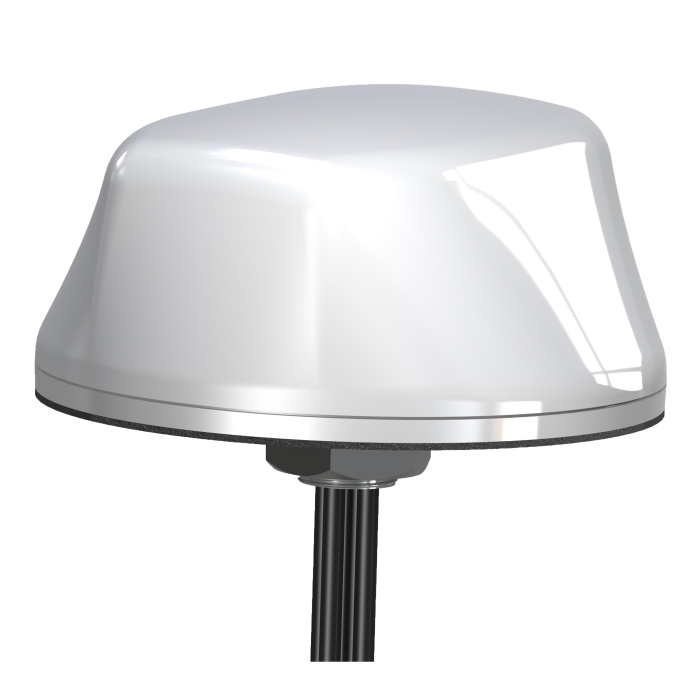

LTMG 08 Series

GNSS Multi-Band Surface Mount Antenna

2x Sub-6 5G LTE with up to 4x WiFI, & 1xGNSS

Mobile Mark’s LTMG08 Multiband Antenna responds to the growing interest in antenna solutions for fleet management that cover the entire sub-6 frequency band from 600-6000 MHz. These “6-2-6” antennas make it possible to connect to any of the current or planned cellular frequency bands that reside at or below 6 GHz.

Furthermore, it covers all Cellular bands, worldwide.  In the US, this includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.

Measuring 5.5″ (140 mm) in diameter with a low profile of 2.38″ (60.4 mm), the LTMG508 series antennas take up significantly less space than multiple antennas.

The LTMG08 Series always contains 2xSub-6 5G Cellular elements but it can also be configured with fewer or more WiFi elements. The model numbers will change as follows:

LTMG308: 2x5G, 1xGNSS
LTMG408: 2x5G, 1xWiFi, 1xGNSS
LTMG508: 2x5G, 2xWiFi, 1xGNSS
LTMG608: 2x5G, 3xWiFi, 1xGNSS
LTMG708: 2X5G, 4xWiFi, 1xGNSS
