LTMG301 (2xLTE, GNSS)

GNSS Multiband Surface Mount Antenna

3-cables: two LTE Cellular, one GNSS

Cable 1 & 2: 694-960 MHz, 3 dBi & 1710-2170 MHz, 4 dBi

Cable 3 (GNSS): 1561, 1575, & 1602 MHz, LNA 26 dB, 5 dBi

Specify MLTMG301 for mag-mount version.

Specify LTM301 or MLTM301 for GPS models.
Purchase

Categories:

Description

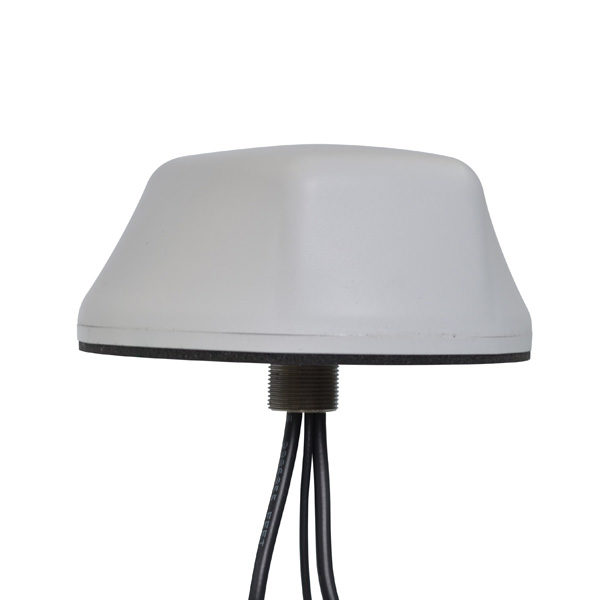

The 3-cable LTMG301 Fleet Tracking Antenna includes two Cellular and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for Cellular and GNSS coverage for fleet tracking.  GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.

If the fleet management system includes a WiFi modem, please see LTMG401 or LTMG501.

Measuring 5.5″ (140 mm) in diameter with a low profile of 2.38″ (60.4 mm), the LTMG-301 series antennas take up significantly less space than multiple antennas.

The antennas are available in either surface-mount or mag-mount models. Specify MLTMG301 for mag mount and LTM301 for the GPS version of this model.

Visit our eStore to check out and customize a Multi-band Surface Mount Antenna Online. Check out other GNSS capable Multiband Antennas by model.


Specifications

LTMG301 Spec Sheet

LTM301 & LTM401 Series Radiation Pattern
