Cellular, Wi-Fi, Iridium, and GNSS in One Mount.

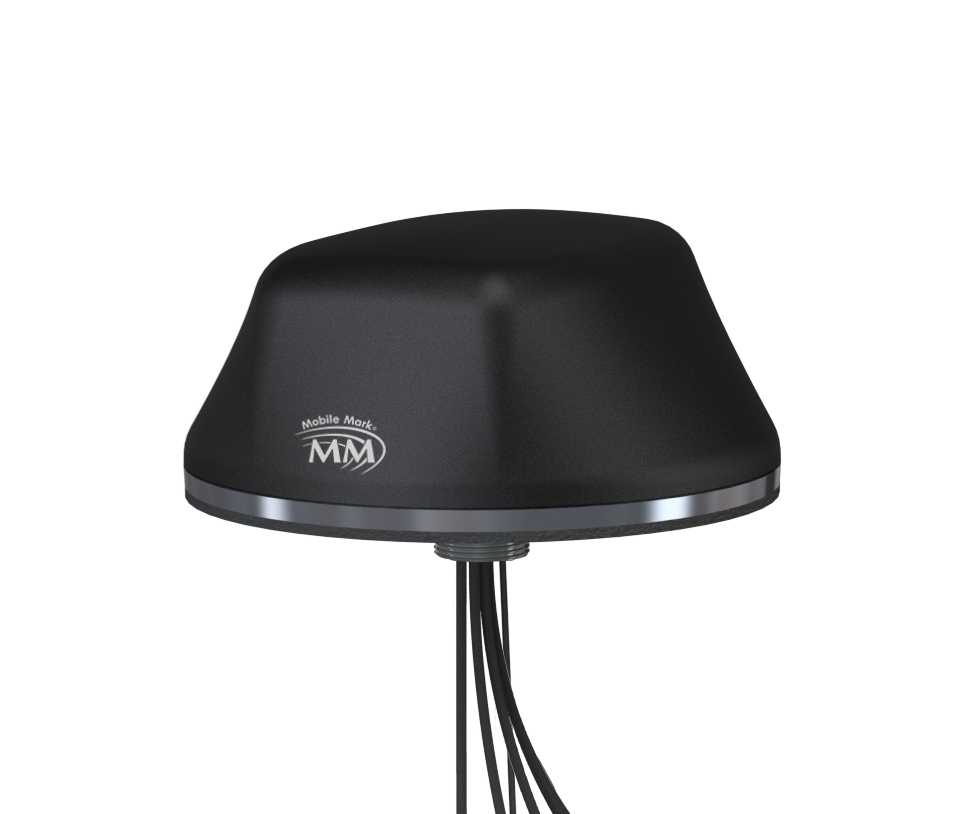

The LTMG503 brings four communications and positioning functions together in one compact vehicle antenna. Two LTE paths, one dual-band Wi-Fi path, one Iridium path, and active GNSS share a five-cable surface-mounted housing for fleet and transportation installations.
Dual LTE Connections: Two cellular elements cover 694–960 and 1710–2100 MHz for compatible LTE equipment.
Separate Wi-Fi and Iridium Paths: One element covers 2.4–2.5 and 5–6 GHz for Wi-Fi, while a dedicated element covers the 1616–1626.5 MHz Iridium band.
Integrated GNSS Positioning: The active GNSS element supports positioning at 1561, 1575, and 1602 MHz without another exterior antenna housing.
Water-Resistant Multi-System Protection: IPX7-rated construction helps keep water from reaching internal components. UV-inhibitive ASA, corrosion-resistant aluminum, and a −40 °C to +80 °C operating range protect the antenna across exposed mobile conditions.
The LTMG503 provides a compact connection point for vehicles using terrestrial wireless, Iridium, and positioning equipment together.
Ideal Applications
- Fleet vehicles using LTE and Iridium radios
- Remote transportation equipment
- Onboard Wi-Fi connections
- Vehicle navigation and tracking
Example Model Configurations: LTM503-3C3C3C3C2C-WHT-180, LTMG503-3C3C3C3C2C-WHT-180, MLTM503-3C3C3C3C2C-WHT-180, MLTMG503-3C3C3C3C2C-WHT-180
