LTMG507 (2x LTE, WiFi, GNSS, Iridium)

LTMG507 (2x LTE, WiFi, GNSS, Iridium)

LTE, Wi-Fi, Iridium, and GNSS Antenna

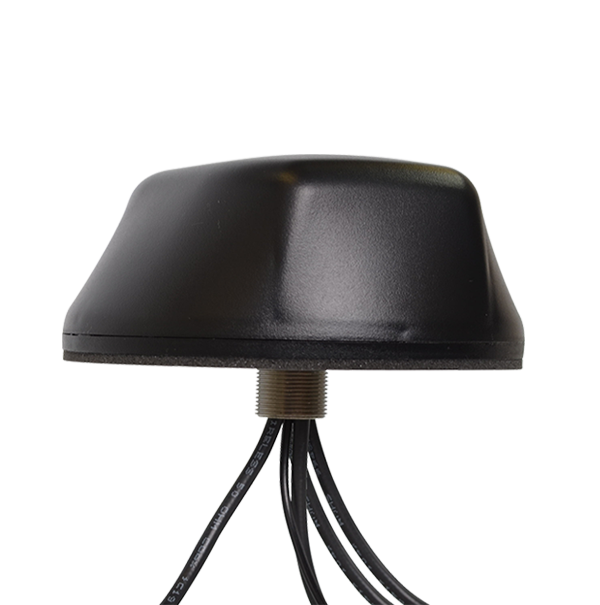

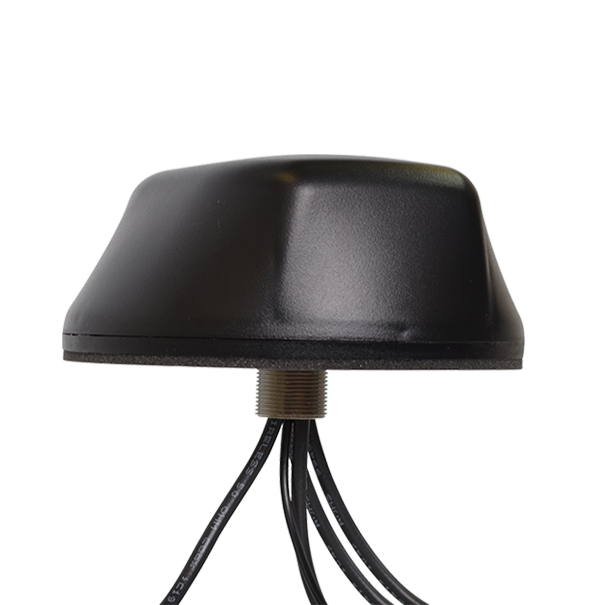

The LTMG507 is a five-element vehicle antenna that supports 2×2 LTE plus separate Wi-Fi, Iridium, and active GNSS connections from one roof-mounted housing.

Key Features

  • Delivers reliable 2×2 LTE connectivity across low-band and higher-frequency ranges.
  • Keeps dual-band Wi-Fi and Iridium on separate RF paths.
  • Adds GNSS positioning without another roof-mounted antenna.
  • Consolidates five RF connections at one compact mounting point.
  • IPX7-rated construction protects internal components from water exposure.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

Five RF Paths. One Vehicle Antenna.

The LTMG507 brings 2×2 LTE, dual-band Wi-Fi, Iridium, and active GNSS together in one compact surface-mounted antenna for fleet and transportation vehicles. Five separately cabled elements support terrestrial wireless, satellite communications, and positioning from one exterior housing.

2×2 LTE Connectivity: Two cellular elements cover 694–960 and 1710–3700 MHz for compatible 2×2 LTE routers and gateways.

Separate Wi-Fi and Iridium Paths: One element covers 2.4–2.5 and 4.9–6.0 GHz for Wi-Fi, while a dedicated element covers 1616–1626.5 MHz for compatible Iridium equipment.

Multi-Constellation GNSS: The active GNSS element supports positioning at 1561, 1575, and 1602 MHz without requiring another roof-mounted antenna.

Water-Resistant Multi-System Protection: IPX7-rated construction helps keep water from reaching internal components. UV-stable ASA and a −40 °C to +80 °C operating range protect the antenna across exposed mobile conditions.

The LTMG507 consolidates cellular, Wi-Fi, Iridium, and positioning connections for vehicles operating across varied communications environments.

Ideal Applications

  • Fleet vehicles using LTE and Iridium radios
  • Remote transportation equipment
  • Onboard Wi-Fi connections
  • Vehicle navigation and tracking

Example Model Configurations: LTM507-3C3C3C3C2C-WHT-180, LTMG507-3C3C3C3C2C-WHT-180, MLTM507-3C3C3C3C2C-WHT-180, MLTMG507-3C3C3C3C2C-WHT-180

Key Specifications

Feature Specification
Technology 4G LTE, GNSS, Iridium, Wi-Fi
Frequency

Cellular: 694–960 MHz; 1710–3700 MHz

Wi-Fi: 2.4–2.5 GHz; 4.9–6.0 GHz

Iridium: 1616–1626.5 MHz

GNSS: 1561, 1575, and 1602 MHz
Gain

Cellular: 3 dBi low band; 4 dBi high band

Wi-Fi: 5 dBi

Iridium: 5 dBi

GNSS: 5 dBi
Configuration 2 × cellular; 1 × Wi-Fi; 1 × GNSS; 1 × Iridium
Bands

LTE: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 85, 103, 106, 111
MIMO

Cellular: 2×2 MIMO
GNSS Bias 2.7–5 VDC; Current 20 mA max / 10 mA typical
Connector / Cable

Connectors: All paths: SMA plug (standard)

Cable: RF-195 paths 1–4; positioning path: RG-174

Length: All paths: 15 ft (4.5 m)
Mounting 7/8 in (22 mm) feed-through; 3/4 in (19 mm) thread for surfaces up to 1/2 in (13 mm); 1 sq ft ground plane recommended for stud mount
Dimensions 5.50 in diameter × 2.38 in high (140 × 60.4 mm)
Material

Housing: ASA UV-stable plastic
Environmental Rating / Qualifications

Ingress: IPX7

Qualifications: IEEE 1478; EN 61373; MIL-810G; TIA-329.2-C
Operating Temperature −40°C to +80°C

Models & Configurations

Model / Configuration Configuration Details
LTM507-3C3C3C3C2C-WHT-180 2× LTE elements; 1× Wi-Fi element; 1× Iridium element; 1× GPS element; Stud / through-hole; White radome; 4× LL-195; 1× RG-174; 5× SMA Plug; All cables: 180 in (15 ft)
LTMG507-3C3C3C3C2C-WHT-180 2× LTE elements; 1× Wi-Fi element; 1× Iridium element; 1× GLONASS/GPS element; Stud / through-hole; White radome; 4× LL-195; 1× RG-174; 5× SMA Plug; All cables: 180 in (15 ft)
MLTM507-3C3C3C3C2C-WHT-180 2× LTE elements; 1× Wi-Fi element; 1× Iridium element; 1× GPS element; Magnetic mount; White radome; 4× LL-195; 1× RG-174; 5× SMA Plug; All cables: 180 in (15 ft)
MLTMG507-3C3C3C3C2C-WHT-180 2× LTE elements; 1× Wi-Fi element; 1× Iridium element; 1× GLONASS/GPS element; Magnetic mount; White radome; 4× LL-195; 1× RG-174; 5× SMA Plug; All cables: 180 in (15 ft)
