LTMG610 (2x Wideband 6 GHz, 3x WiFi, GNSS)

LTMG610 (2x Wideband 6 GHz, 3x WiFi, GNSS)

Wideband, Wi-Fi, and GNSS Vehicle Antenna

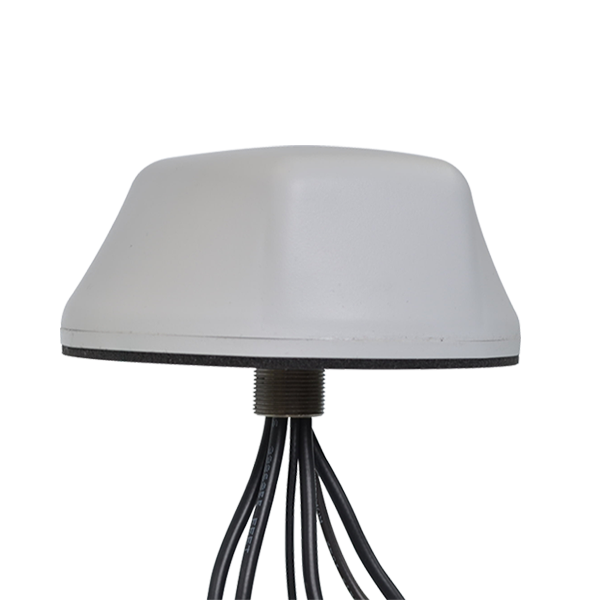

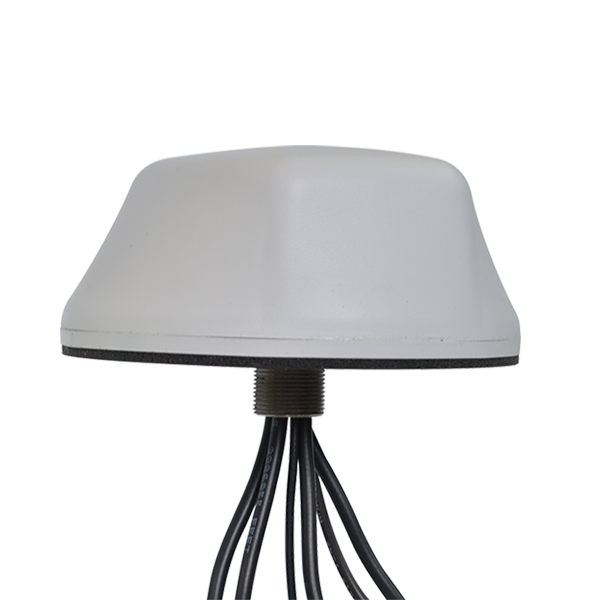

The LTMG610 is a six-element vehicle antenna that supports two wideband radio paths through 6 GHz, three dual-band Wi-Fi paths, and active GNSS from one surface-mounted housing.

Key Features

  • Extends two wideband RF paths from 694 MHz through 6 GHz.
  • Adds three independently cabled dual-band Wi-Fi connections.
  • Integrates multi-constellation GNSS for navigation and tracking.
  • Consolidates six RF connections at one compact mounting point.
  • IP67 and NEMA 4X construction protects multi-radio connectivity outdoors.
BUY ONLINE
REQUEST A QUOTE

Customization: Cable type, cable length, and connectors can be configured for specific installation requirements.

Product Description

Wideband Radio, Wi-Fi, and GNSS in One Mount.

The LTMG610 supports mixed-radio vehicle installations with two wideband RF paths, three dual-band Wi-Fi paths, and active GNSS in one six-cable surface-mounted antenna. Its consolidated layout keeps multiple radio systems and positioning within one exterior housing.

Extended Wideband Coverage: Two separately cabled elements cover 694–960 MHz, 1710–3700 MHz, and 4.9–6.0 GHz for compatible multiband radio equipment.

Three Dual-Band Wi-Fi Paths: Three additional elements each cover 2.4–2.5 and 4.9–6.0 GHz for onboard Wi-Fi connections.

Multi-Constellation GNSS: The active positioning element supports GPS, Galileo, GLONASS, QZSS, and BeiDou frequencies without another roof-mounted antenna.

Durable Multi-System Protection: IP67 and NEMA 4X ratings help keep dust and water away from internal components. UV-stable ASA and a −40 °C to +80 °C operating range protect the antenna across outdoor conditions.

The LTMG610 provides a compact connection point for vehicle platforms using wideband radios, multiple Wi-Fi paths, and GNSS together.

Ideal Applications

  • Multi-radio fleet platforms
  • Wideband vehicle radio systems
  • Vehicles with multiple Wi-Fi connections
  • Navigation and asset tracking

Example Model Configurations: LTM610-3C3C3C3C3C2C-WHT-180, LTMG610-3C3C3C3C3C2C-WHT-180, LTM610-3C3C3J3J3J2C-WHT-180

Key Specifications

Feature Specification
Technology GNSS, Wi-Fi
Frequency

Wideband: 694–960 MHz; 1710–3700 MHz; 4.9–6.0 GHz

Wi-Fi: 2.4–2.5 GHz; 4.9–6.0 GHz

GNSS: 1561, 1575, and 1602 MHz
Gain

Wideband: 3 dBi; 4 dBi; 5 dBi

Wi-Fi: 5 dBi

GNSS: 5 dBi
Configuration 3 × Wi-Fi; 1 × GNSS; 2 × Wideband
GNSS Bias 2.7–5 VDC; Current 20 mA max / 10 mA typical
Connector / Cable

Connectors: Wideband/GNSS: SMA plug; Wi-Fi: reverse-polarity SMA plug

Cable: Wideband/Wi-Fi: LL-195; GNSS: RG-174

Length: All paths: 15 ft (4.5 m)
Mounting 7/8 in (22 mm) feed-through; 3/4 in (19 mm) thread for surfaces up to 1/2 in (13 mm); 1 sq ft ground plane recommended for stud mount
Dimensions 5.50 in diameter × 2.38 in high (140 × 60.4 mm)
Material

Housing: ASA UV-stable plastic
Environmental Rating / Qualifications

Ingress: IP67; NEMA 4X

Qualifications: IEEE 1478; EN 61373; MIL-810G; TIA-329.2-C
Operating Temperature −40°C to +80°C

Models & Configurations

Model / Configuration Configuration Details
LTM610-3C3C3C3C3C2C-WHT-180 Stud / through-hole; White radome; 5× LL-195; 1× RG-174; 6× SMA Plug; All cables: 180 in (15 ft)
LTMG610-3C3C3C3C3C2C-WHT-180 Stud / through-hole; White radome; 5× LL-195; 1× RG-174; 6× SMA Plug; All cables: 180 in (15 ft)
LTM610-3C3C3J3J3J2C-WHT-180 Stud / through-hole; White radome; 5× LL-195; 1× RG-174; 3× SMA Plug; 3× Rev Pol SMA Plug; All cables: 180 in (15 ft)

Tech Documents & Resources

ltm610-spec-sheet

File size: 297.34 KB
Created: 10-06-2020
Updated: 10-06-2020
Hits: 1834
Download Preview

LTM610 Series Radiation Pattern

File size: 139.00 KB
Created: 22-05-2020
Updated: 22-05-2020
Hits: 1636
Download Preview
